• Model NO.：JTA15
• Type：Spiral Bevel Gearbox
• Structures：Spiral Bevel Gears, Input Shaft and Output Shaft..
• Max. Input Power：1.11kw
• Max. Torque：7.64nm
• Gear Ratios：1:1, 2:1
• Shafts Configurations：2 Way, 3 Way
• Drive Shafts Diameter：15mm
• Max. Input and Output Speed：1500rpm
• High Efficiency：95%-98%
• Shafts Rotation Directions：Forward and Reverse Direction
• Assembly Drawing Type：3D Model, 2D Drawing
• Warranty Period：1 Year
• Transport Package：Standard Exporting Plywood Cases
• Trademark：JACTON
• Origin：Guangdong, China
• HS Code：8483409000
• Production Capacity：6200 PCS,Month

Basic Info.

Model NO. JTA15 Type Spiral Bevel Gearbox Structures Spiral Bevel Gears, Input Shaft and Output Shaft.. Max. Input Power 1.11kw Max. Torque 7.64nm Gear Ratios 1:1, 2:1 Shafts Configurations 2 Way, 3 Way Drive Shafts Diameter 15mm Max. Input and Output Speed 1500rpm High Efficiency 95%-98% Shafts Rotation Directions Forward and Reverse Direction Assembly Drawing Type 3D Model, 2D Drawing Warranty Period 1 Year Transport Package Standard Exporting Plywood Cases Trademark JACTON Origin Guangdong, China HS Code 8483409000 Production Capacity 6200 PCS/Month

Product Description

Jacton Aluminum JTA15 Right Angle Bevel Gear Reducer (also known as a aluminum miniature spiral bevel gears, a aluminum miniature spiral bevel gearbox, a aluminum body bevel gears, or a aluminum miter gears) with 2 way, 2 way reverse, 3 way, 3 way reverse configurations as standard.

Aluminum JTA15 Right Angle Bevel Gear Reducer Features:
1. Maximum allowable torque 7.64 Nm, Maximum allowable power 1.11 kw, maximum allowable input or output speed 1500 rpm.
2. Bevel gears ratios 1:1 and  2:1. Transmission efficiency up to 94-98%.
3. Used in pairs high-precision spiral bevel gears to transmit rotary motion, mechanical power and torque.
4. Can be mounted in all directions, and mounting is also easy.
5. Solid input shaft and solid output shaft as standard.
6. 2 way, 2 way reverse, 3 way, 3 way reverse configurations as standard.
7. 6 types drive shaft arrangements and rotating directions. Note: drive shafts can be rotated in both clockwise and anti-clockwise rotation directions.
8. Mouting positions: horizontal mounting, overhung mounting, wall mounting.
9. Lubrication depends on output speed. Standard is grease lubrication that is maintenance free.
10. High efficiency, high transmission capacity, low backlash, noiseless operation, low running temperature and long service life.




Aluminum JTA15 Right Angle Bevel Gear Reducer main components with international standard materials: The main components are Alloy steel case hardened spiral bevel gears for high efficiency, quiet operation, high rigidity, wear resistance and long service life. Alloy steel input shaft and output shafts are mounted on precision ball bearings for smooth operation. Custom high corrosion resistant stainless steel (SUS304) is used for the shaft material. Housings are made of lightweight aluminum alloy, compact, lightweight, and good-looking.

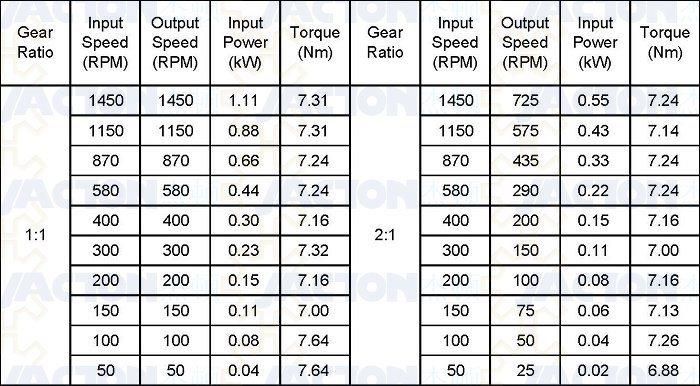

Aluminum JTA15 Right Angle Bevel Gear Reducer Specifications
 The specifications of Aluminum JTA15 Right Angle Bevel Gear Reducer include bevel gears ratio, input speed, output speed, power rating, and working torque.

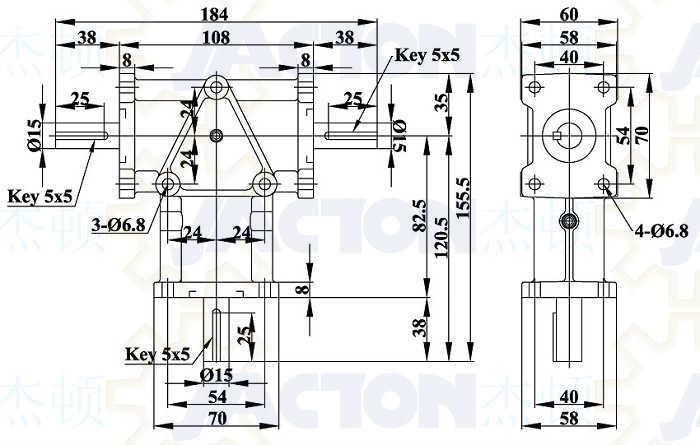

Aluminum JTA15 Right Angle Bevel Gear Reducer Dimension Drawing
Find out Aluminum JTA15 Right Angle Bevel Gear Reducer front view, side view and top view assembly drawings. About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact us directly.

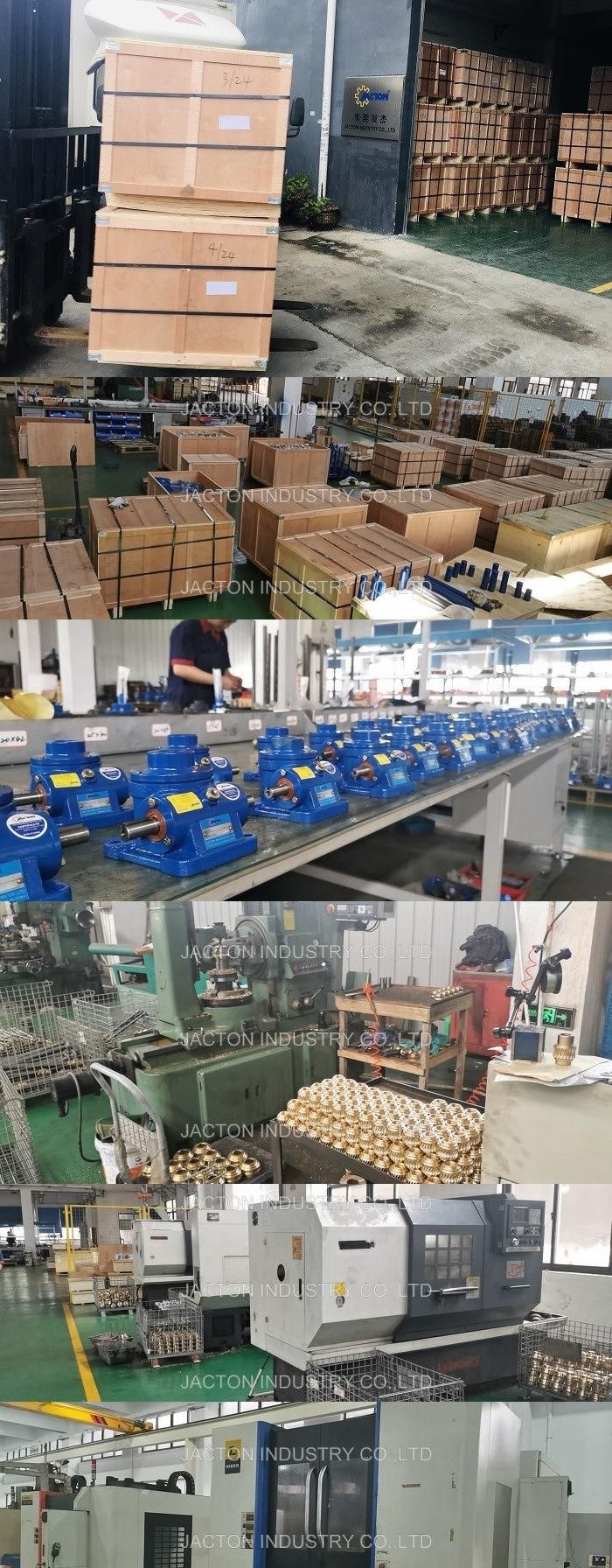

Company Profiles
JACTON Industry Co.,Ltd (VAT No.: 9144190007026567X3, registered Capital 500000CNY) is a leading manufacturer and supplier of Screw Jacks (Mechanical Actuators), Bevel Gearboxes, Lifting Systems, Electric Linear Actuators, Gearmotors and Speed Reducers, Others Linear Motion and Power Transmission Products in China. We are located in Chang An, Dong guan, Guang dong in China. We are an audited professional manufacturer and supplier by SGS (Serial NO.: QIP-ASI192186) and BV (Serial NO.: MIC-ASR202862) organizations. We have a strict quality system, with senior engineers, experienced skilled workers and practiced sales teams, and consistently provide the customers with the best engineered solution for precision linear actuation, power transmission and mechanical jacking systems. Jacton Industries guarantees quality, reliability, performance and value for today's demanding industrial applications.

Company Advantages
* One of the biggest orders with 1750 units screw lift jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.

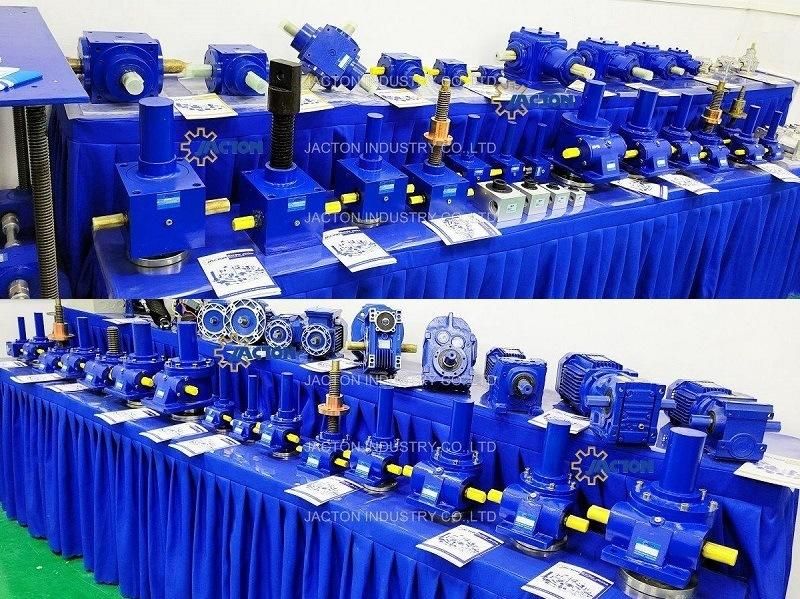

Products List
