Right Angle Big Output Torque Gear  Transmission  Planetary Speed Reducer

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Machinery, Marine, Agricultural Machinery, Industry
  • Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened
  • Installation：Foot Mounted
  • Step：Three-Step

Base Info

  • Model NO.：MN200-810
  • Type：Circular Gear
  • Diameter：up to 885mm
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cut Gear
  • Toothed Portion Shape：Spur Gear
  • Advantage：Equivalent to Brevini Planetary Gear Reducer
  • Transport Package：Plywooe Case or Steel Cage
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Basic Info.

Model NO. MN200-810 Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Equivalent to Brevini Planetary Gear Reducer Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

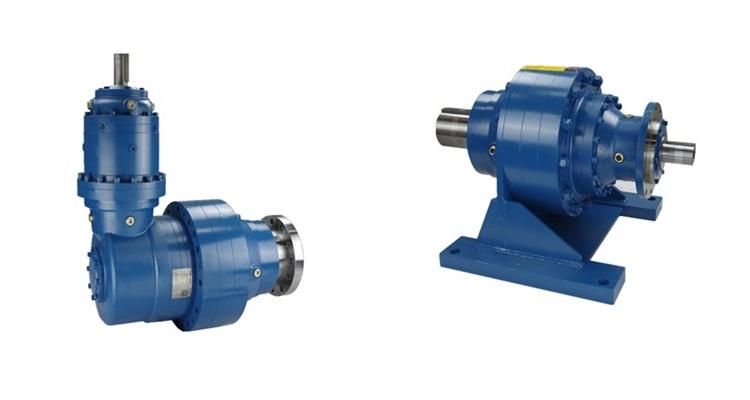

Right Angle Big Output Torque Gear Transmission  Planetary Speed Reducer


Characteristic of Brevini Planetary Gear Reducer :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing


N series planetary gearbox torque sheet with models

Gear unit size200201240241280281353/354355400401
Normal output torque
T2N[Nm]		15002000350040004300730013000160002000023000
Gear unit size428429445446510542543695810885
Normal output torque
T2N[Nm]		260003000032000430006300075000100000150000300000420000

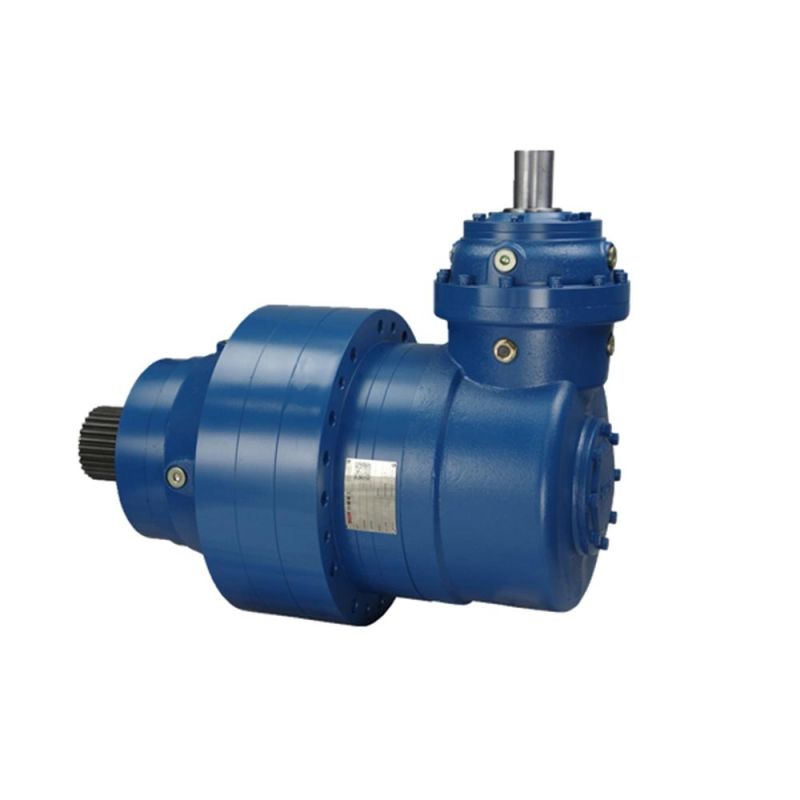

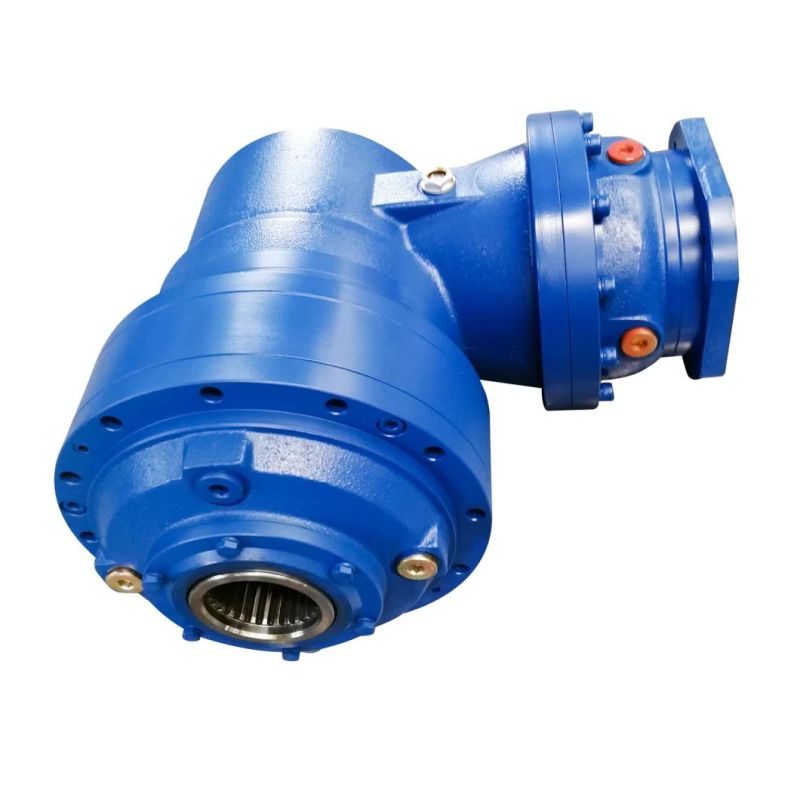

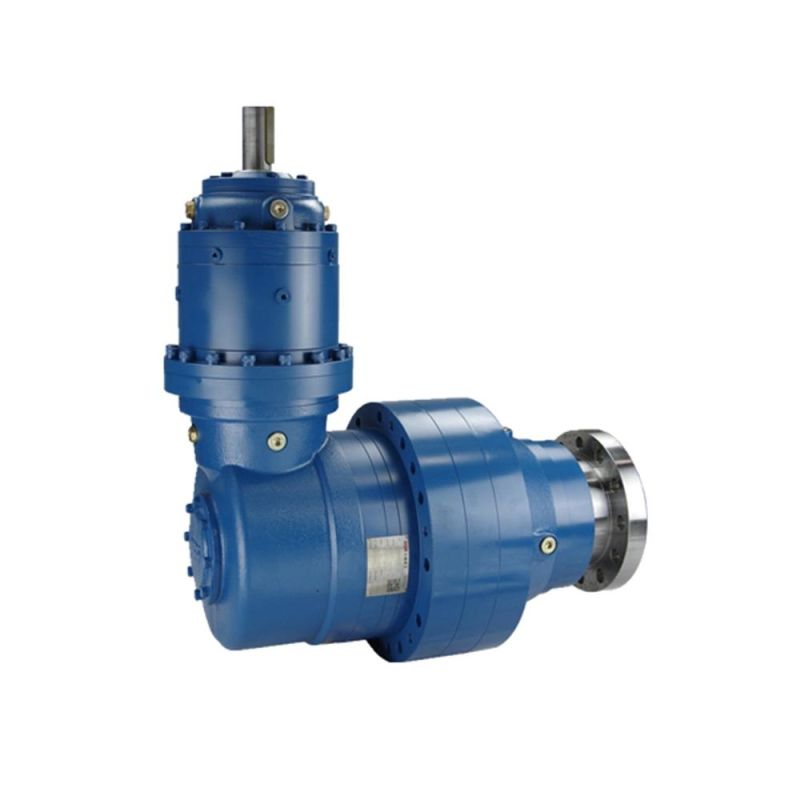

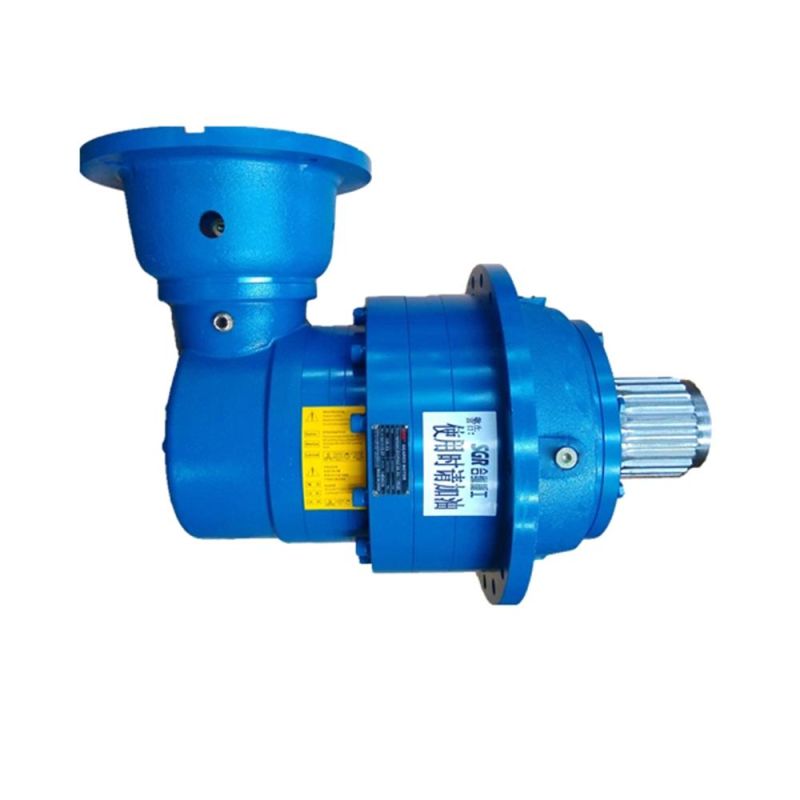

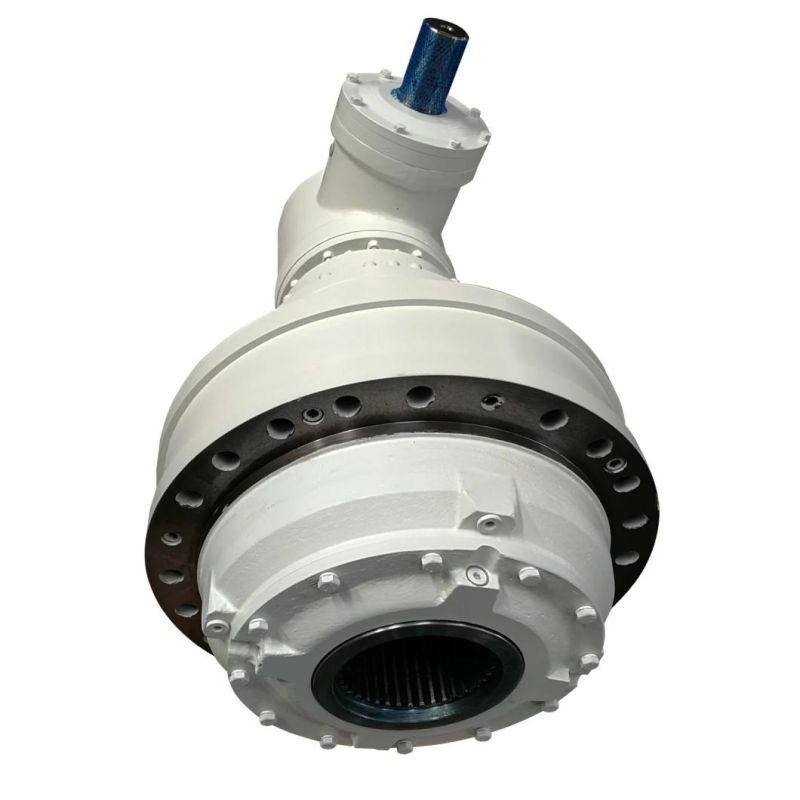

Right Angle Big Output Torque Gear  Transmission  Planetary Speed Reducer
