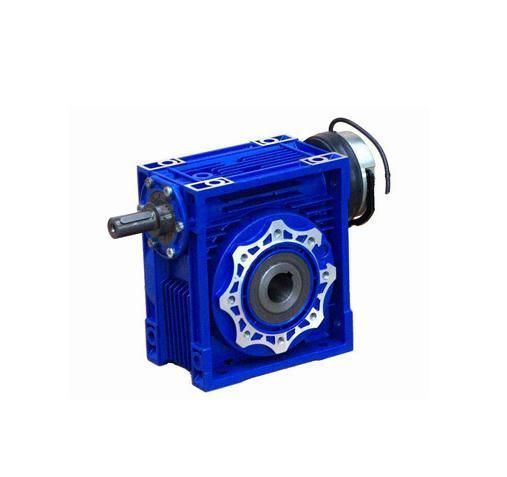

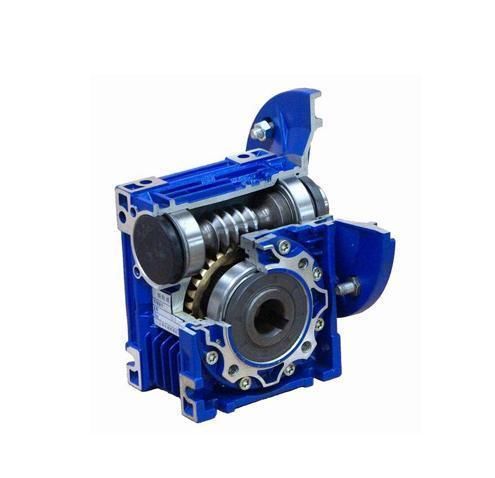

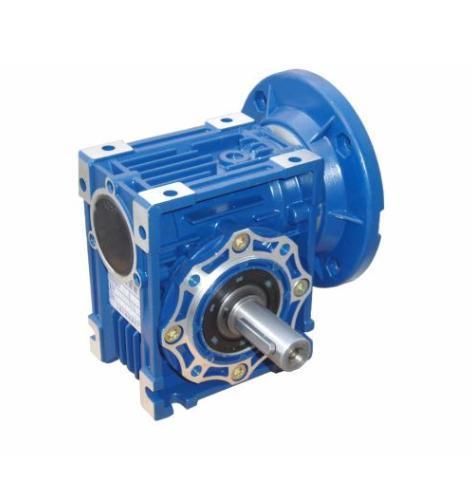

RV Combination Series Worm Gear Box Reducer
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Type：Planetary Gear Box
- Transport Package：Wooden Case
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Type Planetary Gear Box Transport Package Wooden Case HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
RV Combination Series Worm Gear Box ReducerTechnology date:
1..Ratio range: 7.5-100
2. Input power: 0.04-15KW
3. Permit torque rang: 10-1500N.m
4. Structure mode: Foot-mounted, input shaft, with input flange; Additional single (double) output shaft
Characteristic:
1. Compact mechanical structure, light and handy volume, small-scale and high efficient
2. Good temp exchange capability & reliability
3. Easy mounting, link freely, easy verification
4. Wide transmission ratio & strong torque
5. Smoothly transmission, little noise & vibration, widely used
Characteristic:
1. Good available capability & reliability
2. Good temperature exchange capability & high strengthens
3. Carburized and grinded teeth
4. Good fabricate capability, can be fabricated with other reducer to realize low-speed transmission
| ratio range | 5:1 to 264:1 |
| input power | 0.18kw to 160kw |
| voltage | 220V/380V/400V/440V |
| frequency | 50Hz / 60Hz |
| output speed | 0.09rpm to 382rpm |
