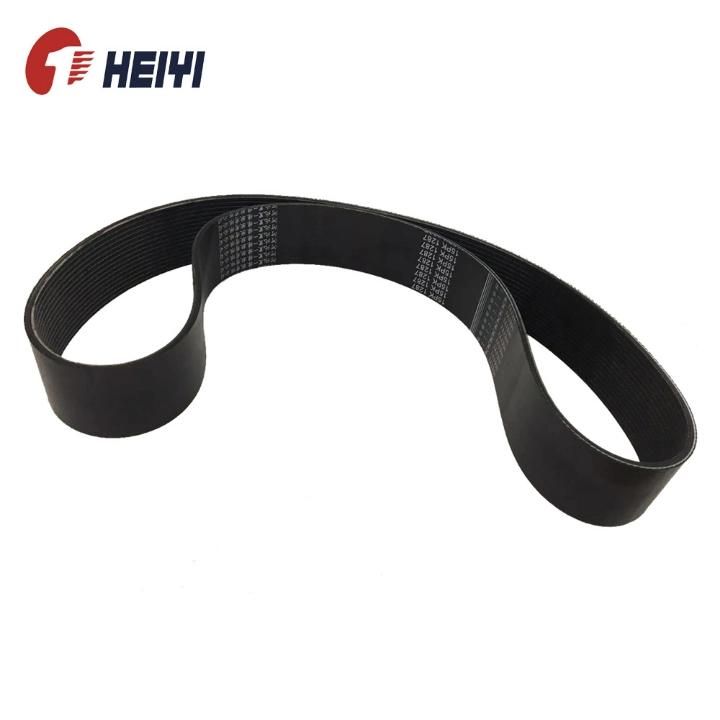

8pk1160 Multiple V-Ribbed Belt 1003969

He Bei Hei Yi Rubber Co., Ltd.

Standard or Nonstandard：Standard
Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
Feature：Anti-Static, Cold-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance
Tensile Strength：Strong
Material：Rubber
Type：V Belt

Base Info

Model NO.：8PK1160
OEM：Available
Range：500-5000mm
Warranty：150000kms
Certification：ISO9001, Ts16949
Body Material：Rubber
Component：Shock Reducing Rubber
Transport Package：Plastic Bag,Carton
Specification：EPDM,CR,NR
Trademark：HEIYI
Origin：China
HS Code：40103900
Production Capacity：1000000pieces Per Month

Description

Basic Info.

Model NO. 8PK1160 OEM Available Range 500-5000mm Warranty 150000kms Certification ISO9001, Ts16949 Body Material Rubber Component Shock Reducing Rubber Transport Package Plastic Bag/Carton Specification EPDM/CR/NR Trademark HEIYI Origin China HS Code 40103900 Production Capacity 1000000pieces Per Month

Product Description

Product Details

Type and Size of V Ribbed Belt/Poly V Belt

Type	Rib Section	Angle of Rib	Belt Width	Belt Thickness	Rib Number	Length Range
3PK	3.56	40	10	4.8	3	500-5000mm
4PK	3.56	40	13.6	4.8	4	500-5000mm
5PK	3.56	40	17	4.8	5	500-5000mm
6PK	3.56	40	20.7	4.8	6	500-5000mm
7PK	3.56	40	24.3	4.8	7	500-5000mm
8PK	3.56	40	27.8	4.8	8	500-5000mm
9PK	3.56	40	31.4	4.8	9	500-5000mm
10PK	3.56	40	35	4.8	10	500-5000mm
12PK	3.56	40	42.5	4.8	12	500-5000mm
15PK	3.56	40	53	4.8	15	500-5000mm

Structure of V Belt

	Function	Material
Tension Member	The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers	Polyester/Aramid Fiber
Rubber Ribs	Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley	EPDM
Backing Material	Bias ply type fabric backing resists cracking and provides abrasion resistance	EPDM
Insulation Material	oil and heat resistant rubber is used to bond the tension member to the rest of the belt	EPDM
