Rubber Timing Belt T10 with Cast Lintex 2mm-10mm

Shenzhen Jiaheng Industrial Belting Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
  • Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：Rubber
  • Type：Toothed Belt

Base Info

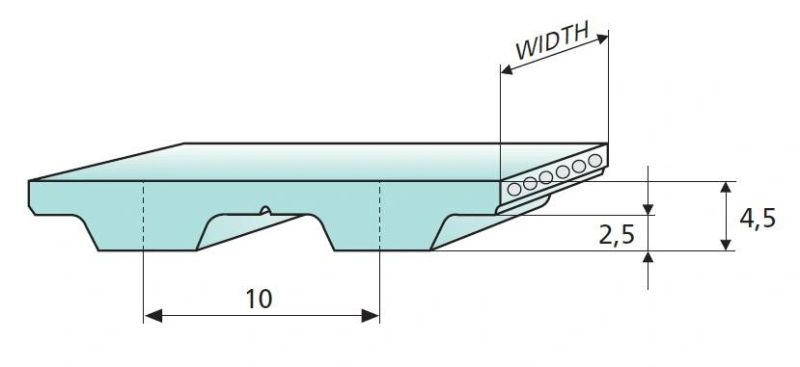

  • Model NO.：T10
  • Pitch：10mm
  • Color：Black
  • Cord：High Quality Glass Fibre
  • Max Width：450mm
  • Lintex Thickness：2mm-10mm
  • Top Thickness：4.5mm
  • Teeth Thickness：2.5mm
  • Red Rubber：Lintex
  • Lintex Hardness：40shorea-50shorea
  • Model：T10
  • Property：Wear Resistant
  • Endless Type：Truly Endless
  • Rubber Type：Cr
  • Applications：Package
  • Lintex Coating：Cast,Moulded
  • Transport Package：Export Standard
  • Specification：T10
  • Trademark：UNI Belting
  • Origin：Shanghai China
  • HS Code：4010390000
  • Production Capacity：20000000 Meters

Description

Basic Info.

Model NO. T10 Pitch 10mm Color Black Cord High Quality Glass Fibre Max Width 450mm Lintex Thickness 2mm-10mm Top Thickness 4.5mm Teeth Thickness 2.5mm Red Rubber Lintex Lintex Hardness 40shorea-50shorea Model T10 Property Wear Resistant Endless Type Truly Endless Rubber Type Cr Applications Package Lintex Coating Cast/Moulded Transport Package Export Standard Specification T10 Trademark UNI Belting Origin Shanghai China HS Code 4010390000 Production Capacity 20000000 Meters

Product Description

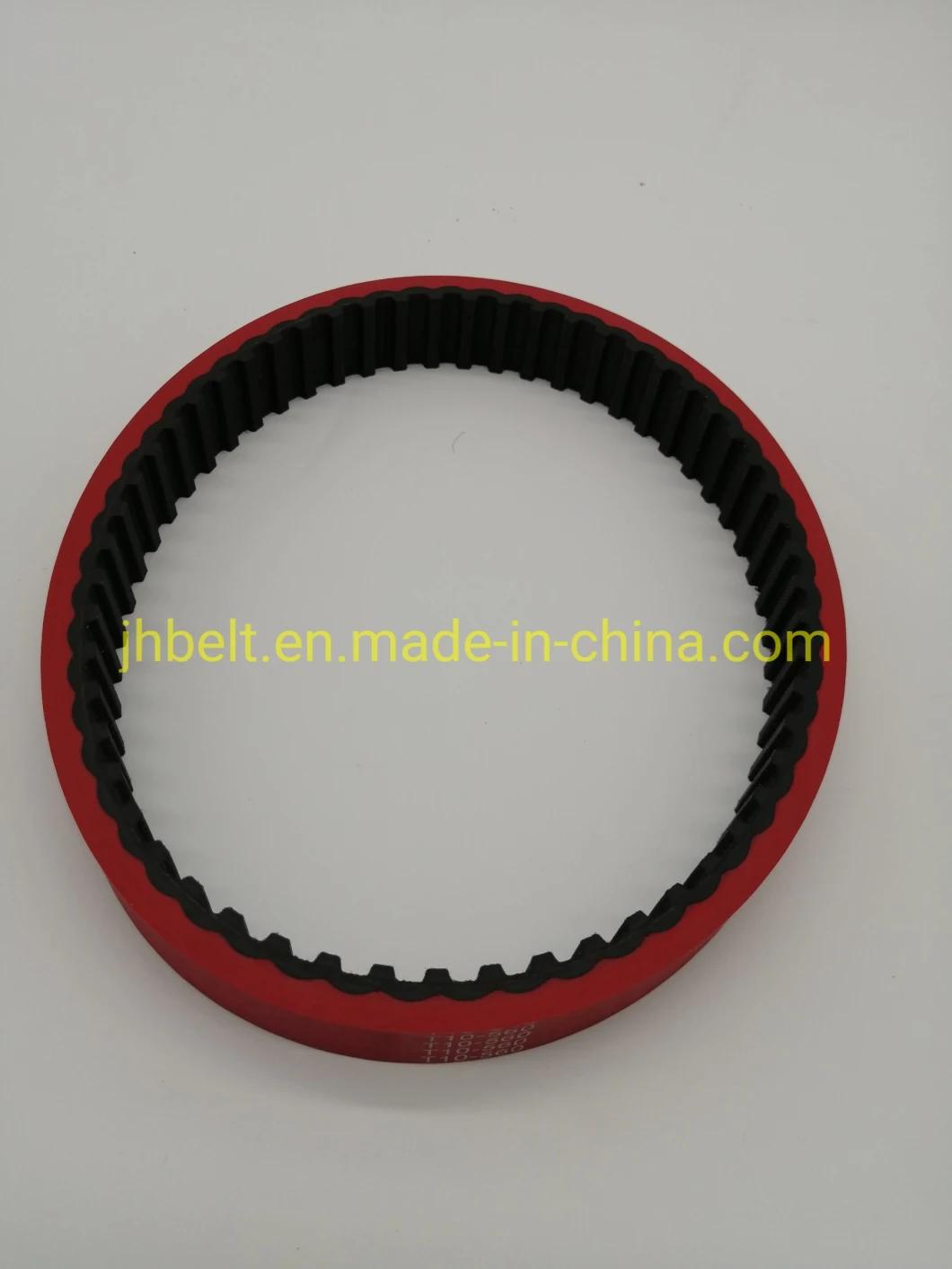

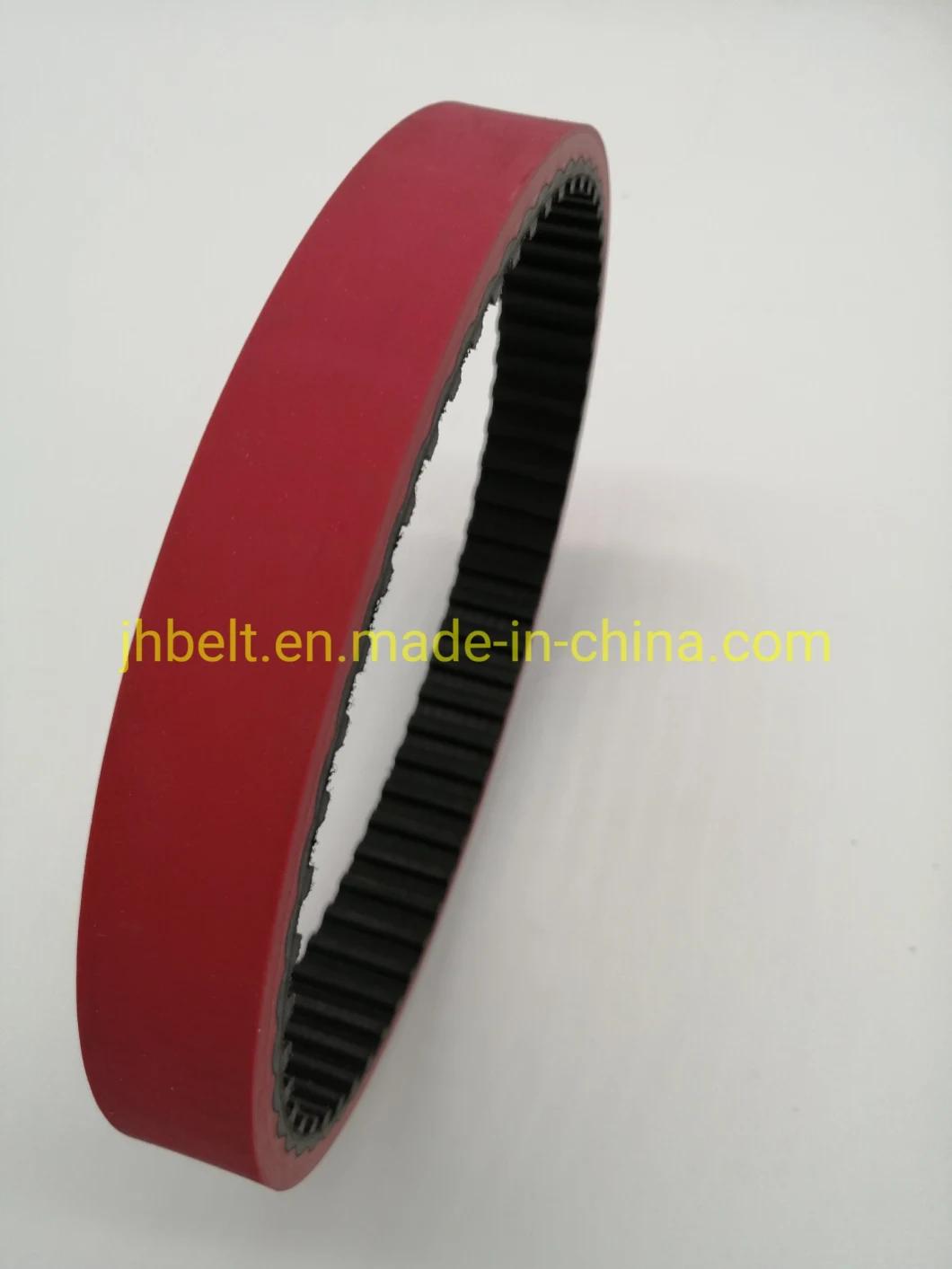

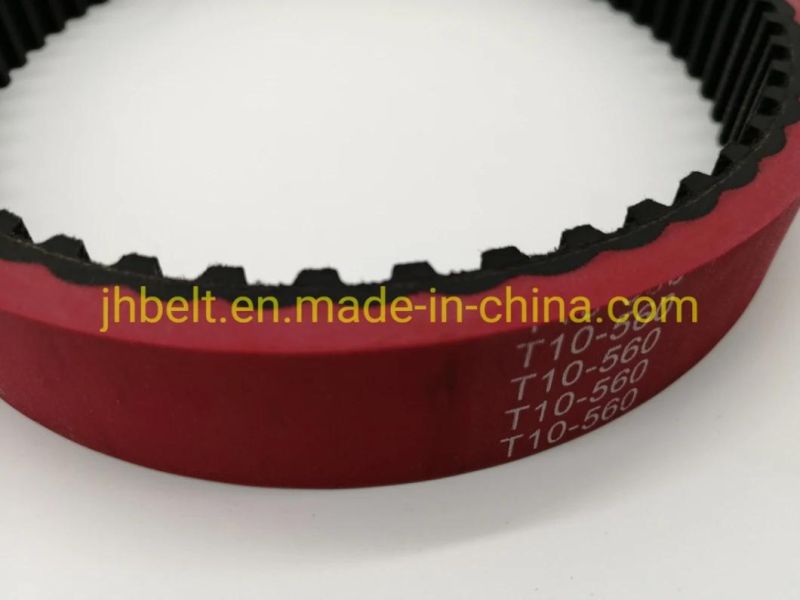

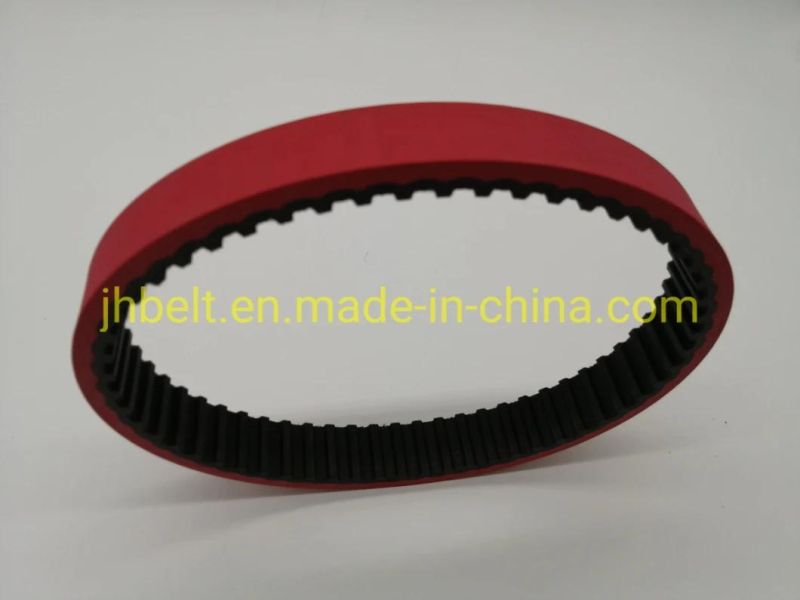

T10 timing belt with cast covering

Rubber Timing Belt T10 with Cast Lintex 2mm-10mm

Coating Materials: Cast Lintex
Hardness: Natural rubber approx.50 ShoreA
Color: Red
Referance thickneses:4.0mm
Holes number:34 with skived teeth 26mm in the center
Working temperature:-20 ºC to +80 ºC
Chemical Resistance: Resistant against oil,water,hard-wearing

Model: T10
  • Pitch:10 mm
  • Cord:High quality fibre
  • Max production width:450mm
Rubber Timing Belt T10 with Cast Lintex 2mm-10mm
Rubber Timing Belt T10 with Cast Lintex 2mm-10mm
Rubber Timing Belt T10 with Cast Lintex 2mm-10mm
Rubber Timing Belt T10 with Cast Lintex 2mm-10mm
Rubber Timing Belt T10 with Cast Lintex 2mm-10mm


Rubber Timing Belt T10 with Cast Lintex 2mm-10mm

·   Based on all types of Rubber Timing belts.

·   40 Shore A to 50 Shore A Lintex rubber coatings.

·   All coatings are produced cast (moulded) with timing belt without joint and glue.

·   Engineered vacuum holes and slots,Skived Teeth with customers requirements.

·   Different thickness of covering are available.
