Hydraulic Motor/Rotary Motor Assembly/Swing Motor Assembly, (GS21)

SHANDONG CCHC HYDRAULICS CO., LTD.

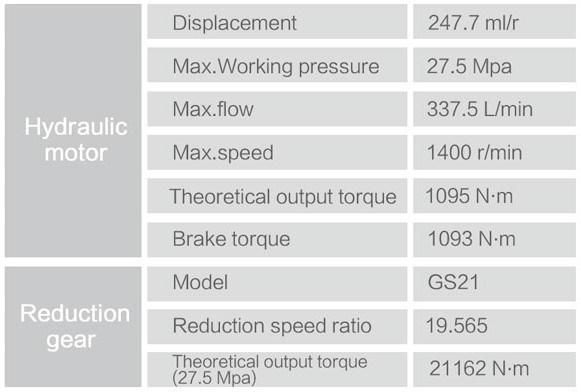

  • Type：Swing Moter Assembly
  • Max Working Pressure：27.5 MPa
  • Max Flow：337.5 L,Min
  • Displacement：247.7 Ml,R
  • Transport Package：Export Standard Package
  • Trademark：CCHC

Base Info

  • Model NO.：MA250W(GS21)
  • Origin：Shandong China
  • HS Code：8430699000

Description

Basic Info.

Model NO. MA250W(GS21) Origin Shandong China HS Code 8430699000

Product Description

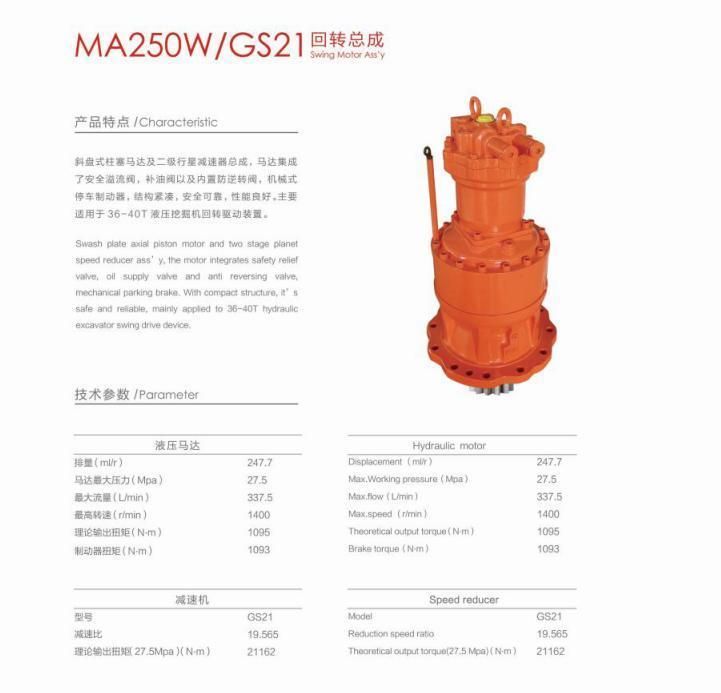

This model is mainly applied to 36-40T hydraulic excavator rotary drive device. The motor is composed of swash plate axial piston motor and two-stage planet gear speed reducer. The motor is integrated with safety relief valve, oil supplementary valve, anti-reverse valve and built-in mechanical stop brake, which is safe and reliable and has good performance.
The motor is composed of swash plate axial piston motor and two-stage planet gear speed reducer assembly. The motor is integrated with safety relief valve, oil supplementary valve, anti-reverse valve and built-in mechanical stop brake, which is safe and reliable and has good performance.
