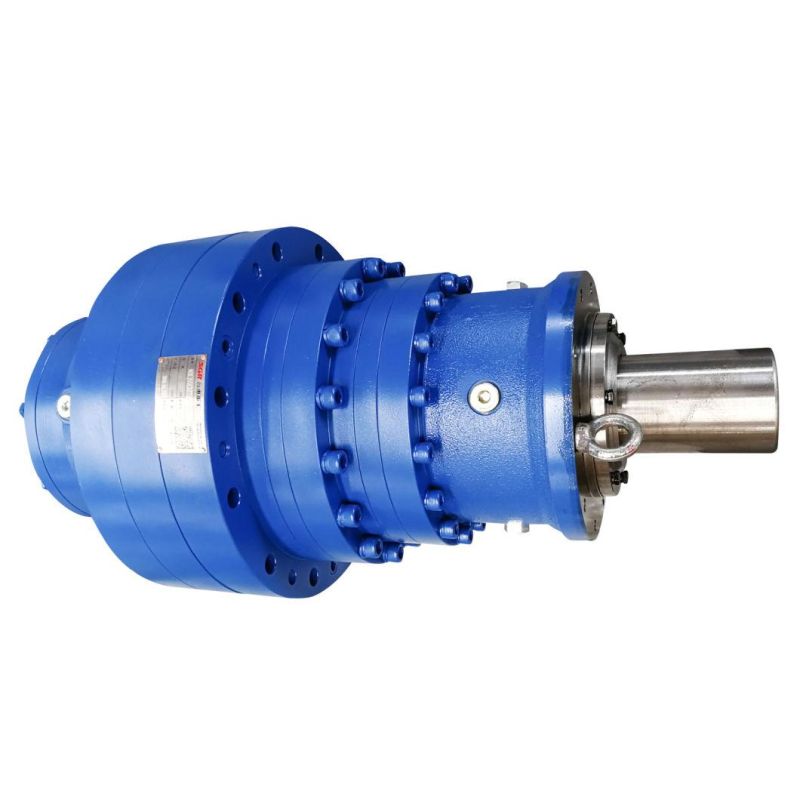

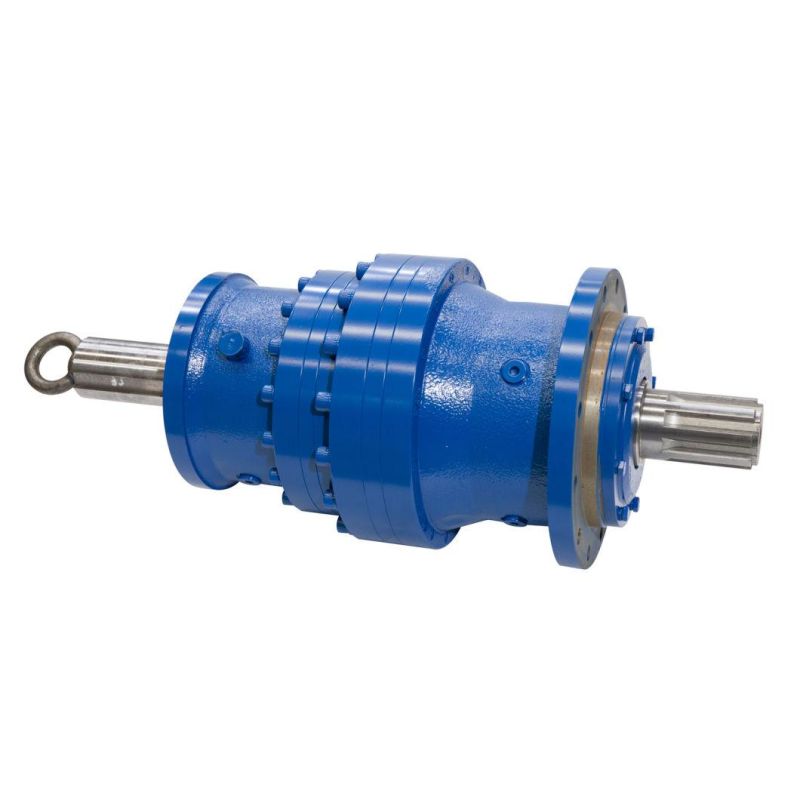

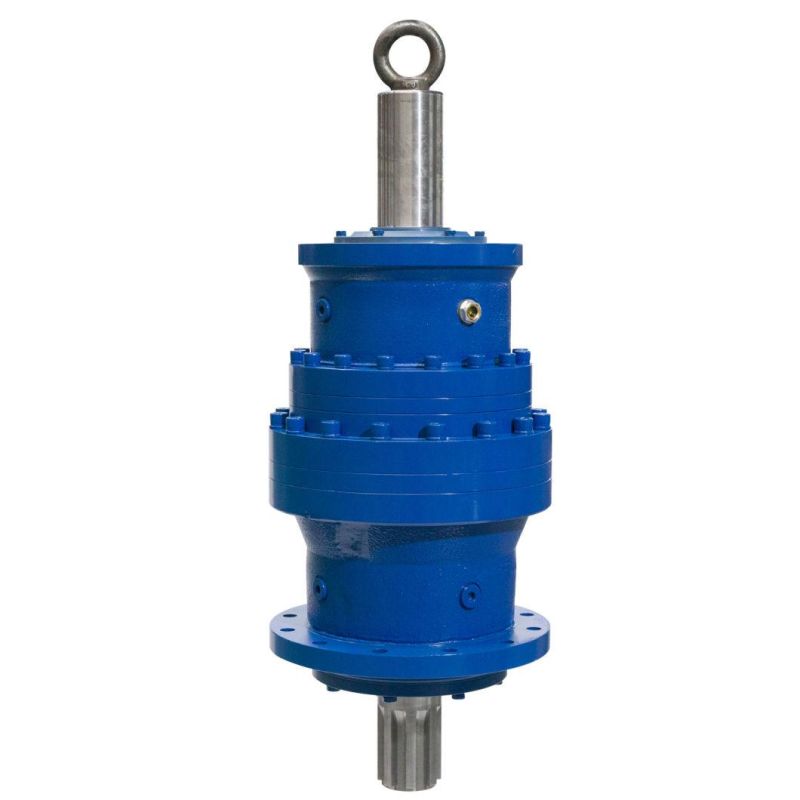

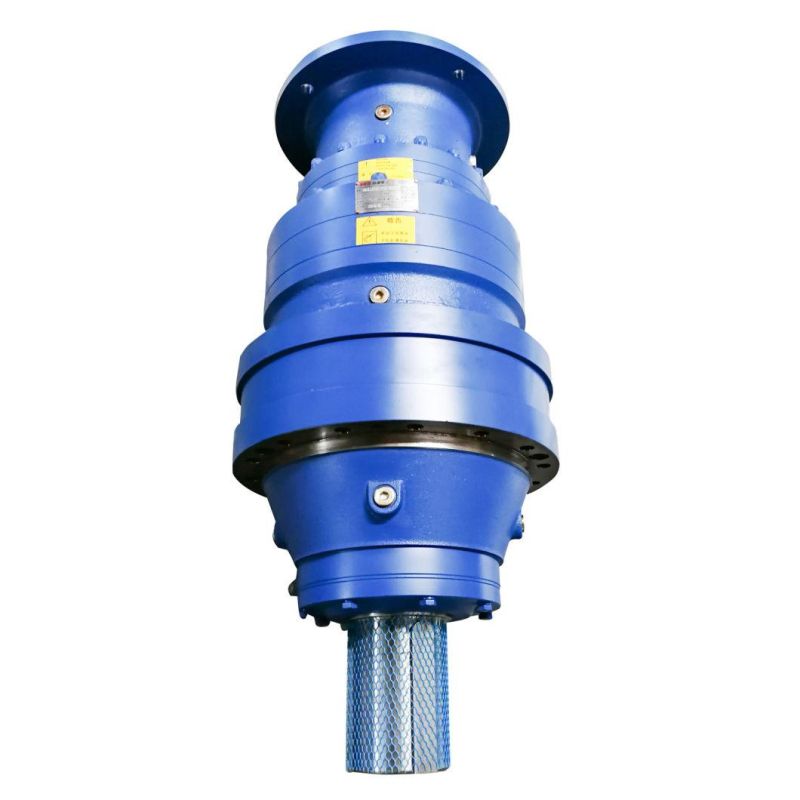

Mn Series Planetary Gear Motor Gear Box Transmission

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Agricultural Machinery, Industry
  • Function：Speed Changing, Speed Reduction
  • Layout：Coaxial
  • Hardness：Hardened
  • Installation：Vertical Type
  • Step：Three-Step

Base Info

  • Model NO.：MN,N
  • Type：Circular Gear
  • Material：Bakelite
  • Manipulate Way：Forced Manipulation
  • Manufacturing Method：Rolling Gear
  • Toothed Portion Shape：Spur Gear
  • Changes Way：Mixed
  • Warranty：One Year
  • Input：Flange,Solid Shaft
  • Transport Package：PLYWOOD CASE, STELL CAGE
  • Specification：MN,N
  • Trademark：SGR
  • Origin：CHINA
  • HS Code：8483409000
  • Production Capacity：400PCS,MONTH

Description

InputIEC FlangeMechanical rating (n1 = 1500 min-1)up to 200kWElectric motorGear ratios12.67 ... 50.9Solid input shaft with or without fan cooling - inch or metric dims.Gear unit versionsIn lineApplicable AC motorsIntegral motors and brake motors IEC-normalized motors and brake motorsMounting typeFootSingle and dual speed motorsFlange mountedMain brake featuresDC and AC supplyTorque-armFaster brake reaction through electronically controlled rectifierOutput shaft optionsSolid shaftMain motor optionsThermistors and thermostat sensorsSplined shaftIndependent forced coolingFemale splined shaftLine driver and push-pull incremental encoderHollow shaft with shrink disc  Mn Series Planetary Gear Motor Gear Box Transmission
