High-Intensity and High Precision and Wear Resistance China Driving Chain and ISO/ANSI Conveyor Chain
Qingdao Star Machine Technology Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Surface Treatment：Polishing
- Structure：Combined Chain
- Material：Alloy
- Type：Customized
Base Info
- Model NO.：standard and customized
- Transport Package：According to Client Requests
- Specification：Customized
- Trademark：SMCC
- Origin：China
- HS Code：7315119000
- Production Capacity：700000meters Per Year
Description
Weight per meter q kg/mLmax mm Lcmax mm P12.7F15 12.7 8.51 7.3 4.45 16.8 19.2 7 1.6 6.0/1349 6.6 0.53 P15.875 15.875 12.7 11 3.66 18.7 19.9 8 0.6 3.0/674 3.3 0.8 *P19.05 19.05 12.07 12.5 7.5 31.6 33.6 20 4.15/3.25 50.0/11240 55 2.56 P19.05F1 19.05 11.91 9.9 5.72 26 28.6 17 3 30.0/6744 33 1.84 P19.05F2 19.05 14.25 13 7.8 33.2 36.2 19.4 4.00/3.70 40.0/8992 44 2.92 P19.05F5 19.05 14.2 12.7 7.1 29.5 31.7 19 3.25 30.0/6744 33 2.47 P19.05F6 19.05 14.24 12.72 7.8 31.5 31.5 18.8 4.00/3.10 58.8/13218 64.7 2.67 P20F1 20 12 16 6 32.1 34.5 18 3 35.5/7986 39.1 2.11 P22 22 14 14 8 37 40 40 5.00/4.00 40.0/8992 44 4.1 P22.23F1 22.23 14 12.2 6 27.5 29.5 17.78 2.8 30.0/6744 33 1.8 P25F4 25 15 18 7 34.5 37.5 21 3 45.0/10116 49.5 2.55 P25F5 25 15.88 17.02 8.28 36.1 - 21 4.15/3.10 60.0/13488 69 2.84 P25F7 25 11.91 13 5.94 26.8 29.2 20.5 2.42 30.0/6744 33 1.85 P25.4F5 25.4 14 12.7 7.5 30 33 22.5 3.50/3.00 50.0/11240 55 2.47 P25.4F8 25.4 12.7 12.7 7 28.5 30.5 20.8 3 45.0/10116 49.5 1.89 P25.4F9 25.4 14 12.7 7 28.5 30.5 19.7 3 45.0/10116 49.5 1.88 P25.4F10 25.4 12 11 5.72 25.8 27.5 17 2.6 22.4/5035 25 1.66 P26 26 15.88 16.15 7.92 33.5 36.8 22 3.25 50.0/11240 55 2.87 P30 30 15.88 17.02 8.28 35.6 38.7 20 3.50/3.00 60.0/13488 66 2.35 P30F1 30 15.88 9.7 8.28 24.8 65.5 22 3.10/2.50 45.0/10116 49.5 1.87 P30F7 30 15.88 20 8.28 39 42.5 21.5 4.00/3.25 40.0/8992 44 2.72 P30F10 30 16 20.1 8.28 39 42.7 21.2 4.00/3.40 60.0/13488 69 2.72 P31.75F12 31.75 19.05 13 7.92 29.6 33.4 18 3 33.8/7598 37 2.2 P35F4 35 18 18 8.28 35.4 38.3 24 3 60.0/13488 66 2.51 P35F7 35 22 22 11 45 50.3 31 4.5 84.0/18883 92.4 4.82 P38.1F11 38.1 25.4 21.5 12 40 43.9 35 3 70.0/15736 77 5.18 P38.1F17 38.1 25.4 23 12 41.5 46 35 3 70.0/15736 77 5.25 P38.1F19 38.1 25.4 22 12 40 43.9 35 3 70.0/15736 77 5.18 P40F9 40 18 22 12 47.8 52.5 35 5 120.0/26977 132 5.9 P41F1 41 19.05 26.9 10.19 44.1 48.5 27 3 50.0/11240 55 2.87 P41.3F4 41.3 16 12 9 26.3 29.8 22 2 45.0/10116 49.5 1.72 P41.3F6 41.3 16 10 9 27 30 21 3 40.0/8992 44 1.8 P41.3F11 41.3 16 10 9 26 29.5 21 3 40.0/8992 44 1.79 P41.3F12 41.3 16 7.8 9 21 24 21 2.03 26.7/6002 29.4 1.29 P41.3F13 41.3 16 16 9 33 36.5 21 3 40.0/8992 44 2 P41.3F17 41.3 16 16 9 33 36.5 30 3 40.0/8992 44 2.84 P41.4F2 41.4 15.88 20.4 9 38 41.5 26 3 50.0/11240 55 2.29 *P41.5F2 41.5 19 20.1 9 47.9 - 20 5 55.0/12364 60.5 3.33 P42 42.01 22.23 25.4 11.1 - 55.25 28.5 4.8 100.0/22496 110 5.36 P42F1 42.01 22.23 25.4 11.1 50.3 54.3 28.5 4.8 90.0/20232 99 5.26 P42F9 42.01 22.35 25.4 11.1 - 57.9 28.5 4.8 90.0/20232 100 5.78 P42F10 42.01 22.23 25.4 11.1 - 55.25 28.5 4.8 99.0/22256 110 5.5 P44F1 44 25.3 25 15.9 86 88 38 10 250.0/56202 275 8.77 P44.45 44.45 22.23 12.57 5.94 25.9 27.7 18 2.42 31.8/7148 35 1.73 P44.45F1 44.45 22.23 24.7 11.1 62 65.5 32 6.7 110.0/24728 121 7.3 P44.45F18 44.45 25.4 45.22 12.7 74.4 77.4 39.7 5.6 172.4/38756 189.6 9.06 P44.6F1 44.6 25.4 25.22 12.7 54.4 59 41 5.6 169.0/37991 185.9 7.7 P45F4 45 19.05 19.56 9.53 41.2 45.5 30 4 75.0/16860 82.5 3.93 P49.8 49.8 28.58 31.55 14.27 64.8 69.6 47.8 6.4 222.4/49997 244.6 10.39 P50 50 25.4 25.4 14.63 54.3 57.8 40 5 100/22480 110 7.5 P50F1 50 29.21 30.99 17.81 - 66 42.2 7 210.0/47726 231 9.68 P50F2 50 31 14.5 13.2 33.3 37 25 3.1 44.0/9891 48.4 3.47 P50F7 50 24 20 12 51.2 55.5 30 6 49.0/11023 54 5.65 P50F11 50 19.05 19.56 10.19 41.3 45 28 4.50/4.00 95.5/21371 104.5 3.6 P50F14 50 24 20 12 43 47.5 30 4 65.0/14612 71.5 5.08 P50F15 50 28.58 31.55 14.27 64.8 69.6 47.8 6.4 222.4/49997 244.6 10.38 P50F3 50 31 15 9.53 35.4 38.65 25 4 83.0/18659 91.3 4.12 P50F21 50 25.4 25.4 14.63 54 58 40 5 120.0/26977 132 7.35 P50F26 50 25 15.75 7.92 32.7 36.5 22 3.3 56.7/12746 62 2.5 P50F31 50 30 15 12 40.3 44.5 30 4.5 36.0/8093 39.6 4.89 *P50F36 50 19.95 25 13.92 52.8 57 40 5 99.0/22255 108.9 6.45 P50F49 50 25.4 25.4 14.63 53.4 57.8 50 5 100.0/22480 110 12.6 *P50F58 50 20 25.4 14.63 54 58 40 5 120.0/26976 132 6.4 P50.8F1 50.8 30 10 11.7 30.2 34.5 26.04 4 85.0/19108 93.5 3.6 P50.8F12 50.8 30 10 11.6 28 - 26.2 3.50/3.00 70.0/15736 77 2.82 P50.8F16 50.8 35 12 14.5 40 45.5 30 5 70.0/15736 77 5.36 P50.8F31 50.8 31.75 12.7 9.53 31 33.5 25.4 3.3 60.0/13488 66 3.35 *P50.8F38-B 50.8 25.4 36.5 15.9 80 - 44.45 8 190.0/42712 209 4.14 *P50.8F42 50.8 15.8 17.6 10 40 44 26 4 60.0/13488 66 2.96 P50.8F50 50.8 25.4 25.4 14 57.6 63.4 40 6.4 200.0/44960 220 8.1 P50.8F56 50.8 30 10 11.6 30 34.2 26.2 4.50/3.00 83.0/18658 91.3 3.07 *P50.8F59-B 50.8 18.4 25.4 14 58.2 64.7 40 6.4 195.0/43836 214.5 7.5 P54F2 54 19.05 19.56 10.19 41.3 45 26.4 4.50/3.50 95.0/21356 104.5 3.15 P58 58.34 18 22.23 9.9 47.6 - 25 5 80.0/17984 88 3.86 P58F1 58.34 18 22.23 9.9 51.6 - 30 6 84.0/18883 92.4 5.16 P60F4 60 16.87 19.81 7.19 35 38 19.3 2.8 39.1/8790 43 1.61 P63F20 63 11.91 12.57 5.94 28.2 31 20 3 31.1/6991 34.2 2.43 P63.5 63.5 19.05 18.9 9.53 44.6 47.2 28.6 5 86.7/19704 95.4 3.77 P63.5F7 63.5 25 24 10 47 50.7 35 4 90.0/20232 99 4.35 P63.5F12 63.5 31.8 15.25 14 38 39.5 26 4 45.0/10116 49.5 4.03 P63.5F22 63.5 31.8 15.25 14 38 42.5 26 4 45.0/10116 49.5 4.03 P63.5F36 63.5 19.05 19.56 10.19 36.5 37.7 27 3 56.7/12746 62.4 2.6 P66.27F1 66.27 22.22 28.57 11.11 64.3 68.3 28.57 6.35 55.0/12364 60.5 5.19 P66.27F5 66.27 22.35 28.7 11.1 54.6 58.6 28.5 4.8 100.0/22480 110 4.23 P66.27F9 66.27 22.35 28.2 11.1 61.2 65.5 28.7 6.4 75.6/16995 83.2 5.5 P69F1 69.85 615.88 17.02 8.28 36.7 39.7 20.6 4.00/3.25 60.8/13668 66.9 1.5 *P69F3 69.85 15.88 17 8.28 35.2 38.5 20.6 4.00/3.26 60.8/13669 66.9 1.5 P69.85F1 69.85 31.75 25.4 14.27 66.4 73.5 34.93 7.9 170.0/38243 187 8.76 P75F8-G-2 75 31.8 16.1 8 40 40 22 3.2 60.8/13668 66.9 2.43 P75F35 75 16 16.1 8 33.3 36 22 3.2 60.00/13488 66 1.75 P75F53 75 15.5 18 7.92 35.4 39.1 22 3.25 29.40/6609 32.3 1.73 P75F58-S-75 75 15.5 18 7.92 35.4 39.1 22 3.25 29.4/6609 32.3 1.73 P76.2F2 76.2 50 26 24 69.6 74.7 59.5 8 350.0/79544 385 19 P76.2F10 76.2 11.91 11 5.94 28 30.4 18.5 3.25 31.8/7148 35 1.3 P76.2F14 76.2 38.1 25.4 11.1 50.9 55 28.6 4.8 85.0/19108 94 5.8 P76.2F25 76.2 43.18 49.28 23.9 130 130 60.45 14.2 697.0/156691 766.7 32.3 P76.2F35 76.2 12.07 13 8.1 24.5 26.5 18 1.85 29.0/6519 31.9 0.77 P76.2F38 76.2 40 25.4 14.7 57.5 62 36 6 116.0/26077 127 8 P76.2F71 76.2 28.7 31.75 14.2 66.2 72 38.1 6.4 180.00/41200 198 7.8 P78.11F11 78.11 31.75 31.75 15.88 86.5 86.5 38.1 9.53 161.6/36329 177.8 11.34 P80F1 80 42 24 15 55 60 60 6 250.0/56202 275 11.9 P80F5 80 28 34 16 68 72 45 5.00/8.00 190.0/43181 209 8.8 P80F6 80 30 32 15 58.6 62.6 60 5 98.0/22272 108 9.75 P80F10 80 42 22 15 53 58 60 6 250.0/56202 275 11.4 P80F37 80 26 25 14 59.3 59.3 35 6.00/5.00 155.0/34845 170.5 5.72 P80F35 80 42 23 16 56 61.5 60 6 160.0/35969 176 11.5 P95F3 95 30 32 14 - 67.5 41 6 112.0/25178 123.2 7.2 P100H 100 20 28 14 - 62 40 5 103.0/23170 113.3 4.99 P100F7 100 29 30 14.5 - 71 38.1 6 95.0/21356 104.5 6.72 P100F25 100 25.4 31.5 14 62.6 77.5 38.1 6 95.0/21356 104.5 6.17 P100F52 100 38 18 9.53 47 49.3 32 5 86.7/19504 95.3 4.67 P100F53 100 52 21 14 46 51 40 5.00/4.00 110.0/24728 121 7.45 P100F56 100 35 13.5 10 - 46 30 5 70.0/15736 77 3.98 P100F77 100 38 17.5 11.3 48 48 32 4.5 65.0/14612 71.5 4.42 P100F84 100 38 22 9.5 57.5 57.5 35 6 70.0/15736 77 6.27 P100F92 100 60 38 20 81 94 47 8 220.0/49457 242 16.9 P100F111 100 29 30 14.5 71 71 38.1 6 95.0/21356 104.5 6.75 P100F114 100 40 23 12 - 56 32 6 100.0/22480 115 5.96 P100F122 100 38 17.5 11.3 41.8 45.9 32 4.5 65.0/14612 71.5 4.33 P100F125 100 22.2 22 11.3 54.5 58 32 6 110.0/24728 121 4.45 P100F161-S 100 30 31.6 15.9 - 80 38.1 8 130.0/29225 143 8.5 P100F166 100 25 30 14.5 - 71 38.1 6 95.0/21356 105 6.36 P100F196 100 38 18 10 - 51.5 29 5.6 100.0/22480 110 4.8 P100F223 100 29 30 14.5 - 71 38.1 6 225.0/50580 247.5 9.46 P100F248 100 50 24 15 - 52 35 4 100.0/22480 110 6.4 P100F250 100 15.88 19 7.92 37.4 40 26 3.2 30.0/6744 33 1.86 P100F268 100 22.2 22 11.3 - 51 32 4.5 65.0/14612 71.5 3.6 P100F279 100 50 33 14 - 70 62 6 112.0/25177 123.2 14.33 P100F355 100 15.88 16 8.3 35 48 22 3.25 32.0/7194 35.2 3 P100F360 100 20 25 14 60.6 65.8 35 6 120.0/26976 132 5.58 P101.6F4 101.6 66.7 25.4 26.9 59.2 80 51 7.10/5.10 134.0/30454 147.4 15.7 P101.6F18 101.6 31.75 15 10 37 41 25 4 40.0/8992 44 2.79 P101.6F19 101.6 28.58 25.4 14.27 60 64.6 38.1 6.4 160.0/35968 176 6.6 P101.6F24 101.6 47.6 22.2 11.11 47.8 52.2 32 4.5 75.0/16872 82.5 5.8 P101.6F46 101.6 50.8 29.4 17.5 72 77 44.5 7.9 177.9/40013 197.4 12.56 P101.6F51 101.6 44.45 28.7 11.1 54.5 60.8 28.7 4.8 53.7/12080 59 6.17 P101.6F69 101.6 38.1 23.8 12.7 - 65.1 33 6.4 100.0/22480 110.8 6.5 P101.6F71 101.6 38.1 25.4 11.1 51.1 55.2 28.7 4.8 552.5/11810 57.8 4.95 P101.6F73 101.6 47.6 19.1 19 53.6 58 38.1 6 66.7/15000 73.4 7.52 P101.6F80-S 101.6 30 31.6 15.9 - 80 38.1 8 130.0/29225 150 7.2 P101.6F106 101.6 57.15 55.8 30.16 - 136 86 14 1100.0/247289 1255 46 P101.6F157 101.6 44.45 33.27 15.88 - 82.6 38.1 7.9 113.2/25447 124.5 10.7 P101.6F160-F 101.6 70 42 20 86.5 95 50 9 240.0/53952 264 23.5 P101.6F166 101.6 28.5 30.9 14.5 - 70 38 6.5 150.0/33700 165 6.7 P101.6F167 101.6 31.75 37.5 15.9 - 84 38 8 195.0/44000 214.5 8.9 P101.6F184 101.6 31.8 31.6 15.9 - 81 38.1 8 130.0/29224 143 7.1 P103.2F3 103.2 44.45 49 27.94 - 132 60 14.3 700.0/157366 770 27.88 P103.2F6 103.2 44.45 52 25 116.7 120.35 60 14.5/12.0 650.0/146120 715 30.3 P103.45 103.45 45.21 32.51 23.88 99 109 63.5 12.7 500.0/112480 535 25 P103.89 103.89 66.68 57.15 33.32 - 148 88.9 15.88 500.0/112480 550 55.83 P120.9F3 120.9 44.3 49.2 25 - 131 58.1 14.5/13.2 700.0/157360 770 24.42 P125F1 125 50 55 26 - 110 60 8 300.0/68181 330 13.53 P125F2H 125 32 18.5 8 - 43 20 4 60.0/13488 66 2.65 P127F1 127 76.2 76.2 38.1 - 186.5 101.6 19.3 1690.0/380178 1860 73.85 P127F9 127 66.7 26 26.9 60.5 87 50 7.0/5.0 156.0/35069 171.6 10 P127F10 127 76.2 86.2 38.1 - 185.5 101.6 19.05 1690.0/379912 1868 73.48 P127F13 127 63.5 64.7 35 - 169.5 88.9 19.05 860.0/193328 946 55.8 *P135F6 135 28 38 17.9 - 98 50 9.5 350.0/78680 385 12.08 P150F10 150 29 30 14 - 71 40 6 180.0/40492 198 5.71 P150F15 150 46 70 18 - 133 54 10 200.0/44961 220 17.25 P150F43 150 22.2 22 11.1 - 57.4 31.8 6 100.0/22480 115 4.1 P150F44 150 46 60 26 - 127 60 10 360.0/80931 415 18.45 P150F51 150 75 42 25.4 - 107 64 10 310.0/69688 341 24.6 P150F76 150 22.2 25 11.1 - 55.8 31.8 4.8 100.0/22480 115 3.43 P150F79 150 46 70 26 - 133 60 10 360.0/80931 414 19 P150F93 150 29 30 14 - 71 40 6 180.0/40464 198 5.69 *P150F98 150 46 70 30 - 153 80 12 600.0/134880 660 28.45 RF10150-S 150 29 30 14.5 - 69 38.1 6.3 102.5/23295 112.7 6 P150.5 150.5 38.12 40.81 16.02 83.5 88 44.23 8.5 250.0/56817 275 10 P152F5 152.4 66.7 25.4 26.9 59.2 80 50 7.10/5.10 134.0/30454 147.4 12.1 P152F10 152.4 57.2 37.1 15.9 76.8 87 44.5 7.9 190.0/43181 209 11.29 P152F28 152.4 88.9 38 31.8 82 89 61 8.90/7.60 200.0/44961 220 23.3 P152F35 152.4 88.9 38 23 82 87.05 61 8.90/7.60 266.7/60000 293.4 22.65 P152F37 152.4 66.7 25.4 26.92 64 83.5 50.8 7.80/6.50 120.0/27000 132 12.22 P152F39 152.4 47.6 19 19 53.6 58 38.1 6.3 120.0/27000 132 6.26 P152F42 152.4 63.5 34.9 19 - 93 50.8 9.5 152.0/34194 168.9 15.8 P152F49 152.4 63.5 34 15.6 - 82 65 8 160.0/35993 176 16.3 P152F67 152.4 88.9 101 47.63 - 228.7 114.3 22 1350.0/303696 1445 101.3 P152F100 152.4 69.9 38.8 19 - 95.5 50.8 9.5 152.0/34194 168.9 17.76 P152F136 152.4 36 37 18 - 79.5 50 8 280.0/62946 308 10 P152F173 152.4 88.9 80.9 45 - 205 127 22 1810.0/406888 1991 105 *P152F210 152.4 32 26 24 62.4 72 51 7 180.0/40464 198 9.1 P152F52-BRSS 152.4 50.8 28.5 11.1 - 66.6 31.8 6.4 70.0/15736 80 6.7 *P154F1 154 44.5 85.6 28.6 - 150 80 12.5 500.0/112480 550 31 P155F1 155 55 35 20 74 81.3 48 8 180.0/40464 198 11.82 P160F15 160 64 37 15 - 100.4 45 8.5 160.0/35993 176 13.1 P160F16 160 69.85 38.1 27 - 101 50.8 9.00/8.00 267.0/60064 296.4 16.6 P160F27 160.00 69.85 38.10 17.53 - 81.00 50.80 6.30 244.0/54890 268.4 13.68 P160F48 160.00 30.00 39.00 15.90 - 88.00 50.00 8.00 200.0/44962 220.0 9.72 P160F85 160.00 25.00 35.30 12.70 68.40 73.00 40.00 6.40 169.0/37993 185.9 5.76 P177.8F6 177.80 88.90 81.00 44.45 - 218.50 127.00 25.00 1710.0/384408 1881.0 105.50 P200F10 200.00 100.00 47.00 25.00 - 103.50 72.00 10.00 308.7/69445 339.6 28.30 P200F15 200.00 40.10 51.40 19.10 - 109.50 50.80 9.50 213.0/47916 236.4 12.58 P200F58 200.00 44.00 44.00 19.10 - 91.50 50.80 7.00 200.0/44961 230.0 9.82 P200F86 200.00 80.00 41.00 30.00 - 129.00 60.00 16.00 300.0/67443 330.0 28.53 P203.2F18 203.20 66.70 26.00 26.90 60.50 65.50 50.00 7.00/5.00 156.0/35069 171.6 10.00 P203.2F20 203.20 66.70 25.40 27.00 63.50 92.00 50.00 8.00/6.00 156.0/35069 171.6 13.00 P228.6F9 228.60 107.95 77.70 31.75 173.60 88.90 16.00 598.0/134526 657.0 56.70 P250F36 250.00 100.00 57.20 22.23 117.00 63.50 9.50 314.0/70637 348.5 25.70 P250F39 250.00 44.00 44.00 19.00 92.00 50.00 7.00 200.0/44961 242.0 8.92 P250F79 250.00 57.20 66.70 25.40 146.00 76.20 12.70 619.0/139151 681.0 24.74 P250F85 250.00 64.80 37.00 16.00 84.50 45.00 8.00 160.0/35968 176.0 10.12

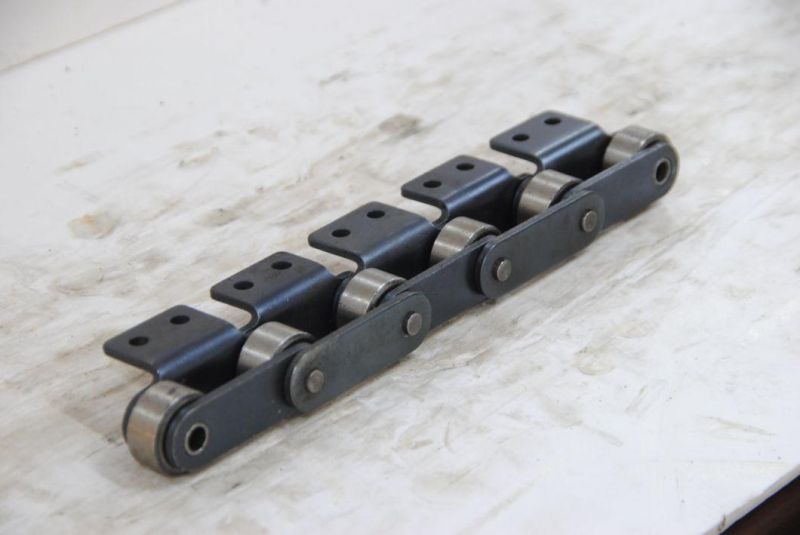

Conveyor chain designed and manufactured for the most demanding of environments
Qingdao Star Machine Technology Co.,ltd. provides the highest quality materials and manufacturing methods to suit the most arduous of conveyor chain applications - from the transport of biomass fuels, to the recycling industry, paper & pulp, cement, steel-work, the wood industry and food processing.
Our conveyor chains, sprocket wheels and attachments are case-hardened to achieve the optimum balance between strength, durability and resistance to wear.
Our manufacturing is focused on metric pitch conveyor chains that include:
International Standards DIN 8167/ISO 1977 M series
DIN 8165/ISO 1977 FV series
SMS 1968 S series
Construction of the chain
Two different sizes of roller chain, showing construction.
There are two types of links alternating in the bush roller chain. The first type is inner links, having two inner plates held together by two sleeves or bushings upon which rotate two rollers. Inner links alternate with the second type, the outer links, consisting of two outer plates held together by pins passing through the bushings of the inner links. The "bushingless" roller chain is similar in operation though not in construction; instead of separate bushings or sleeves holding the inner plates together, the plate has a tube stamped into it protruding from the hole which serves the same purpose. This has the advantage of removing one step in assembly of the chain.
Variants in design
Layout of a roller chain: 1. Outer plate, 2. Inner plate, 3. Pin, 4. Bushing, 5. Roller
If the chain is not being used for a high wear application (for instance if it is just transmitting motion from a hand-operated lever to a control shaft on a machine, or a sliding door on an oven), then one of the simpler types of chain may still be used. Conversely, where extra strength but the smooth drive of a smaller pitch is required, the chain may be "siamesed"; instead of just two rows of plates on the outer sides of the chain, there may be three ("duplex"), four ("triplex"), or more rows of plates running parallel, with bushings and rollers between each adjacent pair, and the same number of rows of teeth running in parallel on the sprockets to match. Timing chains on automotive engines, for example, typically have multiple rows of plates called strands.
USE
An example of two 'ghost' sprockets tensioning a triplex roller chain system
Roller chains are used in low- to mid-speed drives at around 600 to 800 feet per minute; however, at higher speeds, around 2,000 to 3,000 feet per minute, V-belts are normally used due to wear and noise issues.
A bicycle chain is a form of roller chain. Bicycle chains may have a master link, or may require a chain tool for removal and installation. A similar but larger and thus stronger chain is used on most motorcycles although it is sometimes replaced by either a toothed belt or a shaft drive, which offer lower noise level and fewer maintenance requirements.
The great majority of automobile engines use roller chains to drive the camshaft(s). Very high performance engines often use gear drive, and starting in the early 1960s toothed belts were used by some manufacturers.
Chains are also used in forklifts using hydraulic rams as a pulley to raise and lower the carriage; however, these chains are not considered roller chains, but are classified as lift or leaf chains.
Chainsaw cutting chains superficially resemble roller chains but are more closely related to leaf chains. They are driven by projecting drive links which also serve to locate the chain onto the bar.
Sea Harrier FA.2 ZA195 front (cold) vector thrust nozzle - the nozzle is rotated by a chain drive from an air motor
A perhaps unusual use of a pair of motorcycle chains is in the Harrier Jump Jet, where a chain drive from an air motor is used to rotate the movable engine nozzles, allowing them to be pointed downwards for hovering flight, or to the rear for normal forward flight, a system known as Thrust vectoring.
WEAR
The effect of wear on a roller chain is to increase the pitch (spacing of the links), causing the chain to grow longer. Note that this is due to wear at the pivoting pins and bushes, not from actual stretching of the metal (as does happen to some flexible steel components such as the hand-brake cable of a motor vehicle).
With modern chains it is unusual for a chain (other than that of a bicycle) to wear until it breaks, since a worn chain leads to the rapid onset of wear on the teeth of the sprockets, with ultimate failure being the loss of all the teeth on the sprocket. The sprockets (in particular the smaller of the two) suffer a grinding motion that puts a characteristic hook shape into the driven face of the teeth. (This effect is made worse by a chain improperly tensioned, but is unavoidable no matter what care is taken). The worn teeth (and chain) no longer provides smooth transmission of power and this may become evident from the noise, the vibration or (in car engines using a timing chain) the variation in ignition timing seen with a timing light. Both sprockets and chain should be replaced in these cases, since a new chain on worn sprockets will not last long. However, in less severe cases it may be possible to save the larger of the two sprockets, since it is always the smaller one that suffers the most wear. Only in very light-weight applications such as a bicycle, or in extreme cases of improper tension, will the chain normally jump off the sprockets.
In industry, it is usual to monitor the movement of the chain tensioner (whether manual or automatic) or the exact length of a drive chain (one rule of thumb is to replace a roller chain which has elongated 3% on an adjustable drive or 1.5% on a fixed-center drive). A simpler method, particularly suitable for the cycle or motorcycle user, is to attempt to pull the chain away from the larger of the two sprockets, whilst ensuring the chain is taut. Any significant movement (e.g. making it possible to see through a gap) probably indicates a chain worn up to and beyond the limit. Sprocket damage will result if the problem is ignored. Sprocket wear cancels this effect, and may mask chain wear.
CHAIN STRENGTH
The most common measure of roller chain's strength is tensile strength. Tensile strength represents how much load a chain can withstand under a one-time load before breaking. Just as important as tensile strength is a chain's fatigue strength. The critical factors in a chain's fatigue strength is the quality of steel used to manufacture the chain, the heat treatment of the chain components, the quality of the pitch hole fabrication of the linkplates, and the type of shot plus the intensity of shot peen coverage on the linkplates. Other factors can include the thickness of the linkplates and the design (contour) of the linkplates. The rule of thumb for roller chain operating on a continuous drive is for the chain load to not exceed a mere 1/6 or 1/9 of the chain's tensile strength, depending on the type of master links used (press-fit vs. slip-fit)[citation needed]. Roller chains operating on a continuous drive beyond these thresholds can and typically do fail prematurely via linkplate fatigue failure.
The standard minimum ultimate strength of the ANSI 29.1 steel chain is 12,500 x (pitch, in inches)2. X-ring and O-Ring chains greatly decrease wear by means of internal lubricants, increasing chain life. The internal lubrication is inserted by means of a vacuum when riveting the chain together.
CHAIN STANDARDS
Standards organizations (such as ANSI and ISO) maintain standards for design, dimensions, and interchangeability of transmission chains. For example, the following Table shows data from ANSI standard B29.1-2011 (Precision Power Transmission Roller Chains, Attachments, and Sprockets) developed by the American Society of Mechanical Engineers (ASME). See the references for additonal information.
ASME/ANSI B29.1-2011 Roller Chain Standard SizesSizePitchMaximum Roller DiameterMinimum Ultimate Tensile StrengthMeasuring Load25.
For mnemonic purposes, below is another presentation of key dimensions from the same standard, expressed in fractions of an inch (which was part of the thinking behind the choice of preferred numbers in the ANSI standard):
WHY CHOOSE US
1. Reliable Quality Assurance System
2. Cutting-Edge Computer-Controlled CNC Machines
3. Bespoke Solutions from Highly Experienced Specialists
4. Customization and OEM Available for Specific Application
5. Extensive Inventory of Spare Parts and Accessories
6. Well-Developed Worldwide Marketing Network
7. Efficient After-Sale Service System

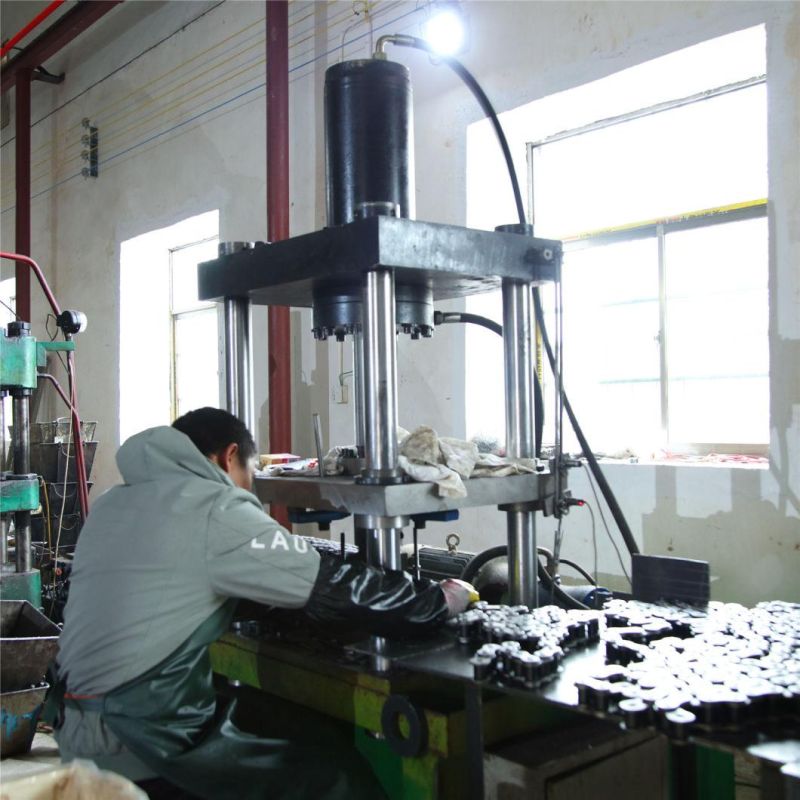

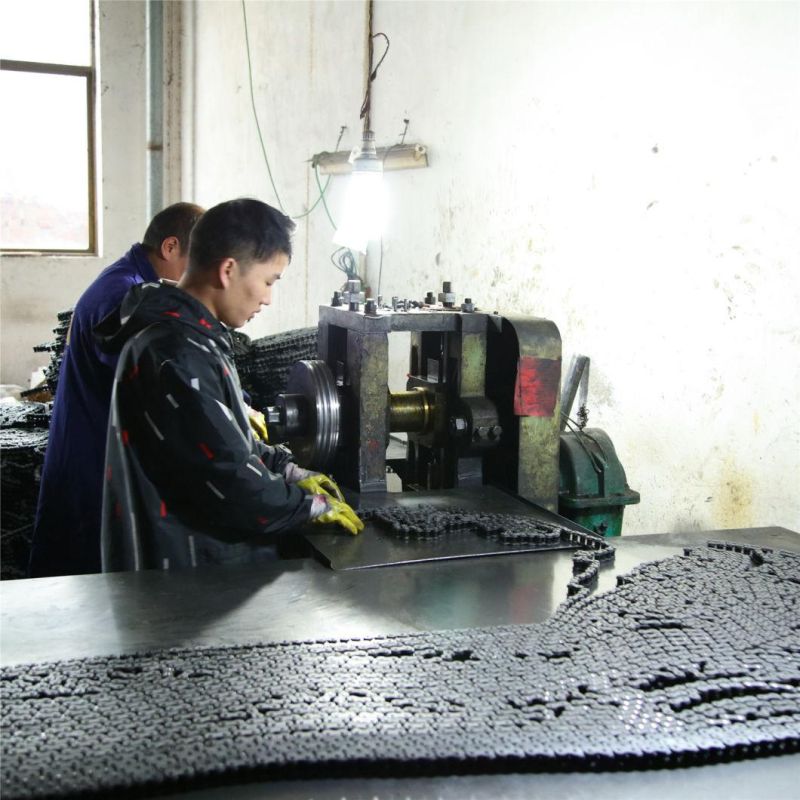

The 219 sets of advanced automatic production equipment provide guarantees for high product quality. The 167 engineers and technicians with senior professional titles can design and develop products to meet the exact demands of customers, and OEM customizations are also available with us. Our sound global service network can provide customers with timely after-sales technical services.
We are not just a manufacturer and supplier, but also an industry consultant. We work pro-actively with you to offer expert advice and product recommendations in order to end up with a most cost effective product available for your specific application. The clients we serve worldwide range from end users to distributors and OEMs. Our OEM replacements can be substituted wherever necessary and suitable for both repair and new assemblies.
