Factory Retail Power Lock Shaft Locking Assembly
Sichuan Mighty Machinery Co. Ltd.- Standard or Nonstandard：Standard
- Feature：Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Acid-Resistant, High Temperature-Resistance
- Application：Conveyer Equipment
- Surface Treatment：Polishing
- Material：Steel,C45,40cr
- Warranty：1 Year
Base Info

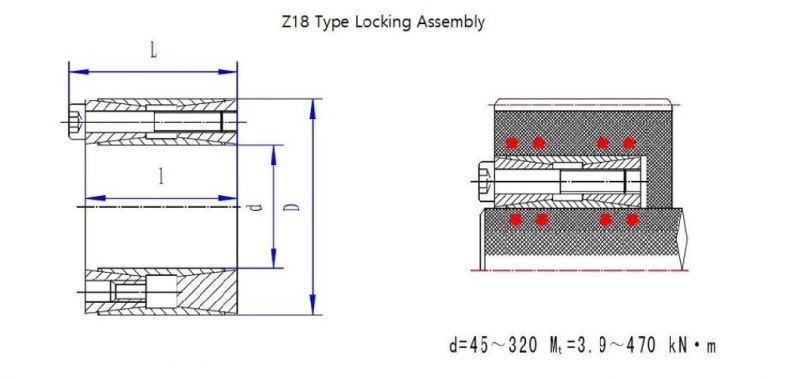

- Model NO.：Z18-95*135
- Model Number：Z18
- Inner Diameter：95 mm
- Outer Diameter：135 mm
- Length：78 mm
- Weight：4.7 Kg
- Transmissible Torque：200 ~ 4300 Nm
- Hub Diameter：50mm ~ 125mm
- Tightening Torque：17 ~ 83 Nm
- Witdh：56mm ~ 110mm
- Transport Package：Wooden Case+Pallet Packing
- Specification：Material: Steel, C45, 40Cr, Carbon Steel
- Trademark：Mighty
- Origin：China
- Production Capacity：10000,Week
Description

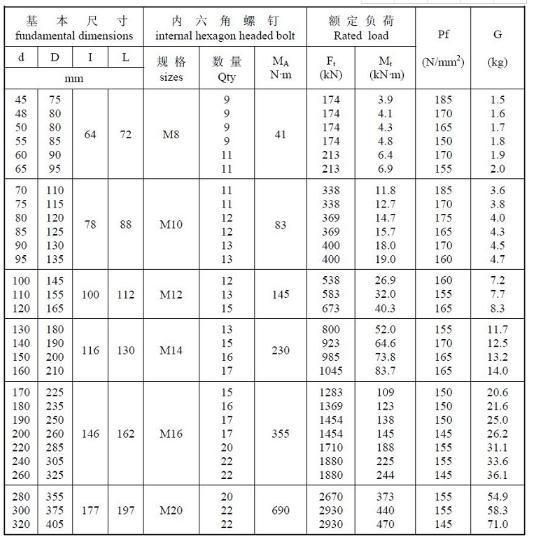

Product Parameters
Company Profile
FAQ
Q: How long can I get reply after send inquiry?
A: All inquiries will be replied within 12 hours, also you may call us at any time.
Q: How soon can I get sample ?
A: Generally standard sample can be send out within 7days, and for the customize parts, it will depend on the detail requirment.
Q:What information should I give to you for inquiry?
A:Pls send the detail of the specification and QTY, also specail demands etc, and it's better you can send us the detail drawings or catalogue.
Q: If I don't have drawing or catalogue, how can I get sample ?
A:If you don't have the drawing or catalogue, you can send us your sample, so we can make the drawing and sample accordingly.
Q:What is the Warranty for your products?
A:Normally our warranty is 1 year.
