• Model NO.：BLD3
• Type：Circular Gear
• Single-Stage Transmission Ratio：7 - 87
• Twin-Stage Transmission Ratio：99 - 7569
• Combination of Multi-Stage Transmission：8041 - 658503
• Single-Stage Transmission Efficiency：0.85
• Win-Stage Transmission Efficiency：0.72
• Material：Cast Iron
• Manipulate Way：Robotics
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Planetary
• Changes Way：Planetary
• Transport Package：Plywood
• Origin：Jiangsu
• HS Code：8483409000
• Production Capacity：200000set,Year

Torque:25N.m-23400N.m

Input speed:1000r/min,1500r/min

Output speed:11-167r/min

Ratio:9-87

Power:0.12KW-75KW

1.High reduction ratio and efficiency

Single-stage transmission can produce the reduction ration of 1:87 and over 90% efficiency. Multi-stage transmission will offer higher reduction ratio.
2.Compact structure and small volume

Due to the adoption of planetary transmission principle, input shaft and output shaft are at the same axis, so it has compact structure and small volume

3.Stable operation and low noise
Cycloidal gear pins have more engagement, bigger overlap coefficient and mechanism of stable machine parts.
4.Reliable operation and long service life
Major parts are manufactured with bearing steel, so they have excellent mechanical  performance. The adoption of rolling friction makes them durable in use.
5.Powerful overload capacity, strong resistance to impact, small moment of inertia, and applicable  to occasions with frequent stars and positive and negative rotating.

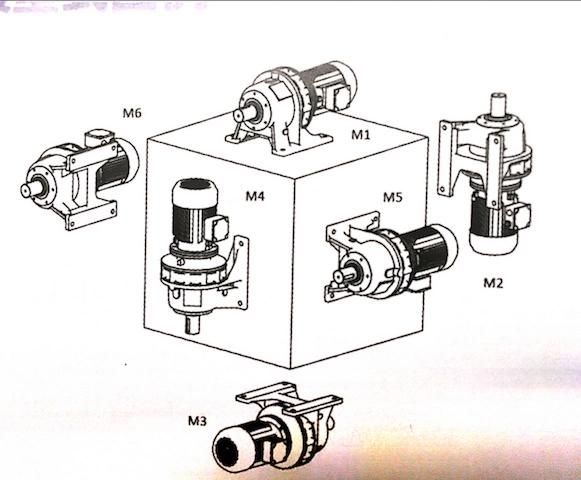

Installation

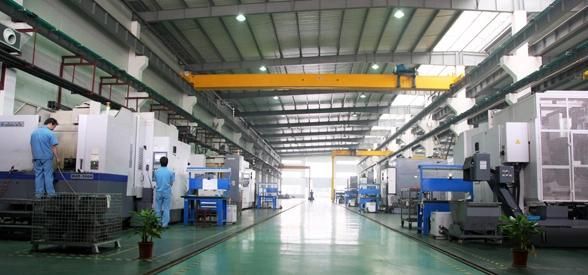

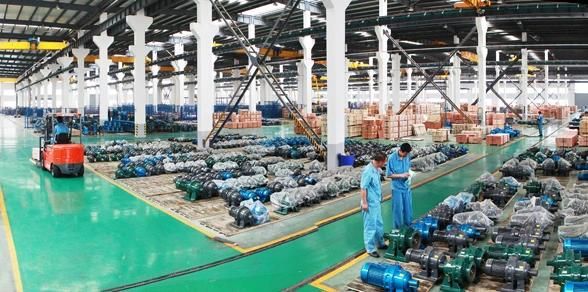

Factory



Office Block


Staff
