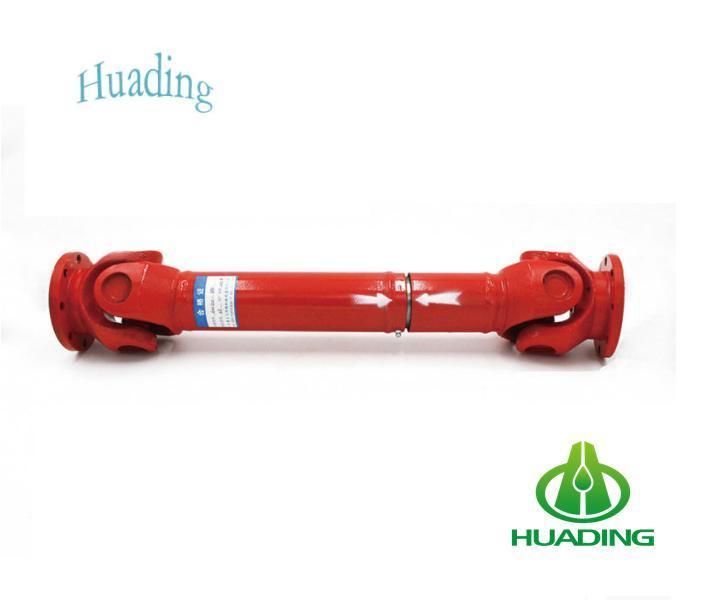

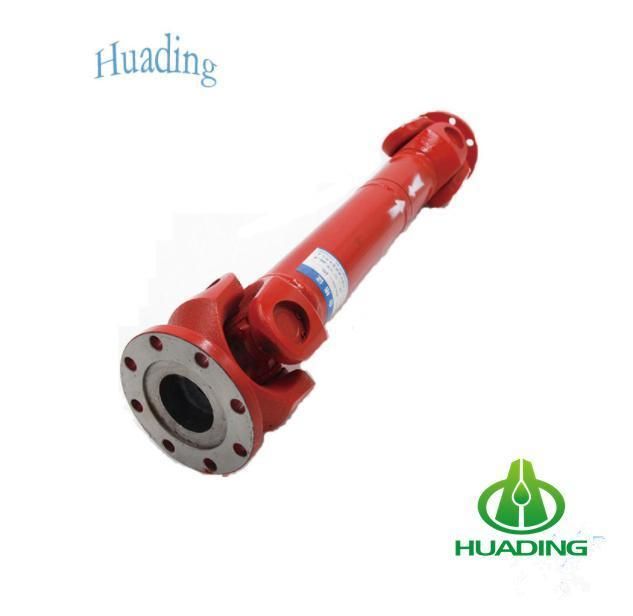

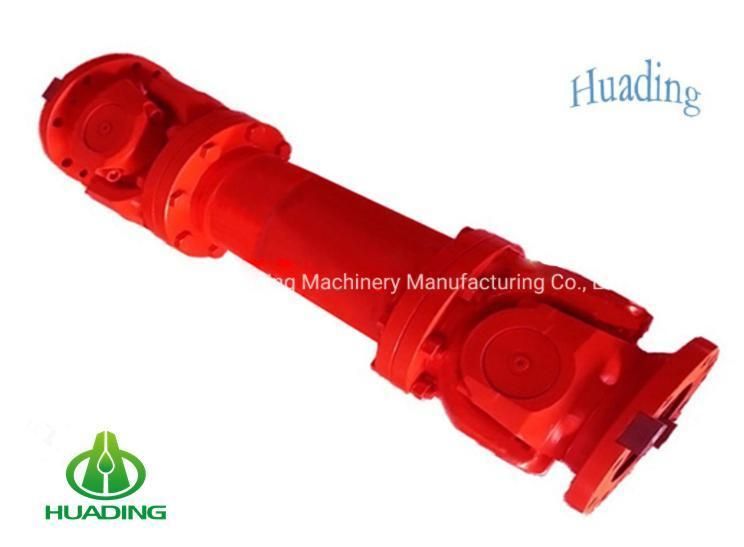

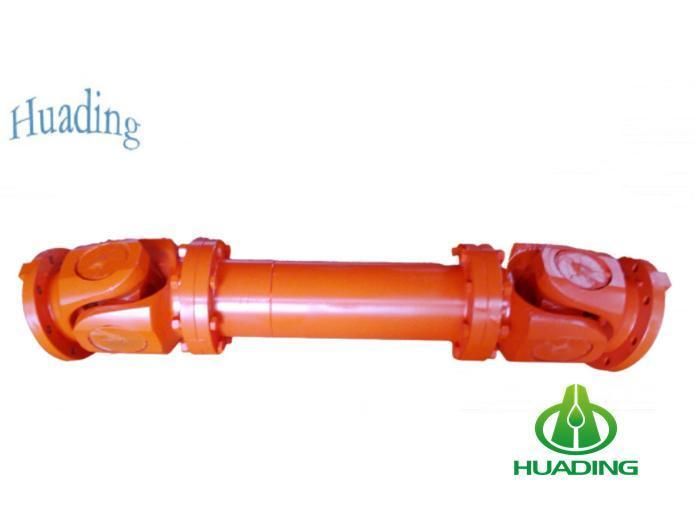

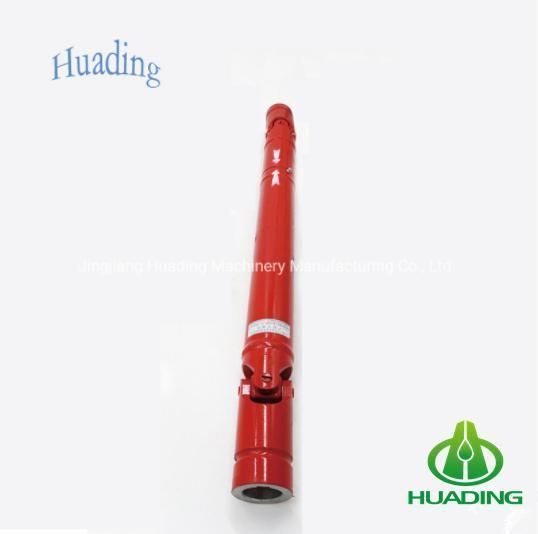

Customize Flexible Coupling for Heavy Machine
Jingjiang Huading Machinery Manufacturing Co., Ltd.- Shaft Hole：as Your Requirement
- Torque：as Your Requirement
Base Info
- Model NO.：SWP-E
- Bore Diameter：as Your Requirement
- Speed：as Your Requirement
- Structure：Flexible
- Material：35CrMo
- Type：Universal Coupling
- Delivery Time：Depend on Your Quantity
- Transport Package：Wooden Case
- Specification：as your requirement
- Trademark：Huading
- Origin：China
- HS Code：8483600090
- Production Capacity：5000pieces,Year
- Package size per unit product：274.00cm * 355.00cm * 360.00cm
- Gross weight per unit product：55.000kg
Description
Mass
kgLmin D1
js11 D2
H7 D3 E E1 B×h h1 L1 n-d Lmin Increase
100 Lmin Increase
100 SWP160E 160 16 8 ≤10 715 140 95 114 15 4 20×12 6 85 6-13 0.15 0.0056 35 2.1 SWP180E 180 20 10 ≤10 800 155 105 121 15 4 24×14 7 95 6-15 0.25 0.0072 47 2.3 SWP200E 200 31.5 16 ≤10 880 175 125 127 17 5 28×16 8 110 8-15 0.42 0.0114 67 3.4 SWP225E 225 40 20 ≤10 1000 196 135 152 20 5 32×18 9 130 8-17 0.75 0.0290 94 6.6 SWP250E 250 63 31.5 ≤10 1055 218 150 168 25 5 40×25 12.5 135 8-19 1.26 0.0407 140 7.3 SWP285E 285 90 45 ≤10 1210 245 170 194 27 7 40×30 15 150 8-21 2.67 0.0702 206 9.4 SWP315E 315 140 63 ≤10 1345 280 185 219 32 7 40×30 15 170 10-23 4.38 0.1144 271 12.0 SWP350E 350 180 90 ≤10 1480 310 210 245 35 8 50×32 16 185 10-23 7.42 0.1663 355 13.6 SWP390E 390 250 112 ≤10 1623 345 235 273 40 8 70×36 18 205 10-25 13.27 0.2695 501 18.0 SWP435E 435 355 160 ≤10 1860 385 255 299 42 10 80×40 20 235 16-28 24.62 0.3645 825 20.0 SWP480E 480 450 224 ≤10 2122 425 275 351 47 12 90×45 22.5 265 16-31 42.81 0.7028 1144 28.0 SWP550E 550 710 315 ≤10 2338 492 320 402 50 12 100×45 22.5 290 16-31 68.81 1.1842 1589 35.7 SWP600E 600 1000 500 ≤10 2930 544 380 450 55 15 90×55 27.5 360 22-34 110.60 1.7159 2243 40.5 SWP640E 640 1250 630 ≤10 3170 575 385 480 60 15 100×60 30 385 18-38 177.77 2.3080 3140 48.3
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Our Services
24 hours online service
Enquiry will be replied in 2 hours
Factory Address:
No. 11 Fuyang Road, ChengNan Industrial Park, Jingjiang City, Taizhou, Jiangsu, China
FAQ
1. Are u a manufacturer?
We are a professional manufacturer specializing in manufacturing cardan shafts and various series of couplings. We supply couplings for the wholesalers and dealers from different countries.
2. Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
3. How does your factory do regarding quality control?
Quality is priority! We always attach great importance to quality controlling from the very beginning to the very end:
1) Firstly, we have specialized QC department to control the quality, and we also accept the third official government to inspect the cargoes before delivery.
2) Secondly, we have all detailed records for nonconformity products, then we will make summary according to these records, avoid it happen again.
3) Thirdly, We do observe the relevant codes of conduct & laws from government in environment, human right aspects like no children labor, no prisoner labor and so on.
4. How can I get samples?
We are appreciated that new clients pay for the express fee for samples and this charge will be deducted once orders are released.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
Thanks.
