Udl Variable Speed Reducer Coaxial Stepless Variator Gearbox Udl002
KAILIDA TECHNOLOGY CO., LTD.- Application：Motor, Machinery, Agricultural Machinery
- Installation：Foot, Flange Mounted
- Gear Shape：Helical
- Step：Stepless
- Type：Gear Reducer
- Input Speed：1400rpm
Base Info
- Model NO.：UDL002
- Color：Blue or Others
- Output Speed：800~170r,Min ,1000~200r,Min
- Body Material：Aluminium or Iron Cast
- Transport Package：Carton+Wooden Case
- Trademark：kailida or OEM
- Origin：China
- HS Code：8483409000
- Production Capacity：50000PCS,Year
Description

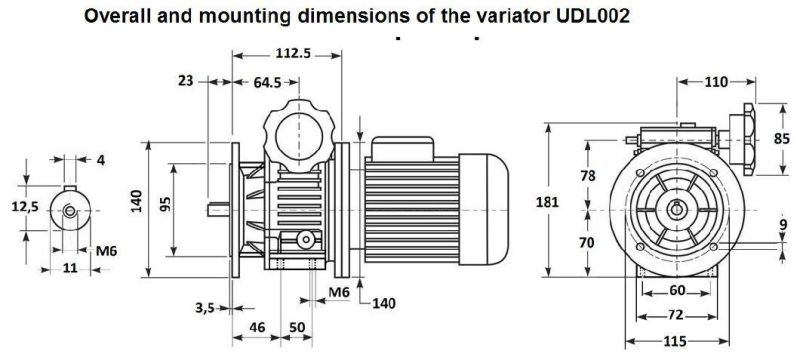

181 ~ 9032.9 ~ 1.1 0.18 2.9 ~ 1.6
ATTENTION!!!
It is forbidden to rotate the speed control knob on the idle variator !!!
It is forbidden to operate the variator in the extreme positions of the speed control handle !!!
UDL variators are only manufactured with a large flange - B5.
ATTENTION!!!
It is forbidden to rotate the speed control knob on the idle variator !!!
It is forbidden to operate the variator in the extreme positions of the speed control handle !!!

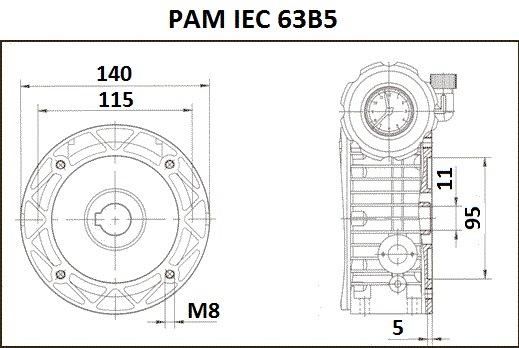

Connecting dimensions of the variator UDL 002 to the electric motor
UDL variators are only manufactured with a large flange - B5.
