• Model NO.：S42
• Model：S42
• Pitch：34.93mm
• Pin Diameter：7.01mm
• Width Between Inner Plates：19.05mm
• Inner Plate Depth：19.80mm
• Plate Thickness：2.80mm
• Roller Diameter：14.27mm
• Tensile Strength：48kn
• Structure (for Chain)：Plate Chain
• Leaf Chains Type：Mine High-Intensity Ring Chain
• Transport Package：Polybag +Carton+Fumigation-Free Wooden Cases
• Specification：ISO606, ASME, DIN & JIS Chains Standards
• Trademark：LECTSTYLE
• Origin：China
• HS Code：73151190
• Production Capacity：50 Tons Each Year

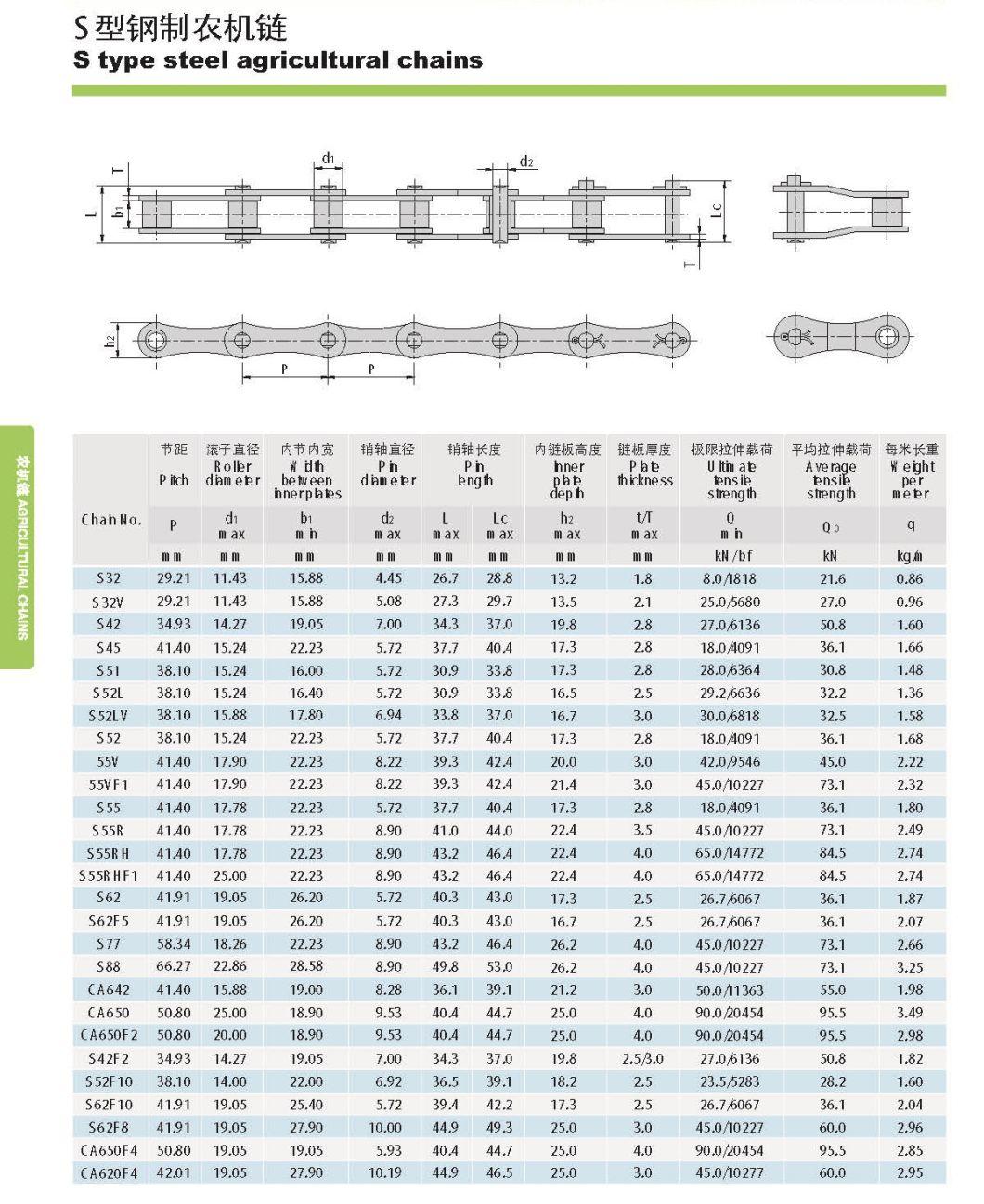

Chain No.PitchRoller diameterWidth between inner platesWidth between outer platesDepth of chain platesPin diameterPin lengthPlate thicknessUltimate tensile strengthWeight per meterpd1(Max)b1(min)b3(min)h2(Max)d2(Max)b4(Max)T(Max)Qo(min)QmmmmmmmmmmmmmmmmKnKg/mS3229.2111.4315.8820.5713.54.4726.71.880.86S32-H29.2111.4315.8820.5713.54.4726.7217.50.88S32V29.2111.4315.88 13.55.0829.72.1250.96S4234.9314.2719.0525.6519.87.0134.32.826.70.96S42-H34.9314.2719.0525.6519.87.0134.3 41 S4541.415.2422.2328.9617.35.7438.12.817.81.6S45-H41.415.2422.2328.9617.35.7438.1 32 S5238.115.2422.2328.9617.35.7438.12.817.81.68S52-H38.115.2422.2328.9617.35.7438.1 32 S5541.417.7822.2328.9617.35.7438.12.817.81.8S55-H41.417.7822.2328.9617.35.7438.1 322.25S55V41.417.7822.2335.320.78.2739.42.9452.22S55R41.417.7822.2334.521.25.7237.52.6452.49S55RH41.417.7822.2341.422.48.946.4484.52.74S6241.9119.0525.43217.35.7440.66.226.71.87S62-H41.9119.0525.43217.35.7440.6 32 S7758.3418.2622.2331.526.28.9243.2444.52.66S77-H58.3418.2622.2331.526.28.9243.2 80 S8866.2722.8628.5837.8526.28.9250.8444.53.25S88-H66.2722.8628.5837.8526.28.9250.8 80 S38381621.8 219433552LV40401222 17.5641331.41.53P41.341.315.8822.2335.320.78.2739.43502.45P40.640.615.882035.4520.78.2739.43351.55

Our Advantages

Company Profile

After Sales Service

FAQ

Question:
1.Q:How about mould cost?
A: primarily depend on : 1.Drawing, 2.material, 3.weight and quantity.
We need to know the structure of each parts to analyze the mold solution by:

1) --Complete design drawing, product model or actual sample ----- the best way
--PDF drawing with complete dimension for each parts
--Clearly photos for each parts with more angle-views to show every features.

2)The materials, technical parameters and surface treatments.
technical parameters: tell us about its model, pitch, roller diameter, width between inner plates, attachment type, outside drawing etc.

3)The quantity of order.

2.Q:How to control the product processing?
A: The processing report or pictures will be sent to the customer every week/ each month for review.

3.Q:Who will own the mould?
A:Customer, also the mould can be kept in our factory for future order.

4.Q:How long do you make your quotation?
A:After receiving detail informations we will quote in 1 to 3 days.

5.Q: MOQ? ---
small chain type: if its pitch is less than 38.10mm and its thickness is less than 5mm, MOQ is 1500 meters on these roller chains or conveyor chains;
middle chain type: MOQ is 1000 meters on these roller chains or conveyor chains;
big chain type: if its pitch is more than 76.20mm and its thickness is more than 10mm, MOQ is 200 meters on these roller chains or conveyor chains;
