Helical Bevel Gear Reducer
Guangdong Starshine Drive Co., Ltd.- Application:Motorcycle, Machinery, Marine, Agricultural Machinery, Ceramic
- Hardness:Hardened Tooth Surface
- Installation:Horizontal Type
- Layout:Corner
- Gear Shape:Helical Gear
- Step:Single-Step
Base Info
- Model NO.:SNKG
- Type:Helical Bevel Gear
- Motor Power:0.55, 0.75, 1.1, 1.5
- Ratio:10,15,20,25,30,35,43
- Output Shaft/ Hollow Shaft Diameter:30mm or 35mm
- Mounting Position:M1 (Standard), M2, M3, M4
- Transport Package:Carton
- Specification:CE, SGS, ISO, UL
- Trademark:Starshine Drive
- Origin:China
- HS Code:8483409000
- Production Capacity:15000, Month
Description
Basic Info.
Model NO. SNKG Type Helical Bevel Gear Motor Power 0.55/ 0.75/ 1.1/ 1.5 Ratio 10/15/20/25/30/35/43 Output Shaft/ Hollow Shaft Diameter 30mm or 35mm Mounting Position M1 (Standard), M2, M3, M4 Transport Package Carton Specification CE, SGS, ISO, UL Trademark Starshine Drive Origin China HS Code 8483409000 Production Capacity 15000/ MonthProduct Description

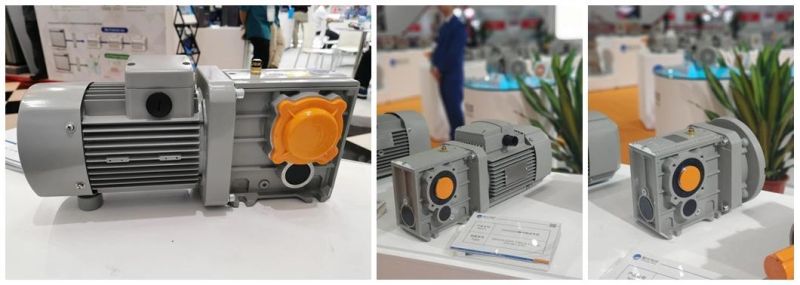

Bevel helical gearbox with permanent magnet synchronous motor integrate variable frequency driver for conveyorSNKG Series prorduct adopt harden teeth surface bevel gear and helical gear to drive, following the design principle of modularization , FEA analyse technology, unique low-noise gear tooth profile, with the characteristics of compact volume, high load performance and stable running, reliability and long service life.
Key Benefits
-Simple wiring, low cost
-Large amount of data, fast speed, 100m, data transmission is 500K
-All control units have the same condition, it means each node has the same rights to occupy the bus (send and receive)
-Communication rate meets control requirements, communication data amount supports required data reading.
-Electric eye and proximity switch sensor supply signal to the driver directly, it is convenient and reliable.

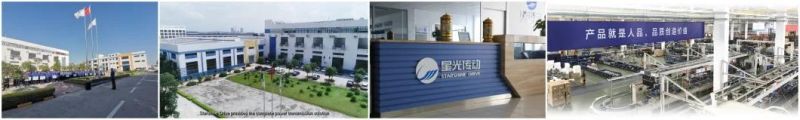

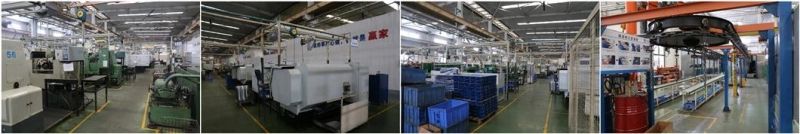

About UsGuangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.
Our Team

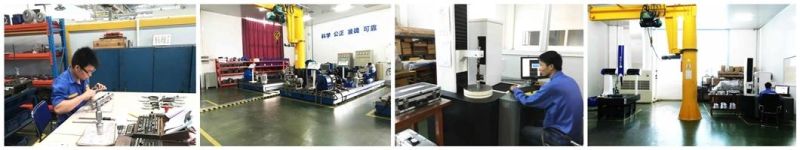

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value

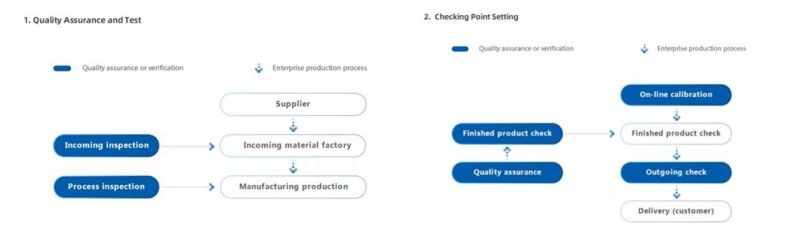

3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.
4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.
5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.
6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.
Packing
Delivery
