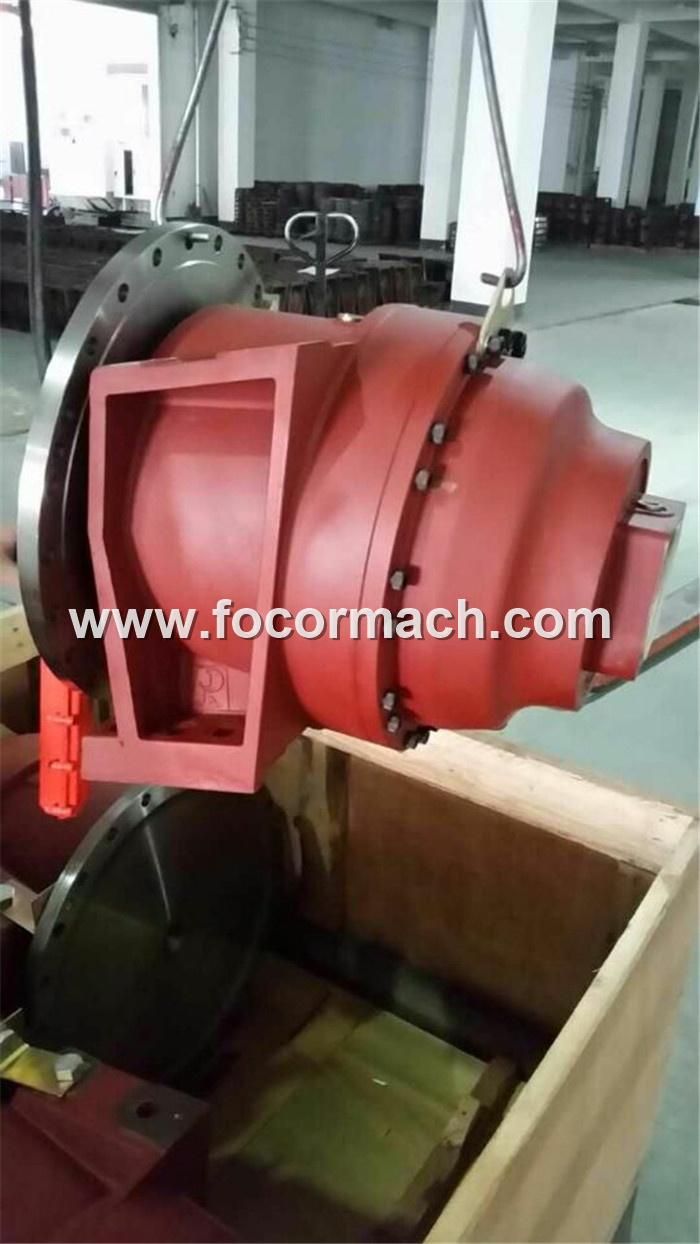

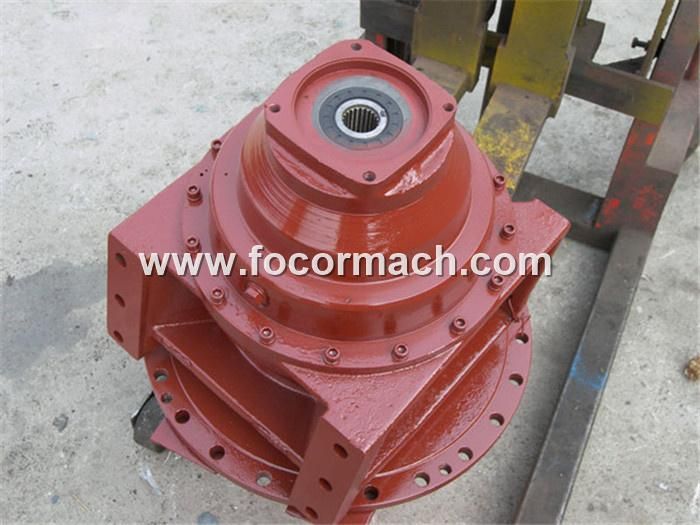

Fk230b Gearbox Suitable for 6 Cbm Mixer Nbsp Truck
Jinan Focor Machinery Co., Ltd.- Application：Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery, Car
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Layout：Coaxial
- Gear Shape：Teeth Gear
- Step：Stepless
Base Info
- Model NO.：FK230B
- Type：Planetary Gear Reducer
- Model：Fk230b
- Warranty：1 Year
- After-Sale Service：Free Maintenance
- Delivery Date：Within 1 Week
- Transport Package：Wooden Case or Pallet
- Specification：OEM
- Trademark：FOCOR,ZF
- Origin：China
- HS Code：84834090
- Production Capacity：4000PCS,Month
Description
Basic Info.
Model NO. FK230B Type Planetary Gear Reducer Model Fk230b Warranty 1 Year After-Sale Service Free Maintenance Delivery Date Within 1 Week Transport Package Wooden Case or Pallet Specification OEM Trademark FOCOR/ZF Origin China HS Code 84834090 Production Capacity 4000PCS/MonthProduct Description
FK230B Gearbox Suitable for 6 cbm mixer nbsp truck| Specification Model | FK130B | FK230B | FK270B | FK330B | FK430B | FK530B | FK730B | FK830B | FK930B |
| Mixer Volume (cbm) | 3-5 | 4-6 | 6-7 | 7-8 | 9-10 | 10-12 | 12-14 | 15-16 | 17-20 |
| Output Torque (Nm) | 30000 | 36000 | 42000 | 48000 | 54000 | 70000 | 75000 | 85000 | 95000 |
| Reduction ration | 103 | 103 | 128.5 | 133.7 | 135.5 | 135.5 | 144.3 | 141.3 | 141.3 |
| Drum angle (°) | 15 | 15 | 15 | 15 | 15 | 15 | 13 | 12 | 10 |
| Input rotation | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Radial load (kN) | 70 | 72 | 100 | 130 | 160 | 170 | 190 | 235 | 275 |
| Axial load (kN) | 20 | 22 | 28 | 36 | 45 | 50 | 60 | 70 | 90 |
| Weight (kg) | 160 | 162 | 175 | 185 | 325 | 330 | 340 | 405 | 415 |
| Lubricating oil (L) | 5.5 | 7.0 | 7.0 | 7.5 | 11.5 | 11.5 | 11.5 | 13.5 | 15.5 |
| Swing angle of Flange plate | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 |
| Model of Gear oil | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 | SAE 85W-90/API GL4 GL5 |
| Connection port of Water pump | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Connection flange of Hydraulic motor | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 | SAE C 16/32 Z21 |
