Inline Industry Gear Transmission Planetary Speed Reducer Gearbox
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Machinery, Marine, Agricultural Machinery, Industry
- Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened
- Installation：Foot Mounted
- Step：Three-Step
Base Info
- Type：Circular Gear
- Diameter：up to 885mm
- Material：Cast Iron
- Manipulate Way：Robotics
- Manufacturing Method：Cut Gear
- Toothed Portion Shape：Spur Gear
- Advantage：Equivalent to Brevini Planetary Gear Reducer
- Transport Package：Plywooe Case or Steel Cage
- Specification：ISO9001: 2008
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Equivalent to Brevini Planetary Gear Reducer Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description

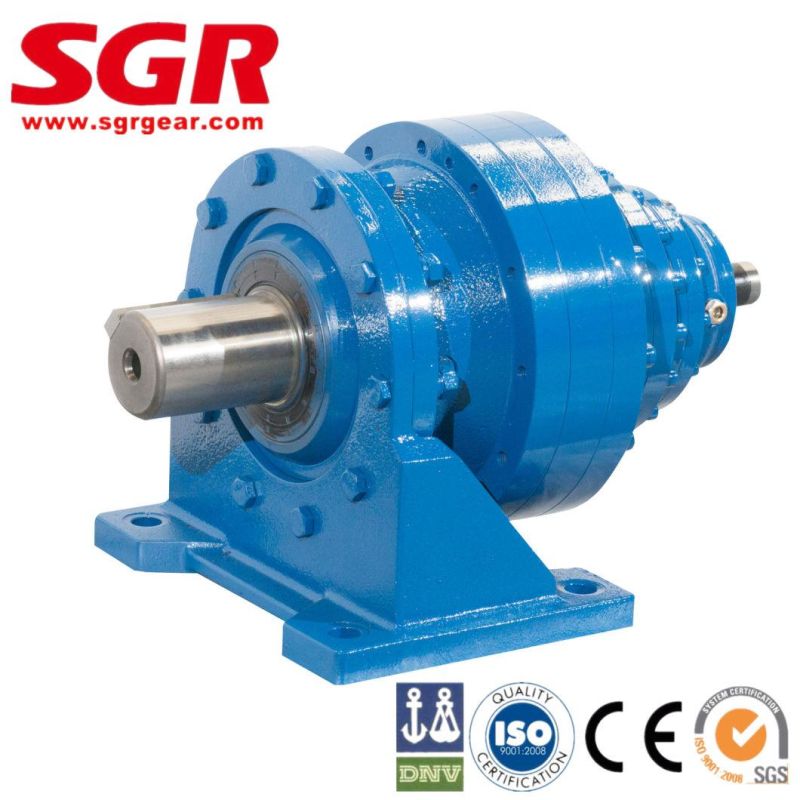

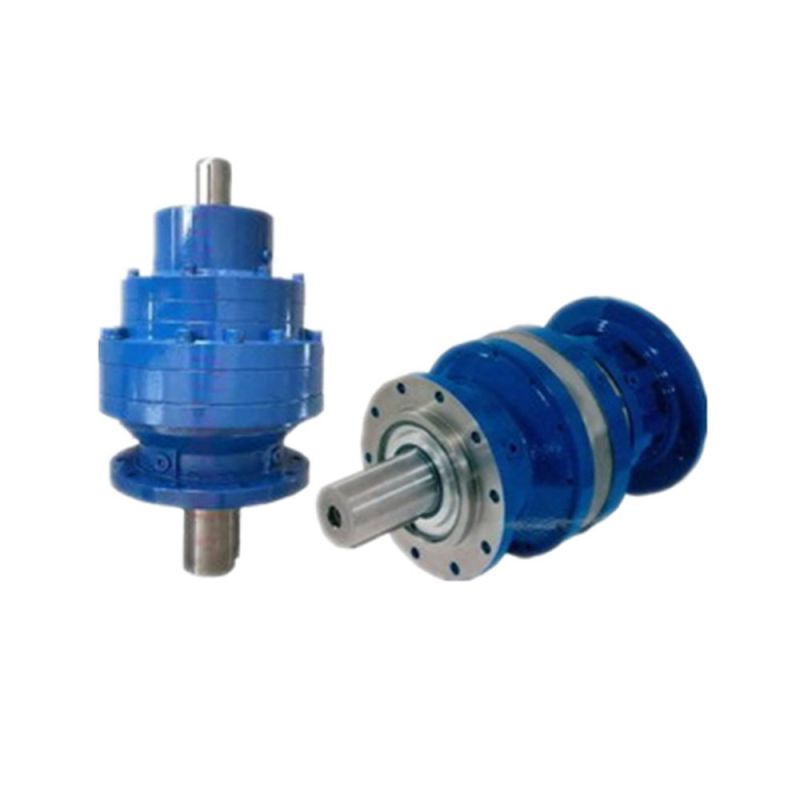

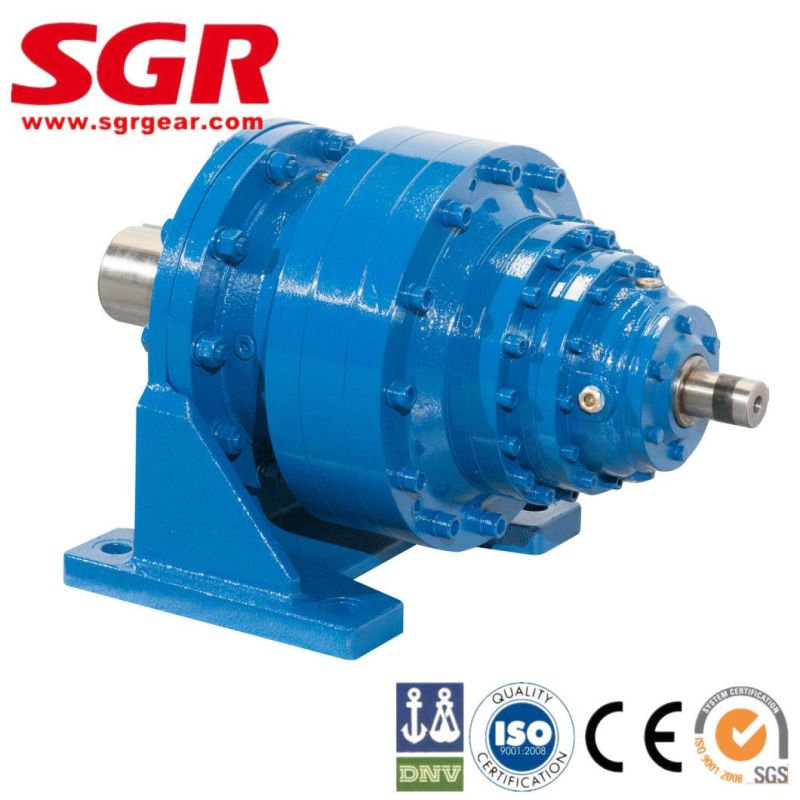

Inline Industry Gear Transmission Planetary Speed Reducer Gearbox
Characteristic of Brevini Planetary Gear Reducer :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing
N series planetary gearbox torque sheet with models
| Gear unit size | 200 | 201 | 240 | 241 | 280 | 281 | 353/354 | 355 | 400 | 401 |
| Normal output torque T2N[Nm] | 1500 | 2000 | 3500 | 4000 | 4300 | 7300 | 13000 | 16000 | 20000 | 23000 |
| Gear unit size | 428 | 429 | 445 | 446 | 510 | 542 | 543 | 695 | 810 | 885 |
| Normal output torque T2N[Nm] | 26000 | 30000 | 32000 | 43000 | 63000 | 75000 | 100000 | 150000 | 300000 | 420000 |
