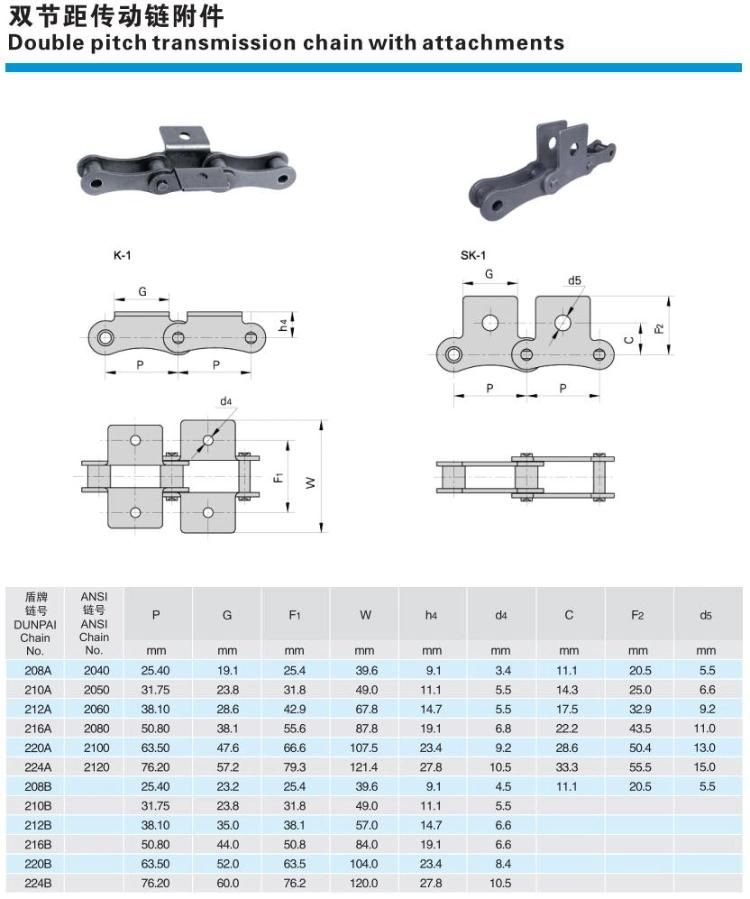

ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1

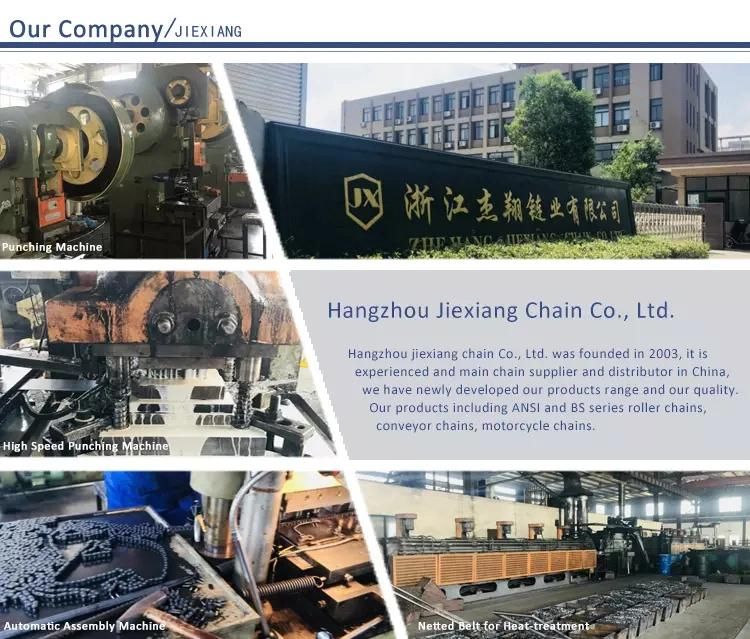

Hangzhou Jiexiang Chain Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle
  • Surface Treatment：Netural,Sand-Blasted,Shot-Peening
  • Structure：Roller Chain
  • Material：Carbon Steel
  • Type：Double Pitch Chain

Base Info

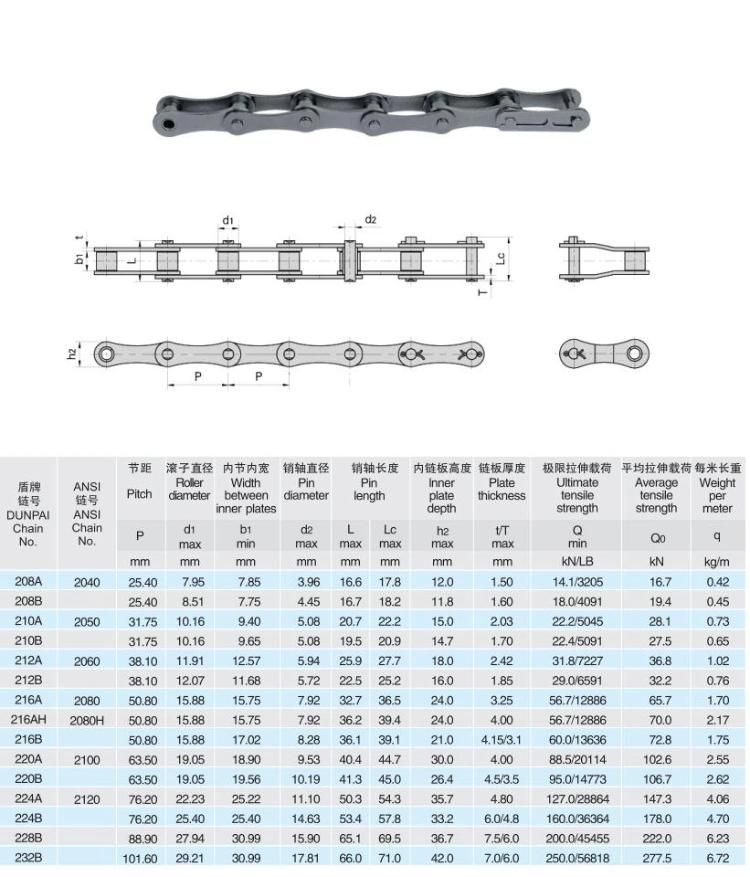

  • Model NO.：SSC2052-K1
  • Roller Diameter：44.45mm
  • Roller Width：25.22mm
  • Plate Thickness：4.8mm
  • Overall Width：50.3mm
  • Plate Height：35.7mm
  • Pin Diameter：11.1mm
  • Transport Package：Packaged in Boxes and Wooden Cases, or Packaged in
  • Trademark：OEM, ODM
  • Origin：Zhejiang
  • HS Code：7315119000
  • Production Capacity：5000meter,Month

Description

Item Name Standrad transmission Roller ChainsModelSeries A, Series BRowSimplex
Duplex
TriplrexApplicationMachinery PartsSuiface Treamentnetural/sand-blasted/shot-peeningCertification ISO, ANSI, DIN, BSPackingPackaged in boxes and wooden cases, or packaged in reels and then on palletsPortAny sea port or airport in china


ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1






ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1
ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1
ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1

ANSI Standard Double Pitch Conveyor Transmission Parts Roller Chain C2052 with Attachment K1
