Flexible Hose -Stable Quality-Yanggu Jingyanggang
Shandong Maso Transmission Technology Co., Ltd- Standard Or Nonstandard：Standard
- Structure：Flexible
- Material：Stainless Steel
- Flexible Hose：Spare Parts
- Transport Package：Carons, Pallets or Wooden Case
- Specification：ISO9001: 2008; SGS,
Base Info
- Model NO.：rubber hose
- Trademark：JYG
- Origin：Yanggu, Shandong
- HS Code：84831090
- Production Capacity：30000 Pieces Per Month
Description
Basic Info.
Model NO. rubber hose Trademark JYG Origin Yanggu, Shandong HS Code 84831090 Production Capacity 30000 Pieces Per MonthProduct Description

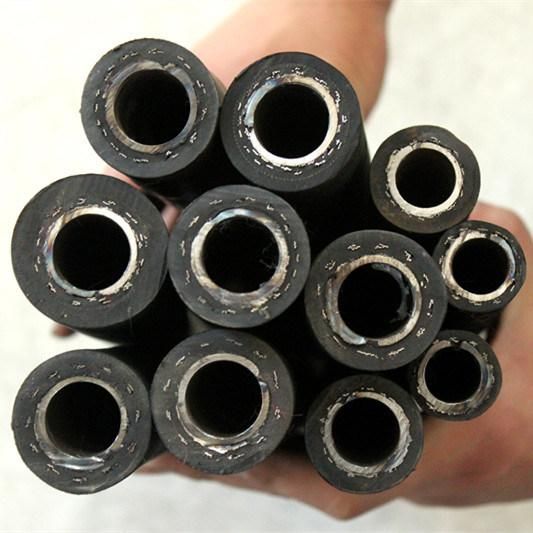

Flexible shaft assy use special steel; Reinforce layer use 70# copper plate steel wire braid and canvas.
Flexible shaft assy for brush cutters, trimmers, grinders, washing equipments.
BG360 | BG328 | BG 330A | BG256 | BG305D | |
Outer diameter of the hose (mm) | 22+0.2 | 22+0.2 | 22+0.2 | 22+0.2 | 20+0.2 |
Inner diameter of the hose(mm) | 10+0.1 | 10+0.1 | 10+0.1 | 10+0.1 | 10+0.1 |
Diameter of the shaft (mm) | 8-0.1 | 8-0.1 | 8-0.1 | 8-0.1 | 8-0.1 |
Steel belt HRC | 28-32 | 28-32 | 28-32 | 28-32 | 28-32 |
Torsion of the shaft (Nm) | >5.0 | >5.0 | >5.0 | >5.0 | >4.5 |
Rubber elongation cm2 | >1000 | >1000 | >1000 | >1000 | >800 |
Adhesive strength cm2 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
Min bending radius (mm) | 90 | 90 | 90 | 90 | 80 |
Rated speed (rpm) | 3200 | 3200 | 3200 | 3200 | 3500 |
Max speed allowed (rpm) | 10000 | 10000 | 10000 | 10000 | 10000 |
