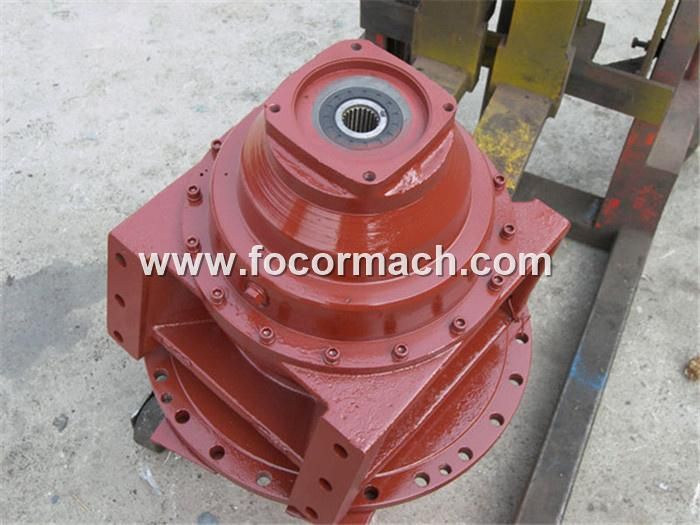

Fk730b Speed Reducer
Jinan Focor Machinery Co., Ltd.- Application：Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery, Car
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Layout：Coaxial
- Gear Shape：Teeth Gear
- Step：Stepless
Base Info
- Model NO.：FK730B
- Type：Planetary Gear Reducer
- Model：Fk530b
- Warranty：1 Year
- After-Sale Service：Free Maintenance
- Delivery Date：Within 1 Week
- Transport Package：Wooden Case or Pallet
- Specification：OEM
- Trademark：FOCOR,ZF
- Origin：China
- HS Code：84834090
- Production Capacity：4000PCS,Month
Description
Basic Info.
Model NO. FK730B Type Planetary Gear Reducer Model Fk530b Warranty 1 Year After-Sale Service Free Maintenance Delivery Date Within 1 Week Transport Package Wooden Case or Pallet Specification OEM Trademark FOCOR/ZF Origin China HS Code 84834090 Production Capacity 4000PCS/MonthProduct Description
FK730B speed reducer| Specification Model | FK130B | FK230B | FK330B | FK530B | FK730B |
| Output Torque | 30000NM | 36000NM | 42000NM | 60000NM | 72000NM |
| Drum angle | 15 | 15 | 15 | 15 | 15 |
| Mixer Volume | 3-5 cbm | 6 cbm | 7-8 cbm | 10 cbm | 12 cbm |
| Reduction ration | 103 | 103 | 141 | 135.5 | 144.3 |
| Input | 2500RPM | 2500RPM | 2500RPM | 2500RPM | 2500RPM |
| Radial load | 85KN | 95KN | 112KN | 160KN | 190KN |
| Axle load | 35KN | 35KN | 44KN | 50KN | 58KN |
| Weight | 160KG | 170KG | 242KG | 340KG | 350KG |
| Lubricating oil | 5.5L | 5.5L | 7.5L | 11.5L | 11.5L |
| Flange angle | 6 | 6 | 6 | 6 | 6 |
| Gear oil | SAE85W-90 | SAE85W-90 | SAE85W-90 | SAE85W-90 | SAE85W-90 |
| Rated torque | 25000NM | 30900NM | - | - | - |
