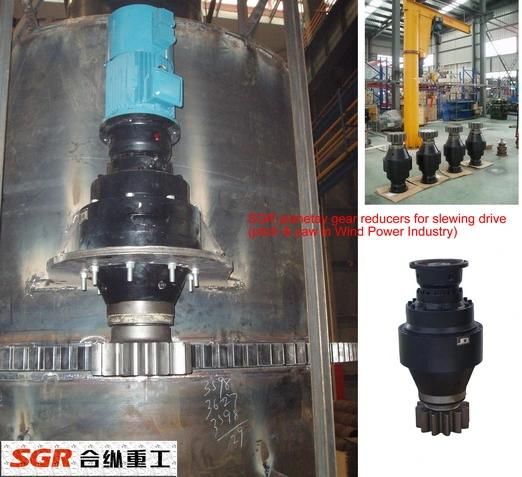

Planetary Gear Reducer

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Toy, Agricultural Machinery, Industry
  • Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Double-Step

Base Info

  • Model NO.：MNC
  • Type：Planetary Gear Box
  • Diameter：up to 885mm
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Changes Way：Mixed
  • Manufacturing Method：Cut Gear
  • Toothed Portion Shape：Spur Gear
  • Advantage：Cast Iron Industrial Planetary Gear Reducer
  • Transport Package：Plywood Case or Steel Cage
  • Specification：DNV-ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Basic Info.

Model NO. MNC Type Planetary Gear Box Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Changes Way Mixed Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Cast Iron Industrial Planetary Gear Reducer Transport Package Plywood Case or Steel Cage Specification DNV-ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

planetary gear reducer Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions

planetary gear reducer Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearingPlanetary Gear Reducer
 Ratio 3.15:1 to 9000:1
 Reduction Stages up to 6 reduction stages in one gearbox
 Nominal Output Torque up to 800,000N.m
