• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Double Helical Gear
• Changes Way：Mixed
• Trademark：UMC
• Origin：USA
• HS Code：8483409000

Basic Info.

Manufacturing Method Cast Gear Toothed Portion Shape Double Helical Gear Changes Way Mixed Trademark UMC Origin USA HS Code 8483409000

Product Description

Irritech  offers a wide range of water-driven self-cleaning screen. We are an industry leader in replacement parts for Center Pivot Irrigation Systems and have the expertise to help you find exactly twater-driven self-cleaning screen you are looking for. Our selection of parts includes Center Drives, Gearboxes, Center Pivot Structural Parts, Tower Boxes, and Sprinkler Packages. Irritech is an independent parts supplier and is not affiliated with Lindsay/Zimmatic, Reinke, Pierce, Olson, or Lockwood. Buy your Filters And Screens Today!
A rotating water-driven self-cleaning screen that dependably delivers good water from as little as 4 inches depth!
The ideal solution for the operation depending upon river or canal water sources for pivot irrigation systems. Irritech water-driven self-cleaning screen is built for shallow water pumping - prevents sand problems. Low maintenance operation.

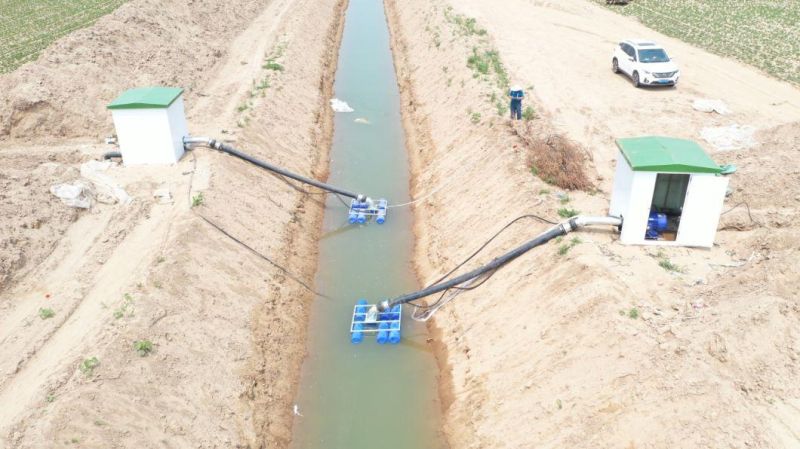

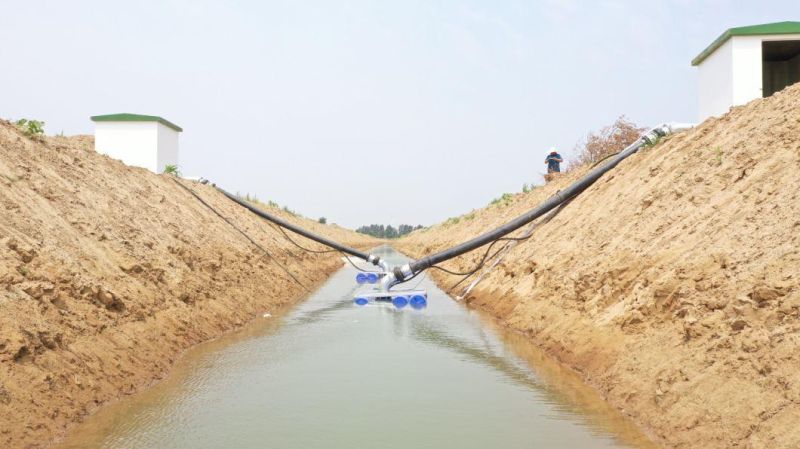

The device is a water-driven rotating self-cleaning screen that dependably delivers good water from as little as 100mm in depth, solving the problem of reliably drawing clean water for centrepivot irrigation from a river or canal.It has been designed and built for shallow water pumping and prevents sand, leaves and other debris in the water source from getting into and clogging filters, reducing maintenance and operational costs.
A #8 304 stainless steel mesh is standard on all units, with other sizes available on request. Other specifications include screen drums from 40.5cm x 61cm to 81cm x 122cm, and a light but sturdy aluminium frame pontoons that enable the screen to float on and rise and fall with the water surface.
Different models - 10cm, 15cm, 20cm, 25cm and 30cm -fit different suction lines. An optional power drive that requires a flow of only 23L/min keeps the drum turning even in a slow moving current or in still water, as in the case of a sewage farm.
The optional lifting boom is galvanised for long life. It has a heavy duty 15cm diameter upright main pipe, a trussed boom for greater strength, a brake winch for easy operation and a quick latch hook for easy hook-up.

Rotating water-driven self-cleaning screen Basics

• Screen drum measuring 16″ x 24″ up to 32″ x 48″
• Sturdy aluminum frame
• Aluminum pontoons
• 4″, 6″, 8″, 10″ or 12″ models available to fit your suction line



Optional Water Driven Power Drive

• Keeps drum turning even in slow moving current or still water
• Only requires 6 gpm
• Works great in livestock lagoons



Pontoon Option

• Plastic foam filled pontoons for corrosive water
• Galvanized for long life
• Heavy 6″ upright main pipe
• Trussed boom for greater strength
• Brake winch for ease of operation
• Quick latch hook for easy hookup
