China Manufacture Rexnord Standard Omega Coupling Elastomer Coupling

Yuchen power transmission limited
  • Standard Or Nonstandard：Standard
  • Shaft Hole：10-32
  • Torque：50-70N.M
  • Bore Diameter：14mm
  • Speed：7000r,M
  • Structure：Flexible

Base Info

  • Model NO.：EC4
  • Material：Cast Steel
  • Type：Elastic Coupling
  • Transport Package：Non-Fumigation Wooden Box, by Air, by Ocean
  • Specification：EC4
  • Trademark：YC
  • Origin：China
  • HS Code：848390000
  • Production Capacity：2000,Month

Description

Omega
Coupling No.HP per /
100 rpmMaxBasic Torque Bore Dia Dimensions
(mm) speed(kgf.cm)(mm) MaxABCDEF(rpm)  Outer dia.Hub LengthSpacingHub Dia.Min Hub Dia.Total Length       (In)(Out)  (In)(Out)E20.37,500218288924364647388494E30.597,5004213410238846595084122E40.897,5006394211638846665784122E51.517,5001,0804813744959807097147E102.337,5001,6705516244959938497147E203.736,6002,67060184501365114102113165E305.885,8004,2107521058969138118125185E408.855,0006,3408524163975168146135201E50124,0008,82090279701191207152151231E60203,80014,40010531882997222165173261E70363,60025,5001203568519109235175189279E80622,00045,50015540611417149286240245377E1001371,90098,1001715331404495359267324375E1202741,800196,00019063515256106448305360411
China Manufacture Rexnord Standard Omega Coupling Elastomer Coupling

China Manufacture Rexnord Standard Omega Coupling Elastomer Coupling

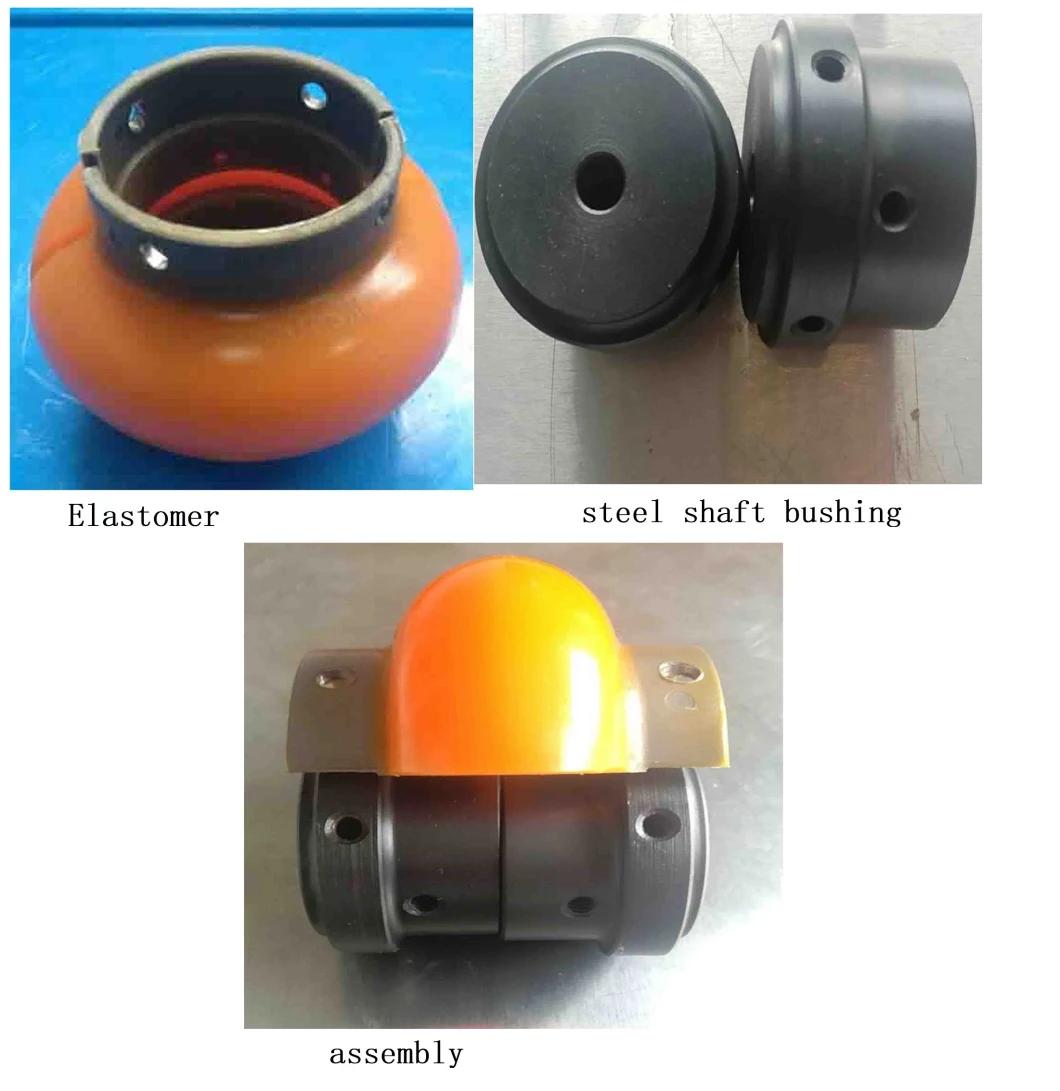

Coupling and steel hub assembly
 China Manufacture Rexnord Standard Omega Coupling Elastomer Coupling




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 30%TT in advance. 70% T/T before shippment
