Power Transmission Parts

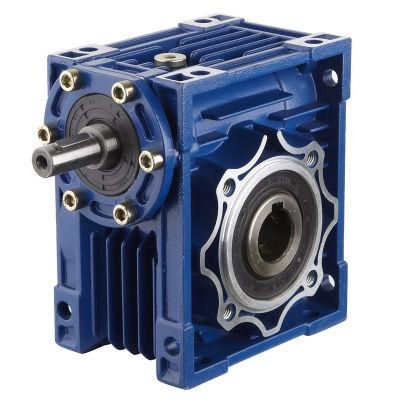

Transmission Gearbox Speed Reducer

Taizhou Sihai Machinery Co., Ltd.
  • Application:Motor
  • Hardness:Hardened
  • Type:Worm and Wormwheel
  • Motor Power:0.06kw-15kw
  • Input Speed:1400 Rpm or Other
  • Speed Ratio:5 ,7.5 ,10 ,15 ,20 ,25 ,30 ,40 ,50,60 ,80 ,100

Base Info

  • Output Torque:2.6n.M-1195n.M
  • Motor Coupling:Flange or Shaft
  • Color:Blue, Silver or Customised
  • Quantity Control:ISO 9001
  • Material:Aluminium
  • Manipulate Way:Semi-Automatic Manipulation
  • Manufacturing Method:Rolling Gear
  • Toothed Portion Shape:Bevel Wheel
  • Changes Way:Mixed
  • Transport Package:Carton and Wood Pallet
  • Specification:CE
  • Trademark:CHENXIN
  • Origin:Zhejiang. China
  • HS Code:8483409090
  • Production Capacity:400, 000 PCS ,Per Year

Description


ModelRV025 030 040 050 063 075 090 110 130 150Single unit versions
NMRV - fitted for motor flanged coupling,
NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
 Power0.06----15KW  Single unit reduction ratio 1:5 7.5 10 15 20 25 30 40 50 60 80 100 Output torque 2.6---1195N.M Worm shaft material 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm Worm wheel material  worm mandrel is HT250,and worm ring gear,ZQSn10-1,hardness is 60HRC

After-sale service:
One year warranty,subject to proper operation and installation;free technical support all the time.
