Industrial Flexible High-Performance Roller Chain Couplings for Transmission Equipment
XIAMEN GRANVILLE MECHANICAL & ELECTRICAL CO., LTD.- Standard Or Nonstandard：Standard
- Structure：Flexible
- Material：Stainless Steel
- Type：Universal Coupling
- Transport Package：Industrial Packing
- Specification：Please Check in the Description
Base Info
- Model NO.：Roller Chain Couplings
- Trademark：GIL or Be Customized
- Origin：China
Description
FEATURESManufactured according to relevant industrial standards
Available in many sizes, ratings, and product types, including flexible shaft couplings and OK couplings
Fabricated from a variety of high-grade steel
BENEFITS
Several surface treatment processes protect against corrosion
Customized products are available
Large couplings withstand very high torque
Flexible shaft couplings compensate for shaft misalignment
With more than 10 years in the power transmission industry, we are committed to the ongoing development and advancement of our products and services. Our focus on innovation is reflected in our continuously upgraded and modernized facilities, which allow us to meet the evolving needs of the market. Our state-of-the-art power transmission technology includes a selection of roller chain couplings that are ideal for a broad range of coupling applications. Our chain couplings are engineered to excel in any application you need, with exceptional flexibility, strength, and a surprisingly simple assembly.

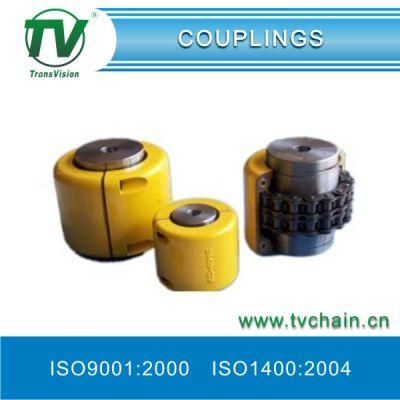

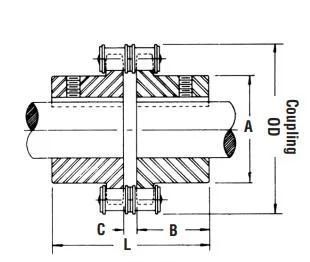

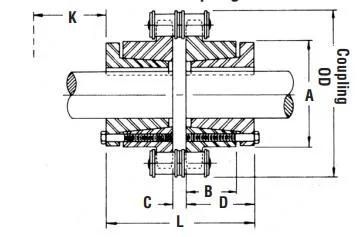

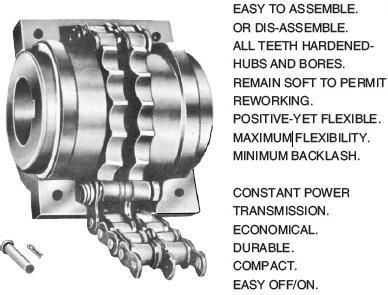

ABOUT ROLLER CHAIN COUPLINGSA roller chain coupling is a mechanical device composed of a double-strand roller chain and two modified sprockets. The design is simple and highly effective, despite its small size, and is composed of a robust chain and specially cut, hardened-tooth sprockets that allow a high amount of torque to be transmitted.
BENEFITS OF GIL'S ROLLER CHAIN COUPLINGS
COMPACT AND POWERFUL
In a roller chain coupling, torque is distributed across the combined mating surfaces of each of the chain and sprocket pitches, which allows the coupling to handle a high amount of torque for its size. The chain connects closely with the sprockets, for a highly compact and lightweight coupling that transmits torque with the utmost efficiency.
SAFE AND SMART
Our compact roller chain couplings are housed in an aluminum casing that clamps to the sprocket hubs and rotates with the body of the coupling without the need for bolts or other projections. The coupling chain itself is easy to install and remove using a single connecting pin, so you save on installation labor and downtime.
EASY ALIGNMENT
When working with shafts in a drive, traditional rigid couplings require extremely precise alignment between the coupled shafts. Roller chain couplings introduce much-needed flexibility with clearances both in the chain and between the chain and sprocket teeth. With this added mobility, even with minor misalignment, chain couplings can operate in a smooth and responsive manner, reducing the potential for overheating and wear common in more rigid coupling designs. The operation of roller chain couplings is less affected by unavoidable shaft expansion and contraction. The flexibility and easy alignment of the drive shafts, when using chain couplings, will save time and money on equipment repairs and replacements.
HOW TO INSTALL A ROLLER CHAIN COUPLING
Install oil seal to each hub
Adjust the alignment of the shafts and coupling components
Adjust the distance between the sprocket faces
Thoroughly lubricate the coupling chain
Install chain to couplings using a single-pin connecting link
Firmly close and fasten the cover of the coupling (optional, depending on operating conditions)
CHOOSE GIL FOR YOUR POWER TRANSMISSION NEEDS
To ensure optimal operation of low- or medium-speed, high-torque transmission applications, install GIL's roller chain couplings. At GIL, we pride ourselves on providing the latest in power transmission technology. Our broad global presence allows us to serve customers almost anywhere in the world quickly and effectively.
Granville bearing manufacturer in the production of electric motor grade deep groove ball bearings, the company is committed to developing all kinds of precision radial ball bearings with an inner diameter of 2mm-100mm.

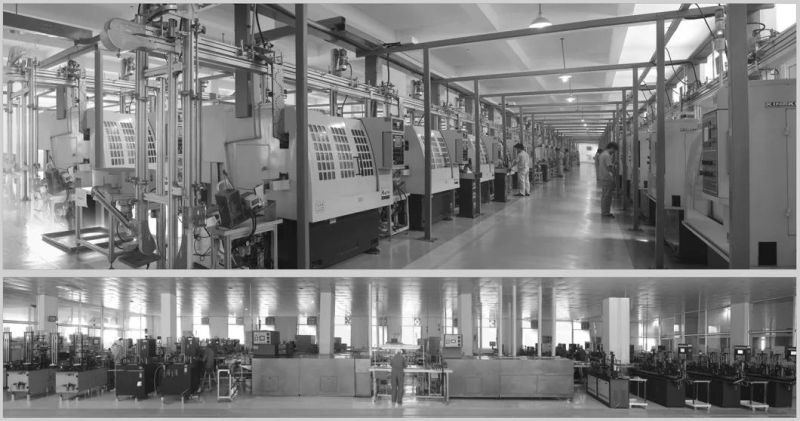

The factory covers an area of 58000 square meters, the company has advanced assembly lines and a perfect quality testing center. After more than ten years of management and innovation, with more than 120 automatic production lines, various kinds of testing, and inspection instruments, with the annual production capacity of 160 million sets of reliable high precision quality bearings.
The comprehensive application of automation production lines is a premise to ensure product's stable quality, what's more, it is a mark that the enterprises improve to digital management modern high-tech manufacturer.
Seiko quality, the pursuit of excellence: the control and improvement of quality is the constant pursuit of Granville, in strict accordance with the system of the provisions of the quality of each process.
APQP: product quality advance planning
SPC: Statistical process control
MSA: Measurement system analysis
FMEA: Analysis of potential failure modes and consequences
PPAP: Production part approval procedure
In the factory testing laboratories, various bearing parts are examined in detail. The factory has its own professional bearing life tester, after bearing life and durability test, our bearings have the advantages of long service life, and high durability. We are keeping an introduction of the latest measurement and testing equipment. Quality procedures are based on extensive, repeatedly carried out product tests - both before inclusion in the range and after.
The Granville manufacturer takes her every effort in purchasing the most advanced bearing process equipment, automatic facilities are widely used in the factory and we keep investing to improve more.
Levels Applications Materials

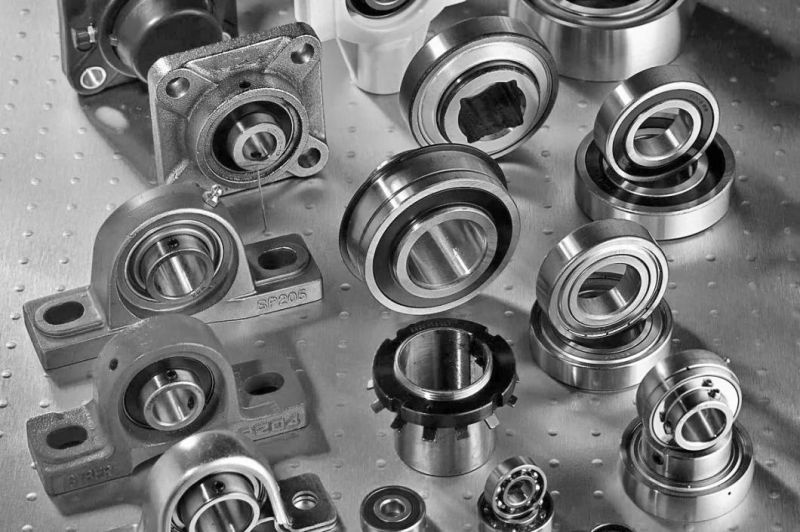

We manufacture GIL bearings, the advantage in manufacturing electric motor quality deep groove ball bearings up to ABEC-3, Z3-V3, ABEC-5 Z4-V4 level; A reliable production resource of high-quality repair parts for the aftermarket operations of automotive and light truck manufacturers worldwide, over 1000 kits includes hub assemblies and three generations of wheel bearing designs; Granville foundry makes an extensive and full line of mounted bearing units and housings in industry-standard and custom configurations. Casting iron, ductile iron, stainless steel, and plastic materials are available.
Based on our experienced team and strict, effective supply chain management, Granville products deliver premium quality, and performance our customers have relied on for years. From a full range of bearings, mounted bearing units, power transmission products, and related markets around the world, we provide the industry's most comprehensive range of qualified products available today.

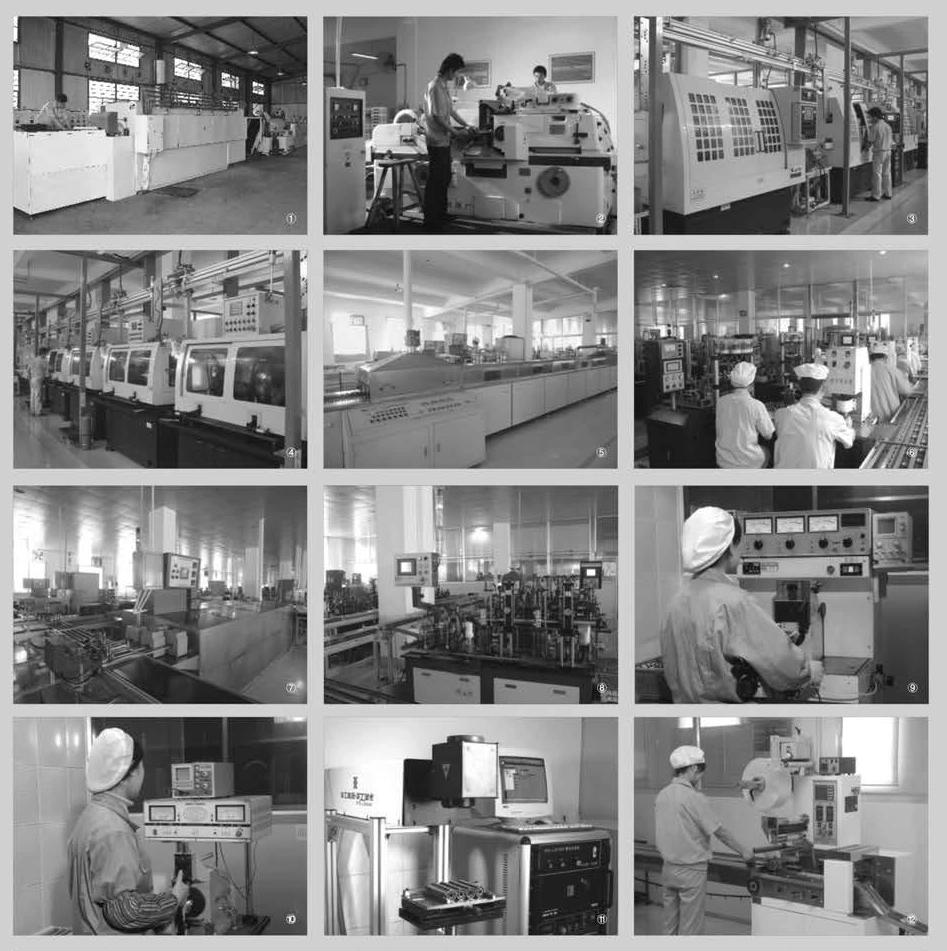

Advantage Manufacturing Processesand Quality Control:01 Heat Treatment
02 Centerless Grinding Machine 11200 (most advanced)
03 Automatic Production Lines for Raceway
04 Automatic Production Lines for Raceway
05 Ultrasonic Cleaning of Rings
06 Automatic Assembly
07 Ultrasonic Cleaning of Bearings
08 Automatic Greasing, Seals Pressing
09 Measurement of Bearing Vibration (Acceleration)
10 Measurement of Bearing Vibration (Speed)
11 Laser Marking
12 Automatic Packing
*Could you make a brief introduction to your all series of products?
Yes, we stock and sell factory-warrantied mechanical, electrical, and fluid-driven equipment such as bearings, belts, drives, motors, gears, couplings, clutches and brakes, linear motion, and hydraulics and pneumatics.
*How about your sales group?
At Granville, we understand a competent team makes your job easier, so we have established a group of employees who represent our resourcefulness and commitment to working hard to make sure your unique challenges are handled right the first time.
*What's your solutions for maximizing customers' benefits?
Our goal is to have your stock requirements on-hand when you need them. Through our storeroom surveys, in-depth communication, and usage analysis, we can reduce your organization's inventory cost, supply room costs, and turn-around time.
*What's your shipping document and documents of payment?
Our usual practice is FOB Shanghai & T/T, and we could adjust them for your requirements.
*What's the most convenient way to get your free quotation?
Please contact Stacy with your requirements (or Copy the contents of the table and fill in it with your information)
