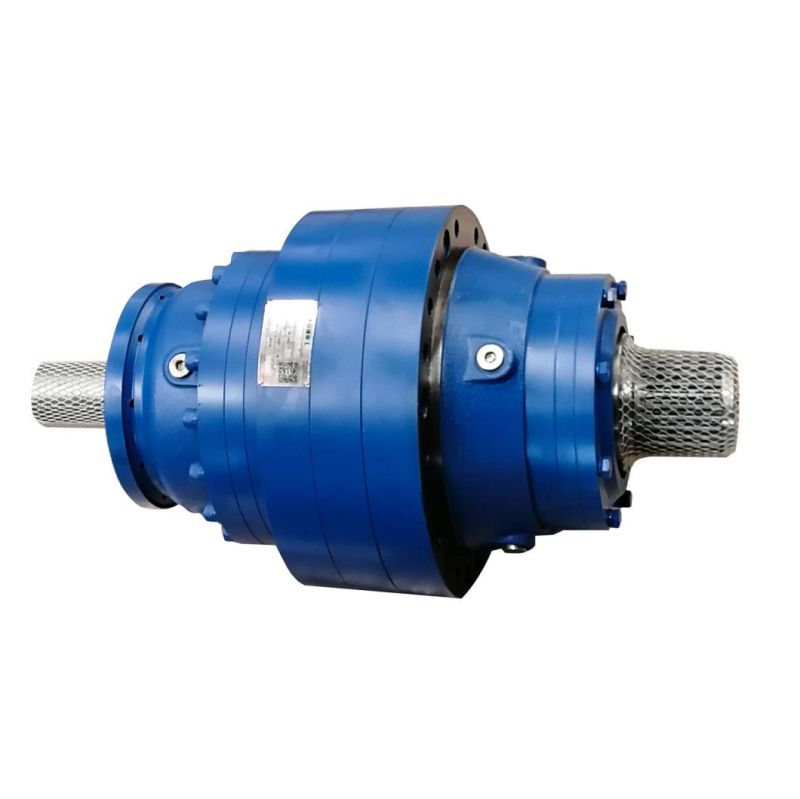

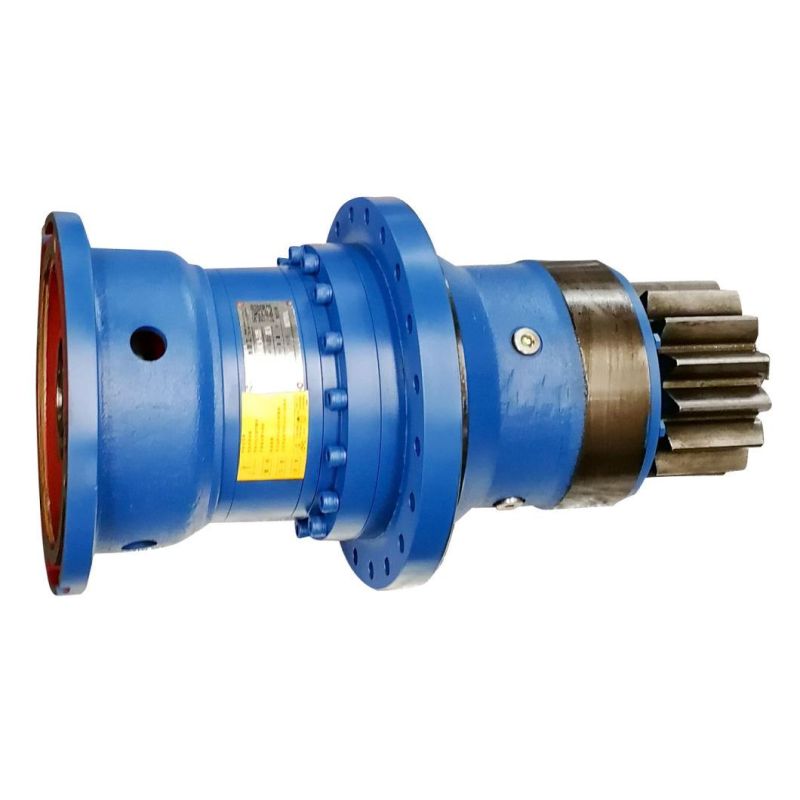

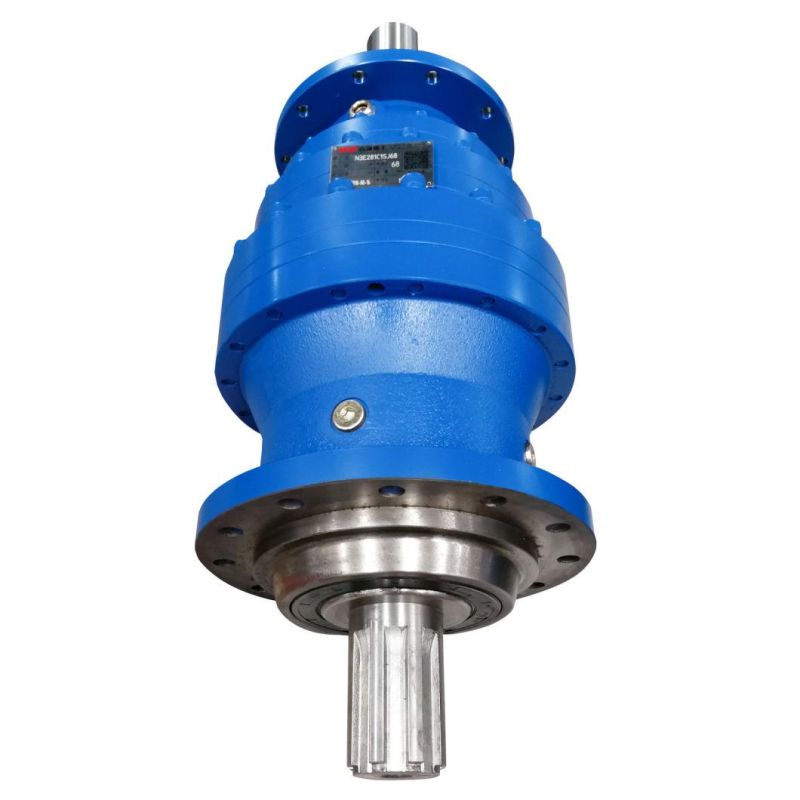

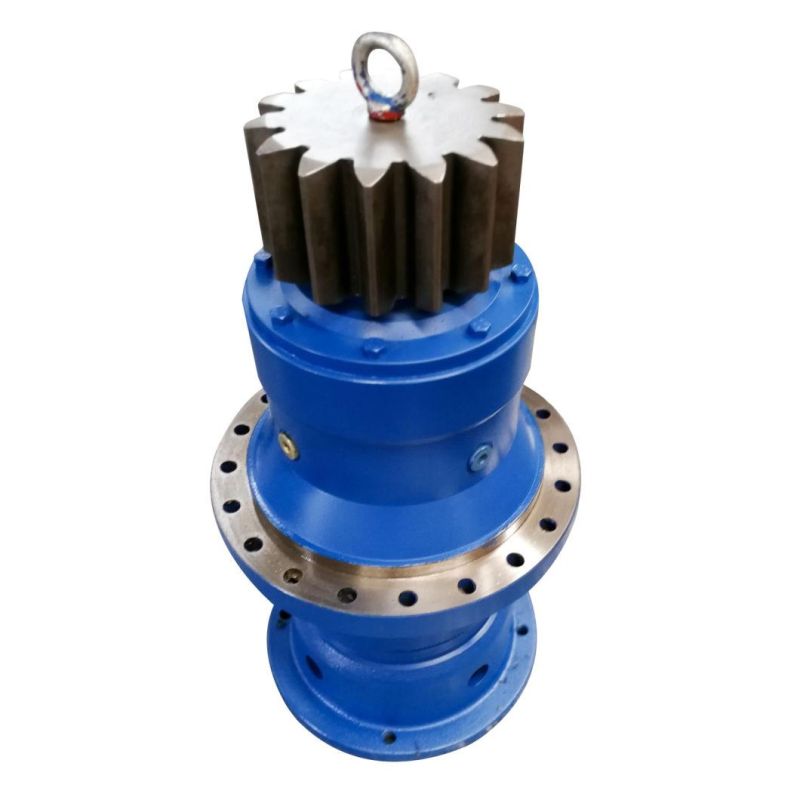

  Industrial Speed Reducer Planetary Gearbox Application for Construction Machinery

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Machinery, Marine, Agricultural Machinery, Industry
  • Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened
  • Installation：Foot Mounted
  • Step：Three-Step

Base Info

  • Type：Circular Gear
  • Diameter：up to 885mm
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cut Gear
  • Toothed Portion Shape：Spur Gear
  • Advantage：Equivalent to Brevini Planetary Gear Reducer
  • Transport Package：Plywooe Case or Steel Cage
  • Specification：ISO9001: 2008
  • Trademark：SGR
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

Main motor optionsThermistors and thermostat sensorsSplined shaftIndependent forced coolingFemale splined shaftLine driver and push-pull incremental encoderHollow shaft with shrink disc

N series planetary gearbox torque sheet with models


Gear unit size200201240241280281353/354355400401
Normal output torque
T2N[Nm]		15002000350040004300730013000160002000023000
Gear unit size428429445446510542543695810885
Normal output torque
T2N[Nm]		260003000032000430006300075000100000150000300000420000
