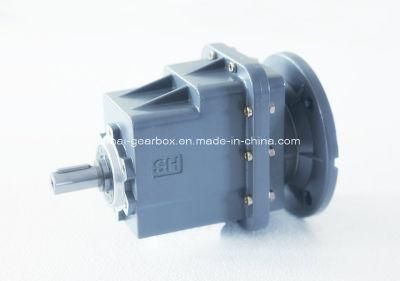

Src Trc Helical Gear Units

Taizhou Sihai Machinery Co., Ltd.
  • Application：Industry
  • Material：Aluminium
  • Hardness：Hardened
  • Manipulate Way：Semi-Automatic Manipulation
  • Manufacturing Method：Rolling Gear
  • Toothed Portion Shape：Double Helical Gear

Base Info

  • Model NO.：SRC01-SRC04
  • Changes Way：Mixed
  • Type：Non-circular Gear
  • Input Speed：1400rpm
  • Power：0.12kw-4kw
  • Output Torque：3-601 N.M
  • Model：Src01,Src02,Src03,Src04
  • Transmission：Helical
  • Reduction：Two-Staged
  • Warranty：One Year and Free Technical Support
  • Coupled Flange Type：B5 or B14
  • Customised：Available for Flange and Shaft
  • Foot Mounted：Available to Request
  • Transport Package：1 Set , Carton, Several Cartons , Wooden Pallet
  • Specification：ISO9001
  • Trademark：Chenxin
  • Origin：Zhejiang Taizhou
  • HS Code：8483409000
  • Production Capacity：10000 Per,Month

Description


Input couplingFlange and shaftOutput couplingFlange and shaftFoot mounted Available for Motovario and Bonfiglioli foot mounted specs. The letter,B in the data sheet of foot code is for Bonfiglioli and M for Motovario Range of reduction ratios 3.74---51.30 Motor power coupled 0.12---4KW Version
1.Flange coupled,shaft output,with foot mounted,marked as SRC...P


2.Shaft coupled and output,with foot mounted,marked as SRC...HS


3.Flange coupled,shaft output,no foot mounted,marked as SRCZ...P


4.Shaft coupled and output,no foot mounted,marked as SRCZ...HS


5.Flange coupled and output,no foot mounted,marked as SRCF...P


6.Shaft coupled,flange output,no foot mounted,marked as SRCF...HS
