• Model NO.：AV10, AV13, AV15, AV17, AV22
• Static Conductive：ISO1813
• Outerside Fabric：Polyester Cotton Canvas
• Reinforcement：Polyester Hard Cord
• Bottom Cover：Cr , EPDM, Polyester, Kevlar
• Brand Name：Skyline,Gpbelt,OEM
• Packing Means：Plastic Bag, Carton
• Color：Black
• Usage：Power Transmission
• Name：Raw Edge,Cogged,Plain
• Transport Package：Plastic Bag, Carton
• Specification：AX80, XPZ1550
• Trademark：GPBELT
• Origin：China
• HS Code：4010390000
• Production Capacity：50000PCS,Day

Basic Info.

Model NO. AV10, AV13, AV15, AV17, AV22 Static Conductive ISO1813 Outerside Fabric Polyester Cotton Canvas Reinforcement Polyester Hard Cord Bottom Cover Cr / EPDM, Polyester, Kevlar Brand Name Skyline/Gpbelt/OEM Packing Means Plastic Bag/ Carton Color Black Usage Power Transmission Name Raw Edge/Cogged/Plain Transport Package Plastic Bag/ Carton Specification AX80, XPZ1550 Trademark GPBELT Origin China HS Code 4010390000 Production Capacity 50000PCS/Day

Product Description

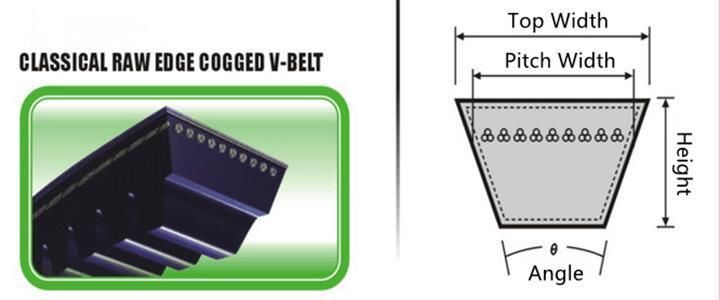

CLASSICAL RAW EDGE V BELT


Feature

. Greater transmission power than classical v belt

. Large friction coefficient, small friction loss

. Absorb transmission vibration, low noise, long service

. Fatigue endurance reaches one hundred million times.

. Temperature range from -50ºC to 120ºC

. Oil, heat, Ozone, abrasive resistance, anti-statistics


.Type	Top width	Pitch width	Height	Angel	Length conversion	Length Range inch	Length Range mm
.ZX	10	8.5	6	40º	Li=Ld-22	20"-100"	508-2540
.AX	13	11	8		Li=Ld-30	20"-200"	508-5080
.BX	17	14	11		Li=Ld-40	20"-200"	508-5080
.CX	22	19	14		Li=Ld-58	20"-200"	508-5080

Marking

.AX 1245Li 1275Ld:    AX49 means type AX (toothed), its inside length is 1245mm, its pitch length is 1275mm, and its inside length is 49inches.

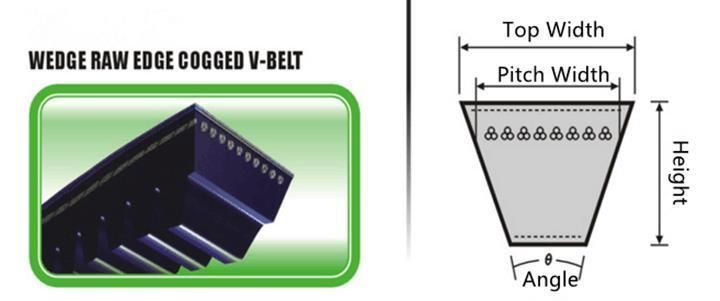

WEDGE RAW EDGE V BELT

Features

.. Greater transmission power than classical v belt

. Large friction coefficient, small friction loss

. Absorb transmission vibration, low noise, long service

. Fatigue endurance reaches one hundred million times.

. Temperature range from -50ºC to 120ºC

. Oil, heat, Ozone, abrasive resistance, anti-statistics

Material Option

Rubber: CR rubber, EPDM rubber

CR rubber has a good performance of oil resistance and chemical resistance, a certain of heat and cold resistance. But EPDM rubber has better

properties in heat resistance and ozone resistance, which means longer working life than CR type.

Mark

Wedge raw edge v belts fall into two categories. The metric SP series comprise of XPZ, XPA, XPB, XPC. The inch series include 3vx, 5vx, 8vx models. V belts of these types are marked according to the outer length of the factory v belt. Specific noting shall be made on the order list of the customer, if the customer has special requirement. The length conversion table is available for conversion between various models.




Example mark

XPZ 1283La 1270Ld 3vx500 means that its type is XPZ, outer length is 1283mm, pitch length is 1270mm, and it is corresponding to 3vx500.


Type	Top width	Pitch width	Height	Angel	Length conversion	Length Range inch	Length Range mm
.3VX	9.5	/	8	40º	La=Li+50	20"-200"	508-5080
.5VX	16	/	13.5		La=Li+82	30"-200"	762-5080
.XPZ	10	8.5	8		La=Li+50	20"-200"	508-5080
.XPA	13	11	10		La=Li+63	20"-200"	508-5080
.XPB	16.3	14	14		La=Li+82	30"-200"	762-5080
.XPC	22	19	18		La=Li+113	30"-200"	762-5080

FAQ

Q1.  Can I have a sample order?
        Yes, any sample order is welcome to know the quality of our products.

Q2.  What about the lead time of the sample or the final order?
        2-5 days for normal sample.
        20-30 days for a formal order.

Q3. How much is the minimum quantity for each item in one order?
       One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.

Q4. Is it possible to print our logo or brand on the belt?
       Yes, we can print your logo or design on the belt after receipt of your formal authorization                 .letter of the logo or your brand.

Q5. Do you offer the guarantee for your product?
       Yes, usually we offer one year warranty for all of our products.
