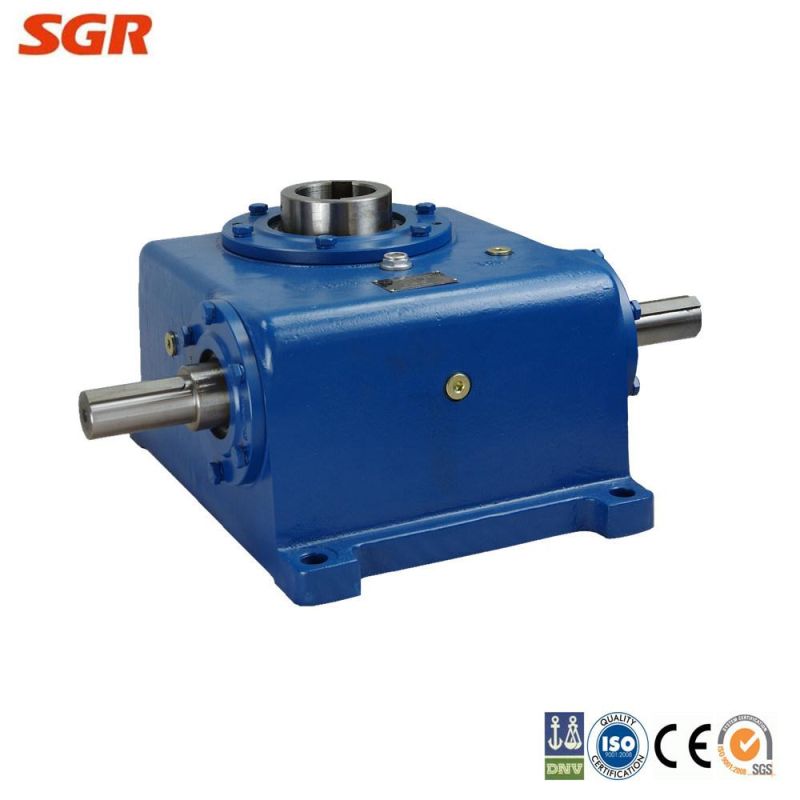

Cast Iron Reducer Double Enveloping Worm Gearbox Transmission with Flange Mounted

Shanghai SGR Heavy Industry Machinery Co., Ltd.
  • Application：Motor, Machinery, Marine, Agricultural Machinery
  • Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Single-Step

Base Info

  • Model NO.：CUA,CFA
  • Transport Package：Plywood Case
  • Specification：54*64*75
  • Trademark：SGR
  • Origin：China
  • HS Code：850152000
  • Production Capacity：5000PCS,Month

Description

RatioPermitted TorqueWeight(CUW) input Solid(h6)(mm)(mm)(kw)(Nm)(KGS)C_ 10028190481.41~11.510 ~ 62683-109442C_ 12532225552.42~19.710 ~ 621170~222165C_ 14038255653.94~25.910 ~ 621555 ~ 347385C_ 16042290704.39~35.710 ~ 622143 ~4212120C_ 18048320805.83~47.510 ~ 622812 ~ 5387170C_ 20055350907.52 ~61.210 ~ 623624 ~6859220C_ 225603901009.9~81.410 ~ 624872 ~ 9224290C_ 2506543011012.9 ~10510 ~ 626284~11892380C_ 2807048012016.9 ~ 13810 ~ 628347 ~ 15820520C_ 3157553014022.5 ~18310 ~ 6211068~ 19450700C_ 3558059515030~24510 ~ 6214818 ~28014 1030C_ 4009066017032.1 ~26110 ~ 6215786~299181400C_ 45010074019042.6 ~34710 ~ 6220998~398811980C_ 50011081521054.9 ~ 44810 ~ 6227097~511802700
