• Model NO.：MN200-810
• Type：Planetary Gear Box
• Delivery：60days
• Warranty：One Year
• Color：Blue
• Input：Flange,Solid Shaft
• Output：Male Splined Shaft
• Fittings：with Torque Arm
• Transport Package：Wooden Case
• Specification：According to actual production
• Trademark：SGR
• Origin：Shanghai, China
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Model NO. MN200-810 Type Planetary Gear Box Delivery 60days Warranty One Year Color Blue Input Flange/Solid Shaft Output Male Splined Shaft Fittings with Torque Arm Transport Package Wooden Case Specification According to actual production Trademark SGR Origin Shanghai, China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

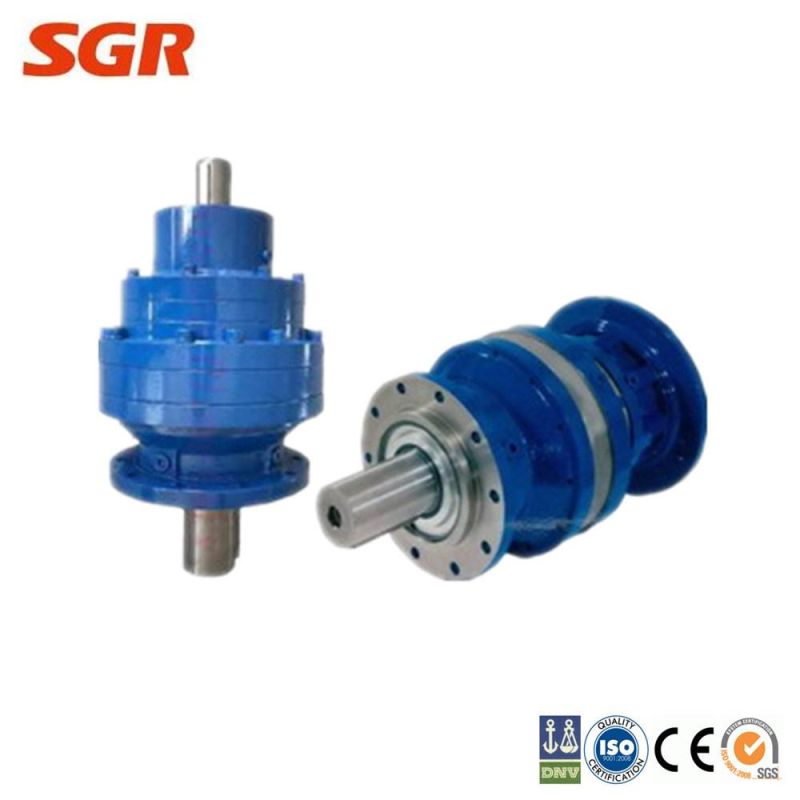

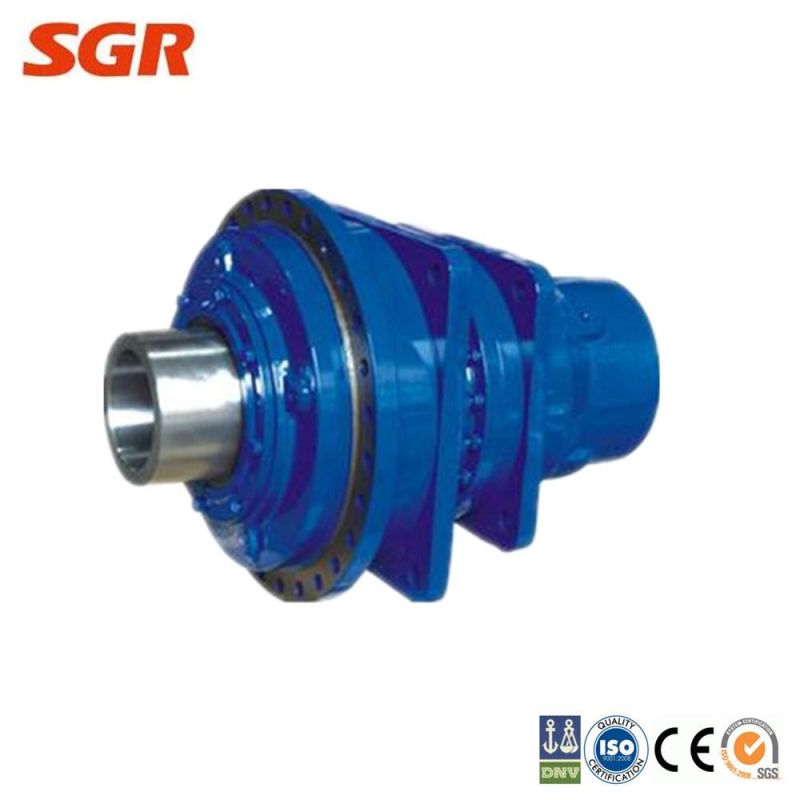

Transmission  Planetary Gearbox  for Machinery Equipment Application For Mixer

Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of the flange, foot, or shaft mounting solutions


Characteristic of Foot Mounted High Torque Planetary Gearbox :

1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing

Ratio	3.15:1 to 9000:1
Reduction Stages	up to 6 reduction stages in one gearbox
Nominal Output Torque	up to 800,000N.m

Packaging & Shipping

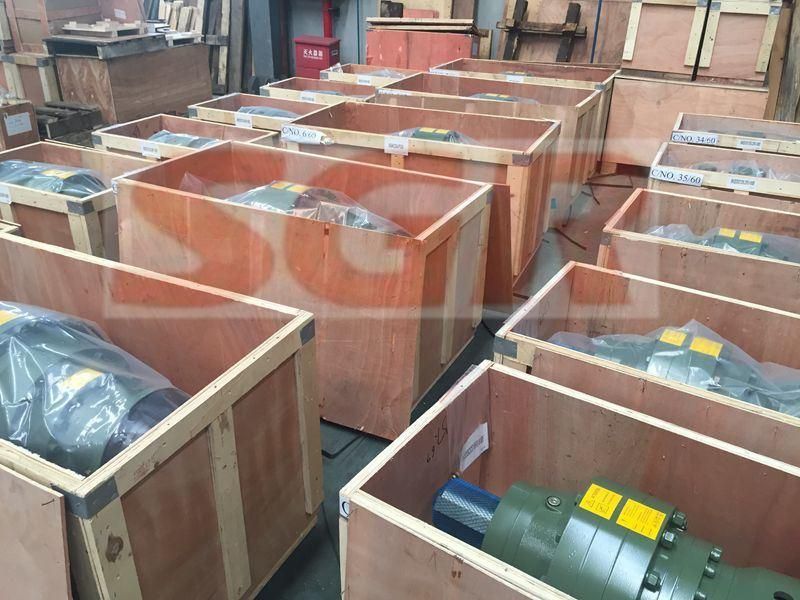

Package :

SGR gearbox use standard wood case per gear motor | gear unit.

hipping :

According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.

You Appoint, We Service!
