High Efficiency, Low Noise, Smooth Operation Worm Gear Reducer, Designed for Extruding Machine Application
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Machinery
- Function：Distribution Power, Change Drive Torque, Speed Reduction
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Single-Step
Base Info
- Type：Planetary Gear Box
- Transport Package：Plywood Case
- Specification：ISO9001: 2008
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
RatioPermitted Torque Weight (CUW) input Solid(h6) (mm) (mm) (kw) (Nm) (KGS) C_ 100 28 190 48 1.41~11.5 10 ~ 62 683-1094 42 C_ 125 32 225 55 2.42~19.7 10 ~ 62 1170~2221 65 C_ 140 38 255 65 3.94~25.9 10 ~ 62 1555 ~ 3473 85 C_ 160 42 290 70 4.39~35.7 10 ~ 62 2143 ~4212 120 C_ 180 48 320 80 5.83~47.5 10 ~ 62 2812 ~ 5387 170 C_ 200 55 350 90 7.52 ~61.2 10 ~ 62 3624 ~6859 220 C_ 225 60 390 100 9.9~81.4 10 ~ 62 4872 ~ 9224 290 C_ 250 65 430 110 12.9 ~105 10 ~ 62 6284~11892 380 C_ 280 70 480 120 16.9 ~ 138 10 ~ 62 8347 ~ 15820 520 C_ 315 75 530 140 22.5 ~183 10 ~ 62 11068~ 19450 700 C_ 355 80 595 150 30~245 10 ~ 62 14818 ~28014 1030 C_ 400 90 660 170 32.1 ~261 10 ~ 62 15786~29918 1400 C_ 450 100 740 190 42.6 ~347 10 ~ 62 20998~39881 1980 C_ 500 110 815 210 54.9 ~ 448 10 ~ 62 27097~51180 2700

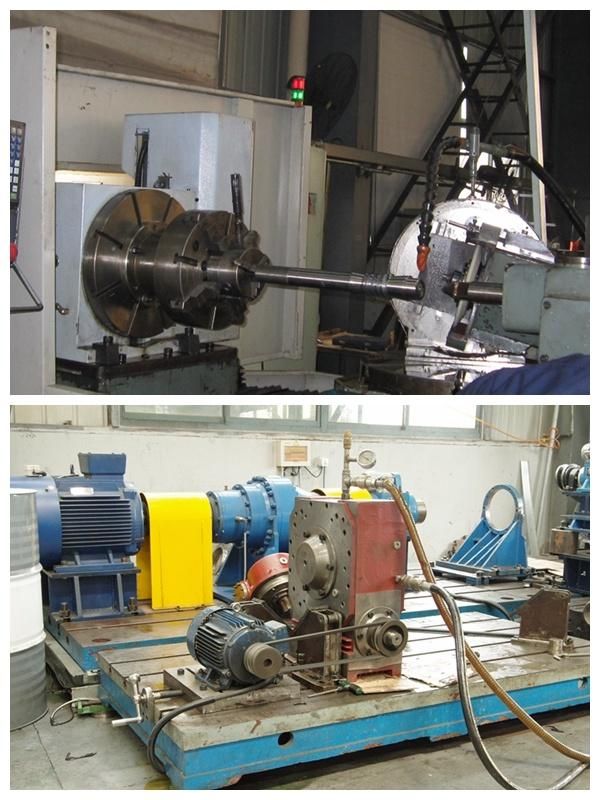

Production pictures:
Packing Pictures :

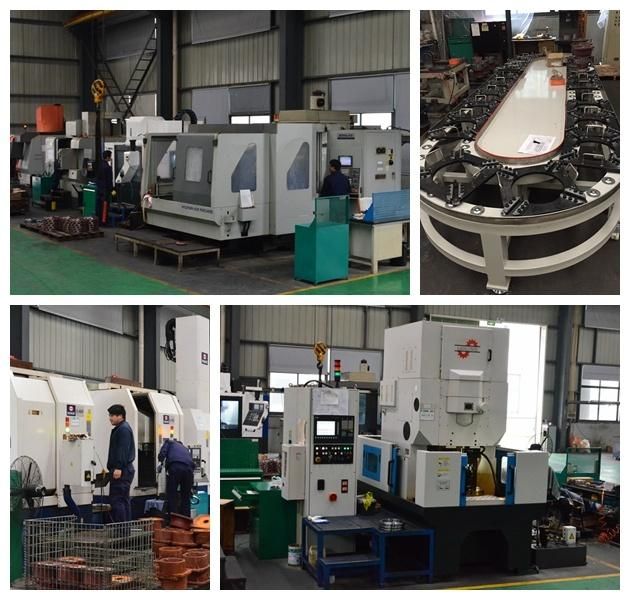

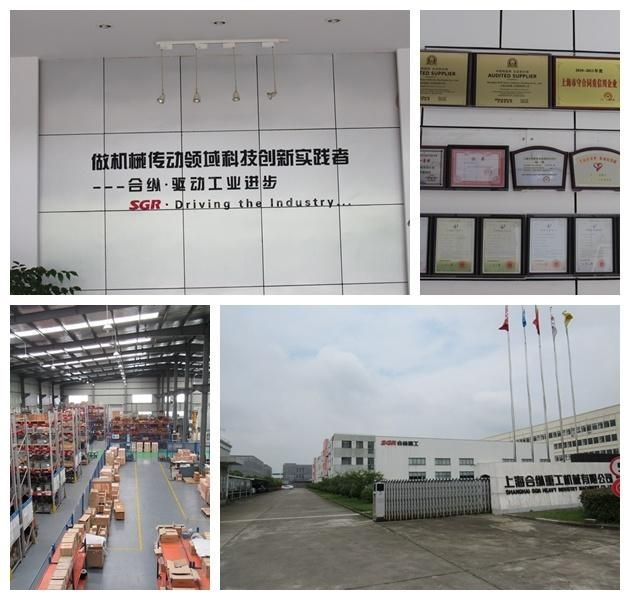

Factory
---------------------------------------------------------------------------------------------------------------------------------------------
FAQ:
1.Are you a factory or trader ?
We are a professional factory which has 20 years history specialized in gear transmission .
2.MOQ:
Our MOQ is 1pcs. However there is one handling cost $150 for the single order which less than $3000.00
3. Warranty
Our warranty is 12months
4. Payment term
100% T/T in advance and LC at sight .
5. Do you accept customization ?
YES.SGR have strong R&D team, we can provide customizable service according to requirements.
6. Packing
Generally we use standard export plywood case to arrange the shipment .
7. Delivery time
In normal ,time of delivery is 30days after receiving the prepayment .
8. What kinds of certification do you use ?
DNV-ISO9001:2008, SGS,CE etc, And new products patent.

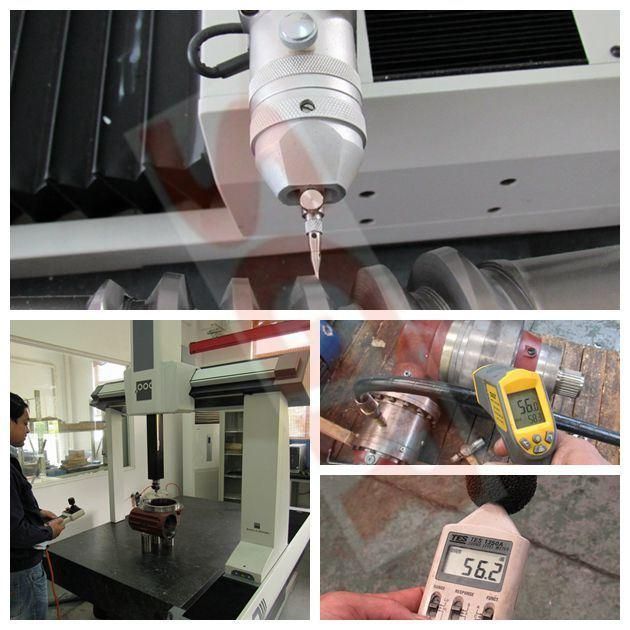

9. What kinds of inspection you do before shipment ?
We do temperature test, noise, and oil leak inspection and commissioning before shipment.
10.How do you solve if the production have problem ?
Mostly, we don't need customer send the goods back to us. Because the cost is very high, if there meets a problem,we firstly ask for the pictures for damaged parts. And base on the pictures, we can have a basic idea for the defect reason. Our guarantee is 12 months, if during the guarantee, we can supply repair .
