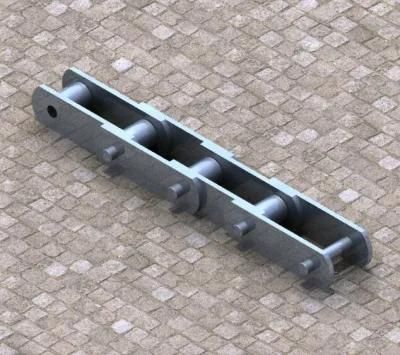

High-Intensity and High Precision and Wear Resistance Standard M Series Conveyor Chains with Attachments
Qingdao Star Machine Technology Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Surface Treatment：Polishing
- Structure：Combined Chain
- Material：Alloy
- Type：Customized Conveyor Chain
Base Info
- Model NO.：M series
- Transport Package：According to Client Requests
- Specification：M
- Trademark：SMCC
- Origin：China
- HS Code：7315119000
- Production Capacity：700000meters Per Year
Description
Chain No.P
mm L
mm G
mm F
mm W
mm h4
mm h2
mm d4
mm t/T
mm d5
mm M18F1A1-P-50 50.0 △ 46.0 44.0 72.0 24.0 18.0 6.5 2.50 - M18F2A1.02-P-50 50.0 △ 41.0 48.0 68.0 25.0 15.0 6.5 3.00 - M18F2A1F1.32-P-50 50.0 △ 42.0 44.6 64.6 22.5 15.0 6.0 3.00 - M18F4A1.02-S-50 50.0 △ 30.0 50.0 83.0 20.0 15.0 8.0 2.03 - M18F8K1.03-P-50 50.0 △ 46.0 44.0 66.6 24.0 18 8.5 2.50 - M20K1F2.02-S-50 50.0 △ 20.0 54.0 75.0 16.0 18.0 6.6 2.50 - M20A2F1-S-50 50.0 20.0 35.0 52.0 80.0 13.0 18.0 8.1 2.50 - M28F1A2-P-80 80.0 25.0 45.8 66.0 91.6 11.8 20.5 8.8 3.25 - M28F3A2-P-63 63.0 20.0 50.0 64.0 92.0 20.0 20.0 9.0 4.00 - M28F3A2-F-100 100.0 40.0 76.0 64.0 100.0 20.0 20.0 9.0 4.00 40.0 M32A1.02-P-50 50.0 △ 60.0 62.0 97.0 35.0 23.0 10.0 3.00 - M32A1F1-P-50 50.0 △ 30.0 62.0 92.0 28.0 23.0 10.0 3.00 - M32A1F2.02-PF1-50 50.0 △ 60.0 62.0 97.0 16.5 23.0 10.0 3.00 - M35F4A1.01-C-69 69.0 △ 60.0 50.0 74.0 25.5 19.0 7.0 2.50 - M40FA1.02-P-50 50.0 △ 60.0 70.0 98.0 17.5 25.0 10.0 4.00 - M40FK2F1-P-50 50.0 30.0 60.0 67.5 100.0 17.0 25.0 9.0 4.00 - M40FA2-P-50 50.0 30.0 45.0 93.0 136.0 14.5 25.0 6.5 4.00 - M40FA1F1.02-P-50 50.0 △ 35.0 54.0 104.0 20.5 25.0 10.5 4.00 - M40FA2F1.08-P-50 50.0 25.0 45.0 90.0 122.0 22.0 25.0 8.5 4.00 - M40F17A2-P-50.8 50.8 30.0 55.0 66.0 92.0 18.0 25.0 10.2 5.00/4.00 - M40F31A2.02-P-50.8 50.8 19.0 40.0 64.0 100.0 19.0 26.3 8.0 4.00 - M40F17K1.10-P-50.8 50.8 △ 55.0 66.0 92.0 18.0 25.0 10.2 5.00/4.00 - M40F5A2-S-65 65.0 25.0 45.0 90.0 122.0 24.5 30.0 8.5 4.00 - M40F10-F-76.2 76.2 22.2 38.3 76.2 106.5 19.0 26.0 9.4 4.00 40.0 M40A2F2-F-80 80.0 20.0 50.0 70.0 112.0 35.0 25.0 9.0 3.50 45.0 M40F1-P-125 125.0 50.0 90.0 100.0 140.0 36.0 50.0 13.0 6.00 - M56F1-P-100 100.0 40.0 70.0 67.5 96.6 35.0 25.0 9.0 4.00 - M56F2-P-100 100.0 29.7 50.0 124.0 148.0 21.5 32.0 7.0 4.00 - M56F2-F-100 100.0 29.7 50.0 124.0 148.0 21.5 32.0 7.0 4.00 50.0 M56F3-P-100 100.0 50.0 70.0 71.0 101.0 35.0 25.0 9.0 4.00 - M56F3-F.06-100 100.0 50.0 70.0 71.0 101.0 35.0 25.0 9.0 4.00 44.5 M56F8-P-100 100.0 △ 70.0 63.8 95.0 25.0 25.0 8.2 4.00 - M56F9-F1-100 100.0 40.0 70.0 68.0 96.6 25.0 32.0 9.0 5.00 45.0 M56F23-F-100 100.0 40.0 70.0 71.4 100.6 35.0 25.0 9.0 4.00 50.0 M56F38A2-P-100 100.0 40.0 60.0 70.0 100.0 20.0 25.0 9.0 4.00 - M56F6A2.02-PF1-100 100.0 40.0 70.0 71.5 92.0 55.0 25.0 6.5 4.00 - M56A2-P-125 125.0 50.0 75.0 88.0 128.0 30.0 30.0 11.0 4.00 - M56F26A2.02-F-125 125.0 50.0 75.0 88.0 128.0 30.0 30.0 9.0 4.00 50.0 M75-P100 100.0 40.0 70.0 64.0 112.0 24.9 26.0 9.0 4.00 -
