PCB Schematic Design Electronic PCBA Prototyping Electronic Board PCBA Assembly Service
Fastline Circuits Co., Limited- Standard or Nonstandard：Standard
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Application：Textile Machinery, Conveyer Equipment, Electric Cars, Motorcycle, Food Machinery, Marine
- Surface Treatment：Zinc Plating
- Material：Cast Iron
- PCB Type：Electronic PCB Assembly
Base Info
- Model NO.：pcb
- Samll Order：1 PCS Is Ok
- Board Thickness：1.6mm
- Copper Thickness：1oz
- Min Board Thickness：0.1mm Board Thickness for Single and Double Sided
- Maxi Size：1200*500mm
- Min Pad：+,- 0.1mm
- Stencil：We Do
- Componnets：We Purchase or Buy by Yourself Files
- Min Hole Size：0.075mm,3mil
- Min Conductor Width：0.05mm,2mil
- Min Conductor Spacing：0.05mm,2mil
- Outline Machining Accuracy：+,-0.10mm(4mil)
- Service：One Stop
- Leadtime：15
- Transport Package：Vacuum +Carton Packing
- Specification：UL, SGS, ROHS
- Trademark：FL
- Origin：China
- HS Code：853409000
- Production Capacity：20000 Square,Mon
Description
Material Types
Note: Base on all data received by us and must be complete and problem free, Lead time is ready to ship time.
Company Introduction
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe, and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is committed to provide superior quality products and services that consistently meet and exceed our customer's requirements on time, every time!

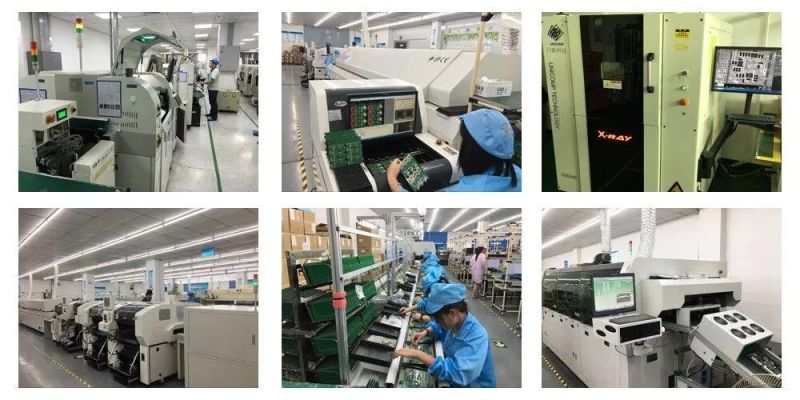

Our Factory

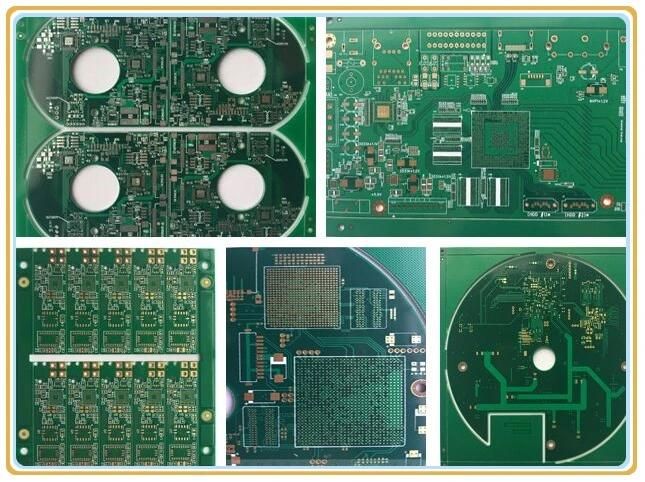

FR4 PCB

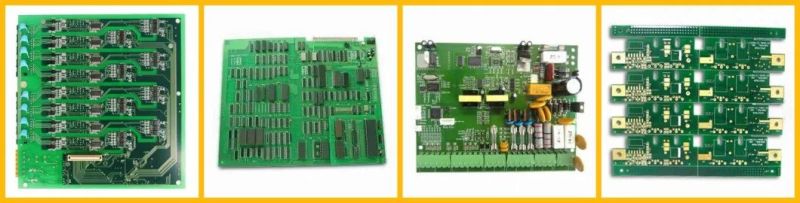

PCBA
Application of Electronic Circuit Board Cheapest Pcba Prototype Service
We have served high-quality PCBA to numerous countries, from consumer electronics to telecommunications, new energy, aerospace, automotive, etc.
Electronic Product Aerospace Communications Industry
Industrial control Car Manufacturer Military Industry
FAQ
Q1: Are you a factory or trade company?
A1: We have our own PCB manufacturing & Assembly factory.
Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome.
Q3: what file we should offer?
A3: PCB: Gerber file is better,( Protel, power PCB, PADs file), PCBA: Gerber file and BOM list.
Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5: What any other information should be offered except for file?
A5: Following specifications are needed for the quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q6: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
Q7: What is delivery terms and time?
A7: We usually use FOB terms and ship the goods in 7-30 days depending on your order quantity, customization.
More information about PCB, please contact with us!
Salesman: Cassie Qiu
Tel: +86 755 2332 9221
Fax: +86 755 2332 9659
Cellphone:+86 18028778060
Our website:http://fastlinepcb.en.made-in-china.com
