Right-Angle Planetary Gearbox with Shaft Mounted
Ma'an Shan Precise Transmission Technology Co., Ltd.- Application：Motor, Machinery, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction
- Layout：P
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Type：Planetary Gear Box
- Accuracy Class：5 ~ 6
- Size：9-34
- Power：0.4-12934
- Ratio：25 - 4000
- Nominal Output Torque：up to 260000n.M
- OEM/ODM Serivce：Available
- Transport Package：Fumigation Case or Plywood Case
- Specification：palnetary gear unit
- Trademark：PTT
- Origin：China
- HS Code：8483409000
- Production Capacity：1000pieces,Year
Description
Basic Info.
Type Planetary Gear Box Accuracy Class 5 ~ 6 Size 9-34 Power 0.4-12934 Ratio 25 - 4000 Nominal Output Torque up to 260000n.M OEM/ODM Serivce Available Transport Package Fumigation Case or Plywood Case Specification palnetary gear unit Trademark PTT Origin China HS Code 8483409000 Production Capacity 1000pieces/YearProduct Description

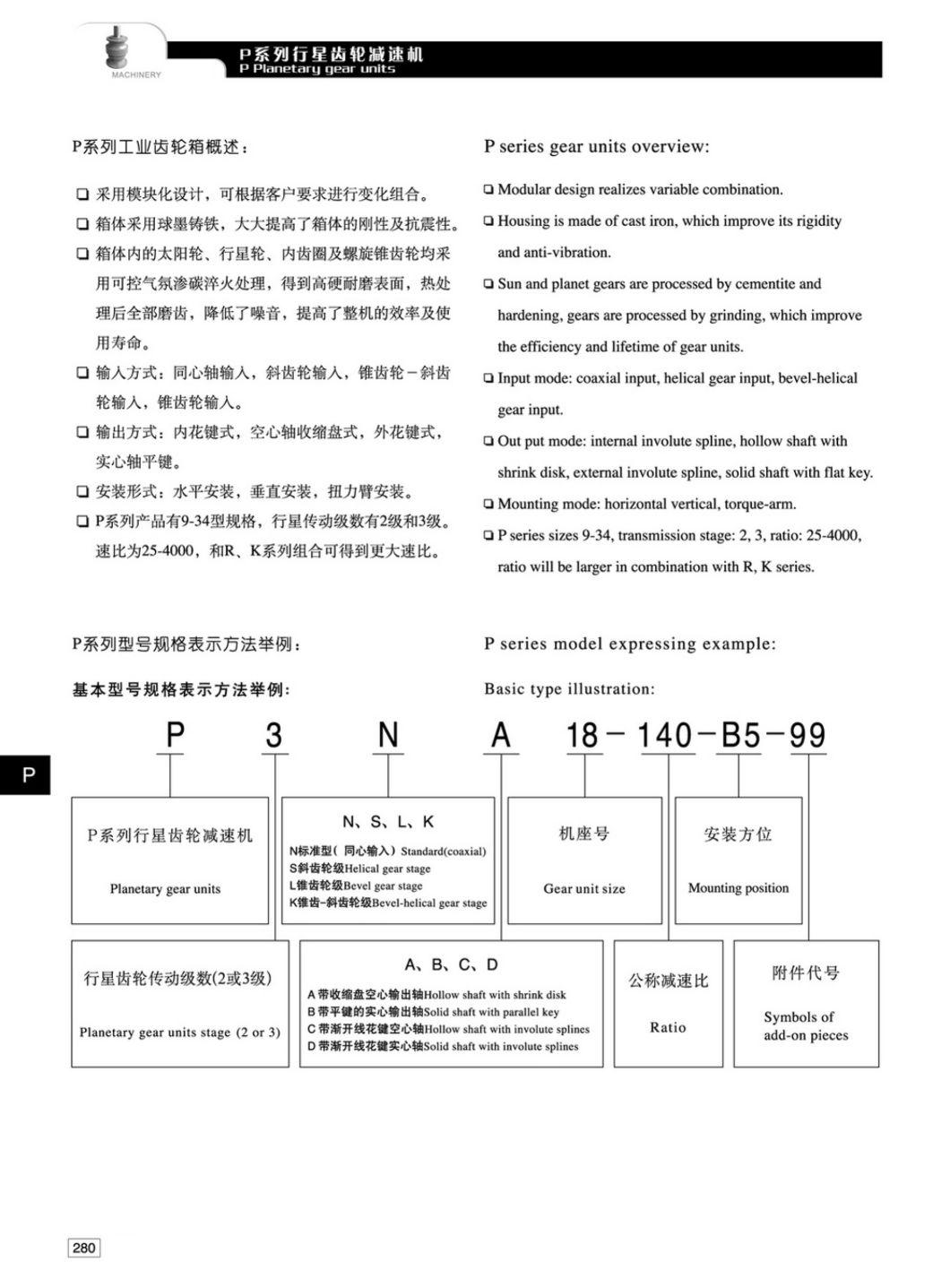

Planetary Series High Power Gear BoxHousing is made of cast iron,which improve its rigidity and anti-vibration.
Sun and plant gears are processed by cementite and hardening,gears are processes by grinding,which improve the efficiency and lifetime of the gearbox.
Input mode:coaxial input,helical gear input,bevel-helical gear input.
Output mode:internal involute spline,hollow shaft with shrink disk,external involute spline,solid shaft with flat key.
Mounting mode:Horizonal vertical,torque-arm.
P series sizes 9~34 transmission stage:2~3 ratio:25~4000
Ratio will be larger in combination with H,R,K series.
RFQ
Q:Are you trading company or manufacturer?
A: We are manufacturer with over 20 years' experience.
Q: How long is your delivery time?
A: Generally it is within 10 days if the goods are in stock, for goods produced as per order, it is within 35 days after confirmation of order.
Q: How long should I wait for the feedback after I send the enquiry?
A: Normally within 12 hours.
Q: What information should I give you to confirm the product?
A: Model/Size, Transmission Ratio, Speed, Shaft directions & Order quantity etc.
Q: Hong long is your product warranty?
A: We offer 12 months warranty from departure date of the goods.
Q: What is your payment terms? T/T 100% in advance for amount less than USD10000.-, 30% T/T in advance , balance before shipment for amount above USD10000.
