HRC Coupling for Two Shaft Joint

Yuchen power transmission limited
  • Standard Or Nonstandard：Standard
  • Shaft Hole：10-32
  • Torque：70-80N.M
  • Bore Diameter：14mm
  • Speed：4000r,M
  • Structure：Rigid

Base Info

  • Model NO.：HRC 70
  • Material：Cast Iron
  • Type：Diaphragm Coupling
  • Transport Package：Wood Boxes
  • Specification：hrc 70
  • Trademark：YC
  • Origin：China
  • HS Code：8483900090
  • Production Capacity：10000PCS,Month

Description

HRC Type BCoupling SizeMax.BorePilot BoreKeyway screw sizeHub WidthShoulder Width70328M623.520904210M630.5261105510M1045.5371306015M1047.5391507020M1056.5461808025M1070.55823010025M1290.57728011530M16105.590HRC Type F&Hcoupling SizeTaper Bush sizeMax. BoreCD  mminchmmmm701008251"23.520901108281 1/8"23.519.51101610421 5/8"26.518.51301610421 5/8"26.5181502012502"33.523.51802517652 1/2"46.534.52303020753"52.539.52803525953 11/16"66.551

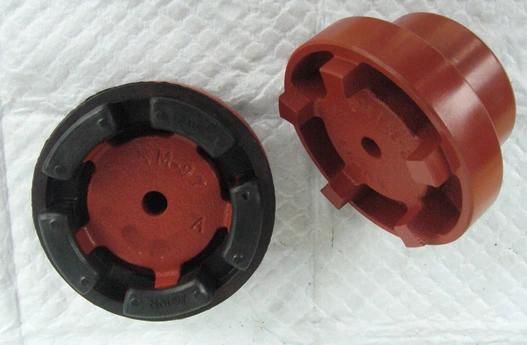

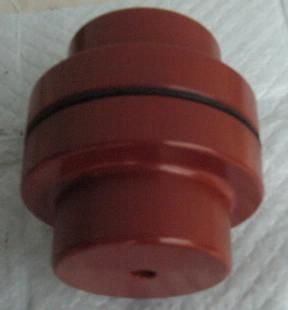

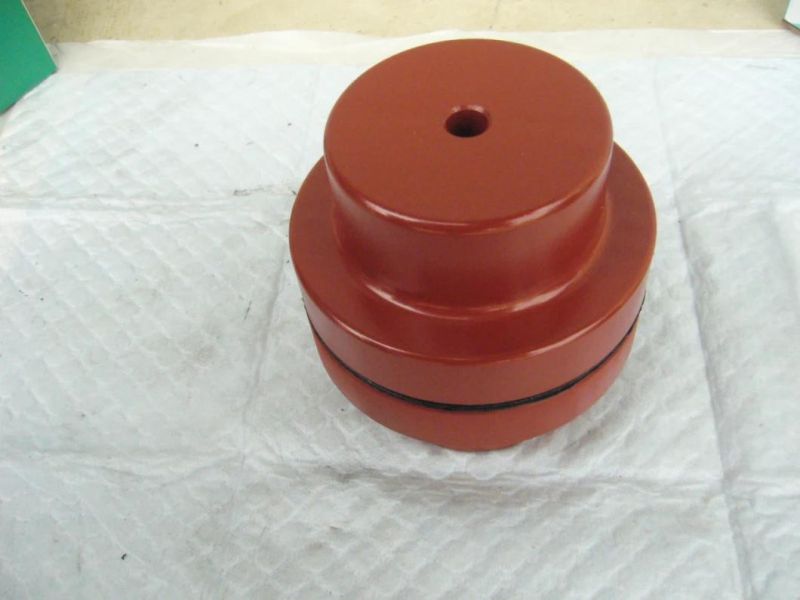

HRC Coupling for Two Shaft Joint
HRC Coupling for Two Shaft Joint   HRC Coupling for Two Shaft Joint
