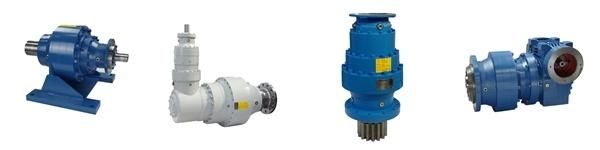

Inline Planetary Transmission Gearbox for Machining Equipment Equivalent to Bonfiglioli, Reggiana Riduttor
Shanghai SGR Heavy Industry Machinery Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Model NO.：MN,N
- Type：Planetary Gear Box
- Delivery：60days
- Warranty：One Year
- Input：Solid Shaft or Flange
- Output：Male,Female Splined Shaft
- Accrssorys：Foor or Torque Arm
- Shaft：Inline or Right Angle
- Transport Package：Wooden Case
- Specification：According to actual production
- Trademark：SGR
- Origin：Shanghai, China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Model NO. MN/N Type Planetary Gear Box Delivery 60days Warranty One Year Input Solid Shaft or Flange Output Male/Female Splined Shaft Accrssorys Foor or Torque Arm Shaft Inline or Right Angle Transport Package Wooden Case Specification According to actual production Trademark SGR Origin Shanghai, China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Inline Planetary Transmission Gearbox for Machining Equipment Equivalent to Bonfiglioli, Reggiana Riduttor
Technicial data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of the flange, foot, or shaft mounting solutions
Characteristic of Foot Mounted High Torque Planetary Gearbox :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing
| Ratio | 3.15:1 to 9000:1 |
| Reduction Stages | up to 6 reduction stages in one gearbox |
| Nominal Output Torque | up to 800,000N.m |
Company Certificate:
Packaging & Shipping
Package :
SGR gearbox use standard wood case per gear motor | gear unit.
