• Model NO.：V belt
• OEM：Available
• Range：500-5000mm
• Warranty：150000kms
• Certification：ISO9001, Ts16949
• Body Material：Rubber
• Component：Shock Reducing Rubber
• Transport Package：Plastic Bag,Carton
• Specification：EPDM
• Trademark：HEIYI
• Origin：China
• HS Code：40103900
• Production Capacity：100000pieces Per Month

Model
 Top Width(mm)Thickness(mm)Length Range(inch)Length Range(mm)AngleO/AV10*108.519.68"-216.5"500-550040°A/AV13*139.519.68"-216.5"500-550040°B/AV17*171419.68"-216.5"500-550040°C/AV22*221919.68"-216.5"500-550040°SAx/LAx12.58.819.68"-216.5"500-550038°SBx/LBx16.21019.68"-216.5"500-550038°SCx/LCx2111.219.68"-216.5"500-550040°XPA/SPAX12.51019.68"-216.5"500-550040°XPB/SPBX/5V16.21319.68"-216.5"500-550040°XPC/SPCX211519.68"-216.5"500-550040°XPZ/SPZX/3V9.58.819.68"-216.5"500-550040°25N/8V251719.68"-216.5"500-550040°HI251319.68"-216.5"500-550032°HJ/HDJ321819.68"-216.5"500-550032°HD321819.68"-216.5"500-550040°HK382019.68"-216.5"500-550032°HL452419.68"-216.5"500-550032°HM5125.519.68"-216.5"500-550032°HN572619.68"-216.5"500-550032°HO632619.68"-216.5"500-550032°9J-550.11119.68"-216.5"500-550040°9J-660.41119.68"-216.5"500-550040°9J-770.71119.68"-216.5"500-550040°3R-5V5015.219.68"-216.5"500-550040°4R-5V67.515.219.68"-216.5"500-550040°4R-SPA60.81119.68"-216.5"500-550038°2HB351419.68"-216.5"500-550038°3HB541419.68"-216.5"500-550038°4HB72.51419.68"-216.5"500-550038°5HB911419.68"-216.5"500-550038°6HB1101419.68"-216.5"500-550038°2HC47.51619.68"-216.5"500-550038°3HC72.51619.68"-216.5"500-550038°4HC981619.68"-216.5"500-550038°Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL,AA,BB,CC
Belts are also available, if you have any need of them, please feel free to contact us. Wewill confirm all the
details and reply you within 24 hours.

Structure of V Belt

	Function	Material
Tension Member	The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers	Polyester/Aramid Fiber
Rubber Ribs/Cog	Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley	EPDM
Backing Material	Bias ply type fabric backing resists cracking and provides abrasion resistance	EPDM
Insulation Material	oil and heat resistant rubber is used to bond the tension member to the rest of the belt	EPDM

Teeth part also can be covered with Fabric, if you have any need of it, please do tell us when you placing the order.

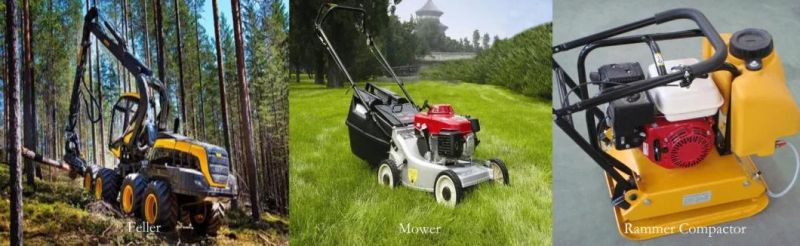

Application






Also fit for certain Industry machine, if you are in need of any kinds of belts please feel free to contact us.

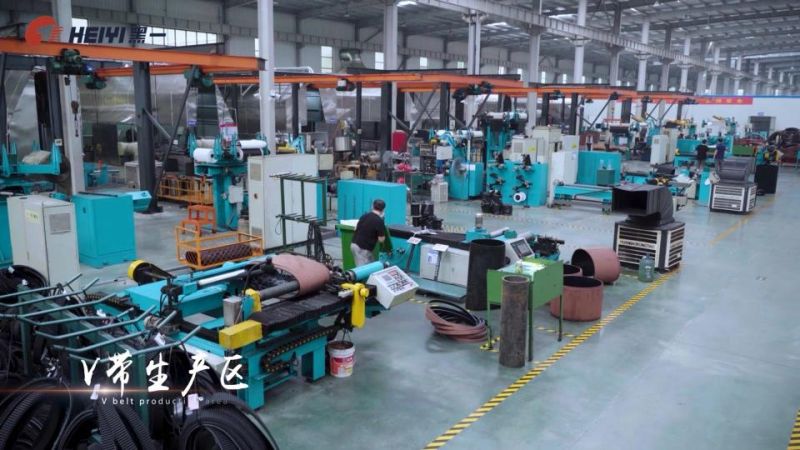

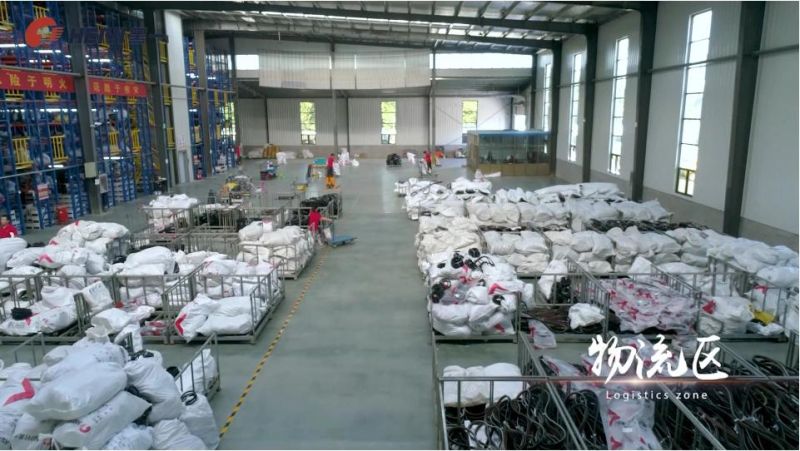

Factory Show

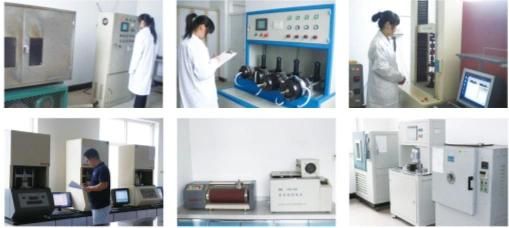

Test center





Company: Hebei Heiyi Rubber Co., Ltd
Add: Julu County Industrial Park, Xingtai City, Hebei Province,China
