• Model NO.：H,B
• Type：Helical
• Gear Housing：Casting Iron or Steel-Plate Welding Case
• Installation Form：Horizontal or Vertical
• Gear Arrangement：Helical Hardened Gearbox
• Color：Red,Blue or Others
• Quality Garantee：Europe CE Certification
• Material：Cast Iron
• Manufacturing Method：Forging, Grinding
• Toothed Portion Shape：Helical Gear
• Lubricant：Oil-Bath and Splash Lubrication
• Warranty：1 Year
• Input Speed：1500,1000,750rpm
• Ratio：1.25~450
• Gearing Arrangement：Helical
• Output Torque：up to 900,000nm
• Output Speed：1.7~1200rpm
• Transport Package：Polywood Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

Overview Product Description

1. Model Number
Types: H1,H2,H3,H4 Parallel Shaft Gearbox
Sizes: 1,2,3,4,5,24,25,26

2. Product Characteristics
(1)Large torque range, capable of horizontal mounting and vertical mounting.
(2)High-efficiency and long life-span, high permissible axial and radial loads.
(3)Low noise, high reliability and compact structure and so on.
(4)Output shafts type: solid shaft, hollow shaft and hollow shaft with shrink disk.
(5)Low noise, high reliability and compact structure.

DimensionsCustomization according to the application.

Rated Power:4KW~3015KW
Rated Torque:0.79N.m~900KN.m
Gear Arrangement:Helical Hardened Gearbox
Input Speed:1500r/min,1000r/min,750r/min
Housing:Casting iron or Steel-plate welding case

Detailed Photos

3. DimensionsCustomization according to the application.

B Series Orthogonal Axis(Shaft) Gearbox (Bevel Helical Gears)
1.Model Number
Types: B2,B3,B4 Orthogonal Shaft Gearbox
Sizes: 1,2,3,4,5,24,25,26
2.Product Characteristics
B Series Industrial Gearbox is a brand-new model of rigid tooth flank gear reducers which has the features as follows:
(1) B series industrial gearboxes have heavy load, large torque range, high-efficiency and long lifespan, high permissible axial and radial loads.
(2) B series orthogonal shaft gearbox has the features of low noise, high reliability and compact structure.
(3) Output shafts: Solid shaft or hollow shaft, and the hollow shaft can be attached with the shrink disk.
(4) Mounting type: horizontal, vertical.
3. Technical Data

Product Parameters

4. Technical Data



Packaging & Shipping

Company Profile

Our Advantages

FAQ

1.Q:What kinds of gearbox can you produce for us?

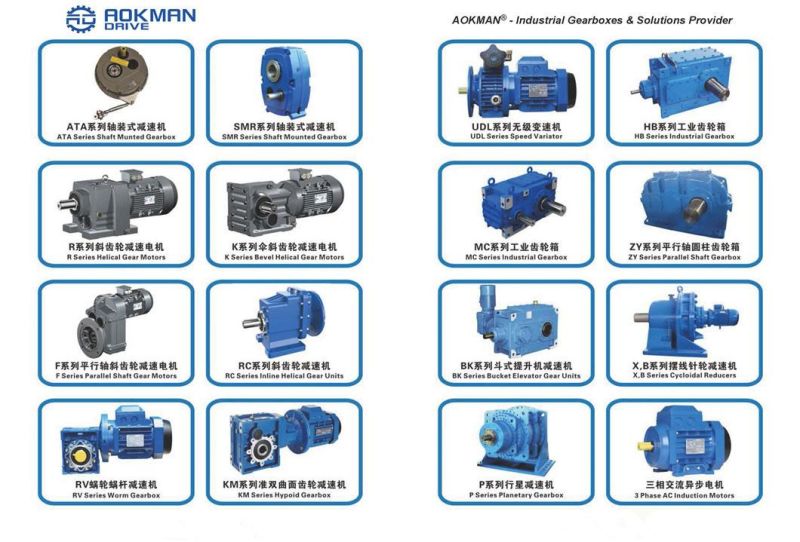

A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
If you have any demand for our products please feel free to contact me.
