High Precision High Torque Ratio 100 Transmission Parts Planetary Gearbox for Servo Motor

Shenzhen Hefa Gear Machinery Co., Ltd.
  • Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery
  • Hardness：Hardened Tooth Surface
  • Installation：Vertical Type
  • Layout：Coaxial
  • Gear Shape：Bevel Gear
  • Step：Single-Step

Base Info

  • Model NO.：NGPRPX0001
  • Type：Planetary Gear Reducer
  • Ratio Range：3-100
  • Precision Range：1-3arcmin(P1);3-5arcmin(P2)
  • Weight：0.5-1kg
  • Max Input Speed：8000
  • Transport Package：Carton Box
  • Specification：42-120
  • Trademark：Newgear
  • Origin：China
  • HS Code：8483402090
  • Production Capacity：300, 000 Set Per Year

Description

Basic Info.

Model NO. NGPRPX0001 Type Planetary Gear Reducer Ratio Range 3-100 Precision Range 1-3arcmin(P1);3-5arcmin(P2) Weight 0.5-1kg Max Input Speed 8000 Transport Package Carton Box Specification 42-120 Trademark Newgear Origin China HS Code 8483402090 Production Capacity 300, 000 Set Per Year

Product Description

High Precision High Torque Ratio 100 Transmission Parts Planetary Gearbox for Servo Motor

Newgear(China) receive Germany precision planetary gear design and manufacturing technology,Production of high rigidity, small backlash, low noise, stable transmission, reliable and durable planetary reducer,widely used in various fields.
Newgear(China) has a complete planetary gear reducer manufacturing chain .
High Precision High Torque Ratio 100 Transmission Parts Planetary Gearbox for Servo Motor

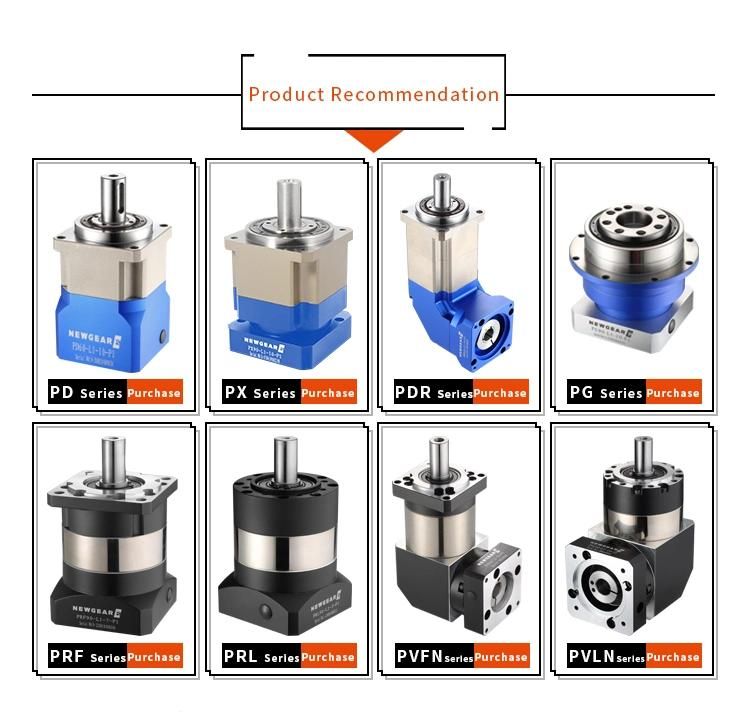

PX Series Planetary Gearbox
*One-piece construction,High Precision and large output torque.
*Double bracing cage planetary shelf structure.high reliable. Can suit reversible rotation frequently
*Helical gear transmission, more reliable. Higher torque.
*Low return backlash, high precision.
*Special Rotation frame structure.can carry bigger Radial&Axial load
*Size 42-180
*Ratio:3-100
*Backlash rank:  P1:1-3arcmin       P2:3-5arcmin

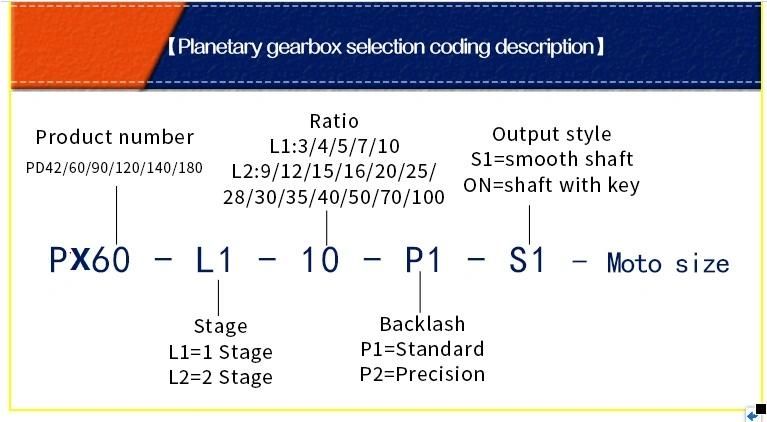

*PX60-L1  PX90-L1  PX120-L1  PX140-L1  PX180-L1
