Rotary Motor Assembly/Swing Motor Assembly, MA45W (G34)

SHANDONG CCHC HYDRAULICS CO., LTD.

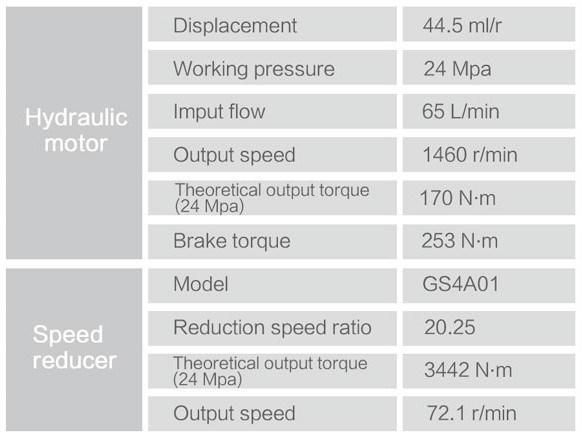

  • Type：Swing Moter Assembly
  • Working Pressure：24 MPa
  • Output Speed：1460 R,Min
  • Displacement：44.5ml,R
  • Use for：10t Hydraulic Excavator Rotary Drive Device
  • Transport Package：Export Standard Package

Base Info

  • Model NO.：MA45W(G34)
  • Trademark：CCHC
  • Origin：Shandong China
  • HS Code：8430699000

Description

Basic Info.

Model NO. MA45W(G34) Trademark CCHC Origin Shandong China HS Code 8430699000

Product Description

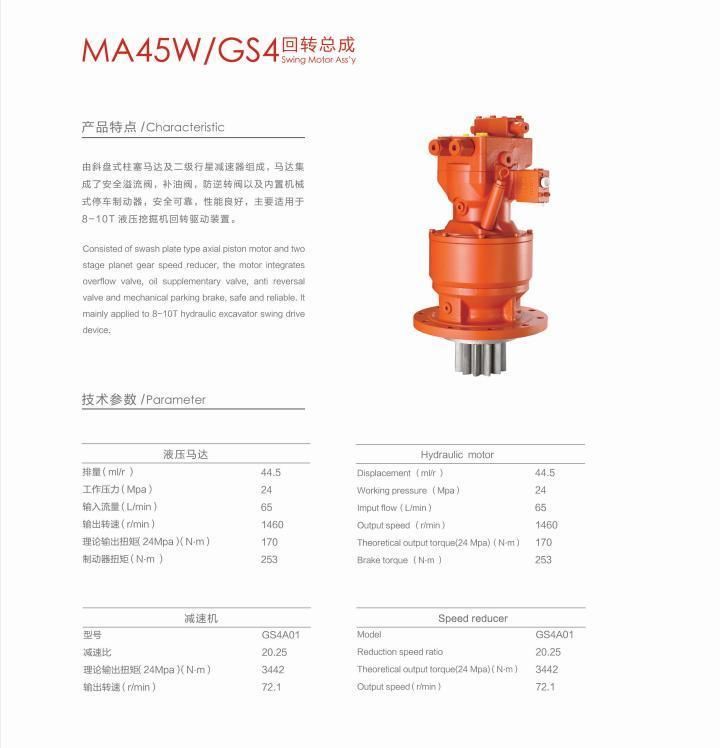

This model is mainly applied to 8-10T hydraulic excavator rotary drive device. The motor is composed of swash plate axial piston motor and two-stage planet gear speed reducer assembly. The motor is integrated with safety relief valve, oil supplementary valve, anti-reverse valve and built-in mechanical stop brake, which is safe and reliable and has good performance.
The motor is composed of swash plate axial piston motor and two stage planet gear speed reducer. The motor is integrated with safety relief valve, oil supplementary valve, anti-reverse valve and built-in mechanical stop brake, which is safe and reliable and has good performance.
