• Model NO.：T series reducer
• Type：Bevel Gear
• Input Power：0.018-96kw
• Ratio：1 1.5 2 2.5,3
• Permissable Torque：11-607n.M
• Mounting Type：Foot Mounted, Flange Mounted
• Shaft：Three
• Material：Cast Iron
• Manipulate Way：Forced Manipulation
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Bevel Wheel
• Changes Way：Mixed
• Transport Package：Wooden Case,Carton,Pallet
• Specification：ISO, CE, SGS
• Trademark：Akoman
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. T series reducer Type Bevel Gear Input Power 0.018-96kw Ratio 11.522.5/3 Permissable Torque 11-607n.M Mounting Type Foot Mounted, Flange Mounted Shaft Three Material Cast Iron Manipulate Way Forced Manipulation Manufacturing Method Cast Gear Toothed Portion Shape Bevel Wheel Changes Way Mixed Transport Package Wooden Case/Carton/Pallet Specification ISO, CE, SGS Trademark Akoman Origin China HS Code 8483409000 Production Capacity 5000PCS/Year

Product Description

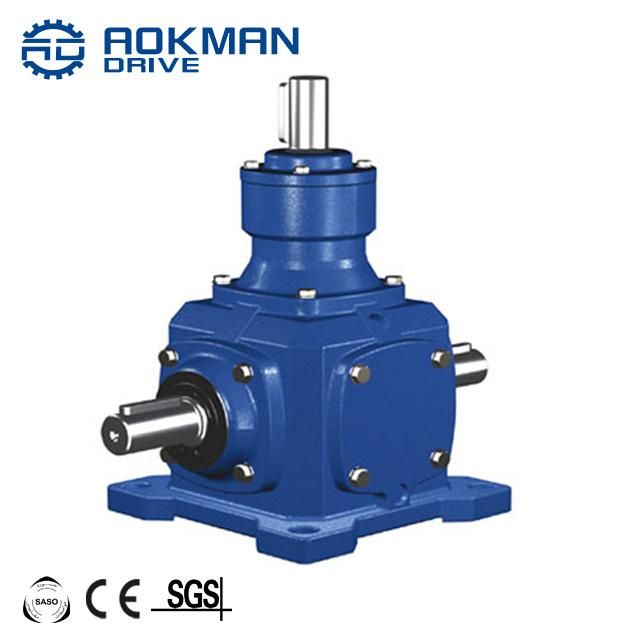

Light Weight T Series 90 Degree Small Helical Bevel Gear ReducerT Type Gear Reducer Gear box for  change direction

Technical data:
1. Power: 0.37-200 (KW)
2. Output Speed: 11-226RMP,
3. Torque: 400-56000 (N. M)
4. Transmission stage: Three stage

Commercial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 10-25 days
4. Price terms: FOB, CIF, EXW
5. Payment method: T/T, 30% in advance, 70% balance before delivery
6. Shipping port: Fuzhou
7. OEM: We accept customized products as per your special requirement.
8. Guidelines for the Selection: Usually we can select one machine which is suitable for you with some informations from you, such as ratio/motor speed/mounting dimension/ output torque etc.
9. If the minimum order amount is in excess of $10000, there are preferential


input power	0.018-96kw
ratio	1-3
permissable torque	11-607N.M
mounting type:	footmounted
usage:	change direction

Gearbox Parameters:

Models	Input Power	Ratio	Max. Torque	Weight(kg)	Output Shaft Dia.(k6)
T2	0.014KW~1.79KW	1~2	11	2	Φ15
T4	0.026KW~4.94KW	1~2	31	10	Φ19
T6	0.037KW~14.9KW	1~3	94	21	Φ25
T7	0.042KW~22KW	1~3	139	32	Φ32
T8	0.064KW~45.6KW	1~3	199	49	Φ40
T10	0.11KW~65.3KW	1~3	288	78	Φ45
T12	0.188KW~96KW	1~3	607	124	Φ50
T16	0.40KW~163KW	1~3	1073	188	Φ60
T20	0.69KW~234KW	1~3	1943	297	Φ72
T25	1.4KW~335KW	1~3	3677	488	Φ85

Ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions

1. We accept sample order.
2. We undertake the problems due to quality.
3. We supply detail answers about technical questions.
4. We are the manufacturer so we could supply the products as soon as possible.
5. At the instance of our dear customer, we can do the customized gear boxes for clients.

Product Pictures:

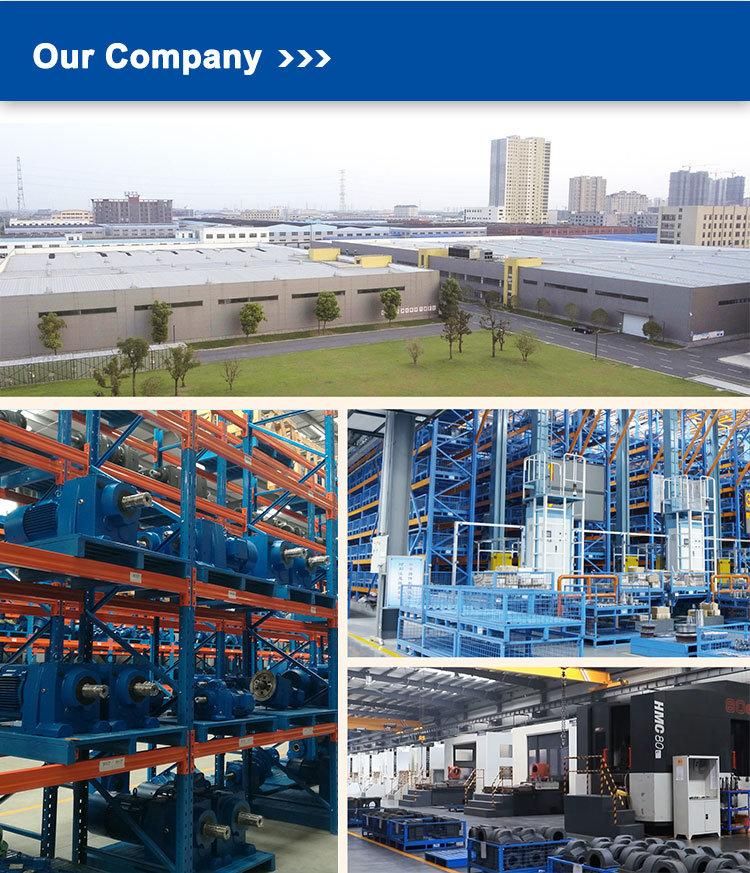

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
