22mm 24V High Quality Small Gearbox Manufacturers

Shenzhen Zhaowei Machinery & Electronics Co., Ltd.
  • Application：Motor, Toy, Car
  • Function：Change Drive Torque, Speed Reduction
  • Layout：Customize
  • Hardness：Hardened Tooth Surface
  • Installation：Customize
  • Step：Customize

Base Info

  • Model NO.：ZWMD022022-16
  • Type：Planetary Gear Box
  • Rated Voltage：24V DC
  • Diamater：22mm
  • Rated Speed：472 Rpm
  • Rated Current：110 Ma
  • No Load Speed：419 Rpm
  • No Load Current：295 Ma
  • Tated Torque：512 Gf.Cm
  • Transmission Reduction Ratio：16:1
  • Speed Stage：2
  • Keywords：Small Gearbox Manufacturers
  • Transport Package：Standard Packaging or According to Client′s Requir
  • Specification：22MM Gearbox
  • Trademark：ZHAOWEI
  • Origin：Shenzhen
  • HS Code：8483409000
  • Production Capacity：5, 000PCS,Day

Description

Overview Product Description

Specifications:

Rated voltage: 24.0V DC
Rotation direction: CW/CCW
Reduction ratio: 16/1
Operating temperature range: -10-50°C
Storage temperature range: -20-60°C
Overall length: 61.5mm
Gearbox length: 23.2mm
rated torque of gearbox: 2,000gf.cm
instant torque of gearbox: 6,000gf.cm
Output power: 0.5-6W
Output shaft: Metal

No load:
Speed: 472rpm
Current: 110mA

On load:
Rated speed: 419rpm
Rated current: 295mA
Rated torque: 512 gf.cm

ModelApplication ParametersRated Torque of Gear BoxInstant Torque of Gear BoxGear RatioGear Box Length
L1RatedAt No LoadAt Rated LoadOverall Length
LVoltageSpeedCurrentSpeedCurrentTorqueVDCrpmmArpmmAgf.cmmN.mmmgf.cmgf.cmmmZWMD022022-424.01886100167529516015.756.48002400418.1ZWMD022022-524.01509100134029520019.68002400566.63500100006428.3ZWMD022022-7624.099120882951603157.235001000076ZWMD022022-9024.084120742951898186.235001000090ZWMD022022-10724.071120632952257221.3350010000107above specifications just for reference and customizable according to requirements.

Detailed PhotosApplicationCompany Profile

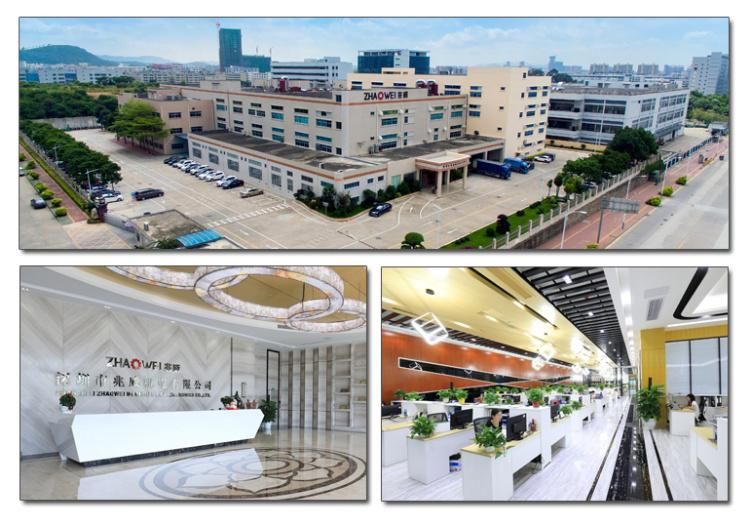

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
22mm 24V High Quality Small Gearbox Manufacturers

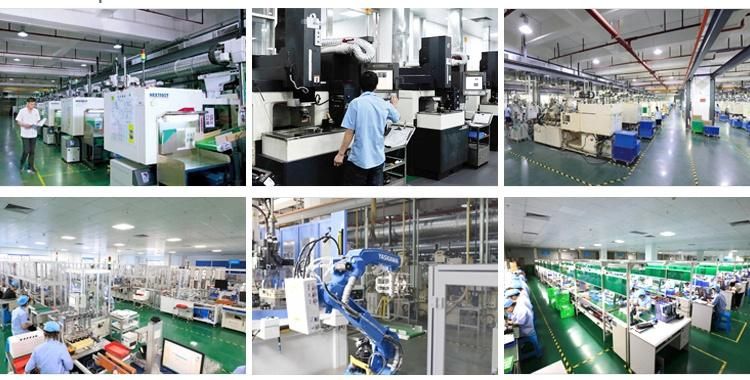

Workshop
22mm 24V High Quality Small Gearbox Manufacturers

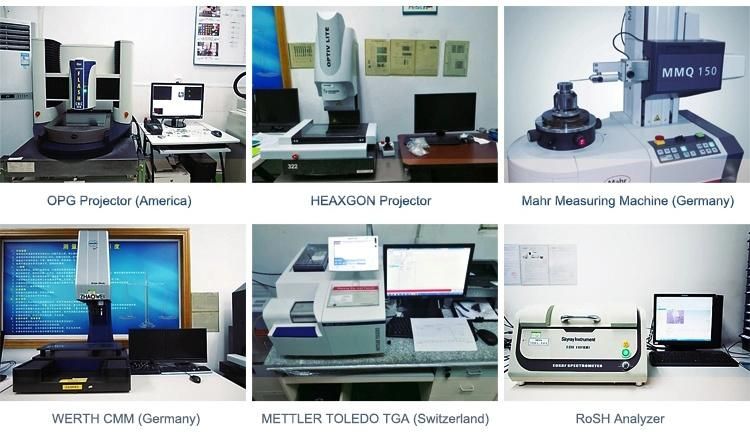

Testing Equipment
22mm 24V High Quality Small Gearbox Manufacturers
1) Competitive Advantages

  • Our Services
    • Packaging & Shipping

      1) Packing Details

      packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
      Or according to client's requirement.

      2) Shipping Details

      samples will be shipped within 10 days;
      batch order leading time according to the actual situation.

      Certifications

      Certifications

      We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).
      22mm 24V High Quality Small Gearbox Manufacturers
      and more...

      FAQ

      FAQ

      1. Can you make the gearbox with custom specifications?
      YES. We have design and development team, also a great term of engineers, each of them have
      many work years experience.

      2.Do you provide the samples?
      YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

      3.What is your MOQ?
      Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

      4. Do you have the item in stock?
      I am sorry we donot have the item in stock, All products are made with orders.

      5. Do you provide technology support?
      YES. Our company have design and development team, we can provide technology support if you
      need.

      6.How to ship to us?
      We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

      7.How to pay the money?
      We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

      8. How can I know the product is suitable for me?
      Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

      9. Can I come to your company to visit?
      YES, you can come to our company to visit at anytime, and welcome to visit our company.

      10. How do contact us ?
      Please send an inquiry
