Hypoid Right Angle Bevel Helical Gear Box, High Efficiency Hypoidal Gear Boxes
Hangzhou ANG Drive Co., Ltd.- Application：Machinery
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Layout：Hypoid
- Gear Shape：Cylindrical Gear
- Step：Double-Step
Base Info
- Model NO.：AH40-90
- Type：Gear Reducer
- Power：0.12kw ~ 4kw
- Ratio：1,7.5 ~ 1,300

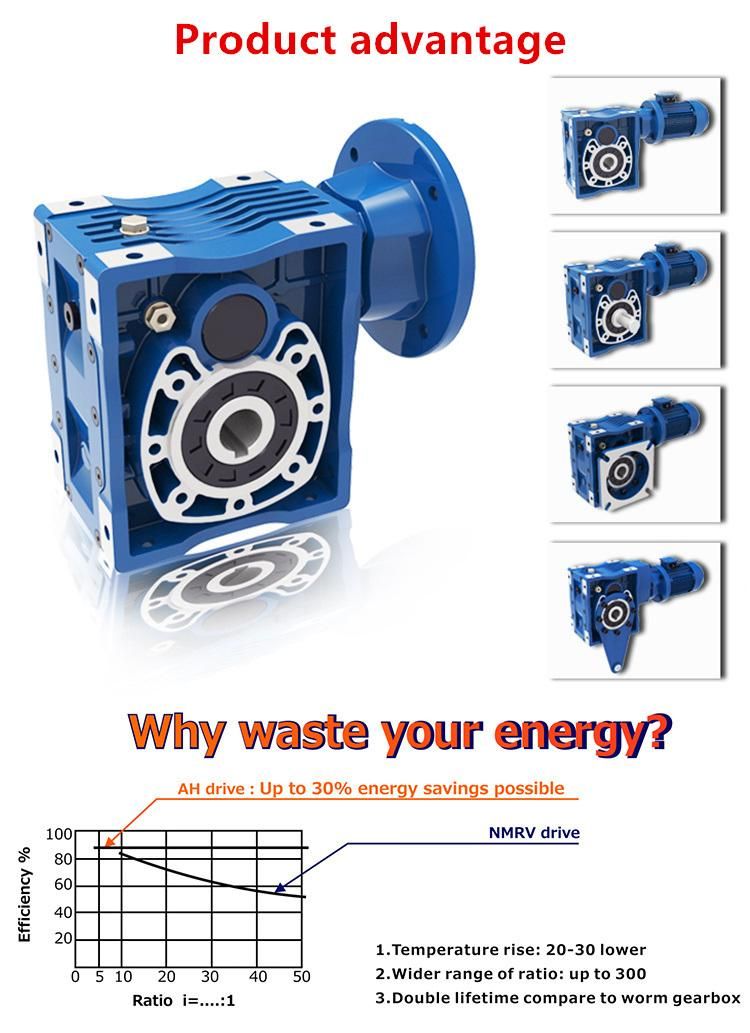

- Efficiency：90 ~ 94%
- Output：Flange or Solid Shaft or Hollow Shaft
- Transport Package：Wooden Case
- Specification：40-90
- Trademark：ANG Drive
- Origin：China
- HS Code：8483409000
- Production Capacity：3000PCS Per Month
Description
ANG Hypoid Gear boxModel AH40, AH50, AH63, AH75, AH90 Ratio B:7.5,10,12.5,15,20,25,30,40,50,60
C: 50,60,75,100,125,150,200,250,300 Transmission Stage B: 2 stages
C: 3 stages Output torque Up to 500NM Motor power 0.12~4KW, with flange: B5 or B14 Housing material Aluminum alloy Output shaft Material: 40Cr
Hardness level: 242-286HB Helical gear Material:20CrMnTi
Hardness level: 58-62HRC
Precision level: 6 grade Transmission efficiency B:92%-94%
C:90%-92% Oil seal brand SKF Bearing C&U Lubricant Mineral oil or sythetic oil Dimension standard Metric size / Inch size Accessories Flange / Solid shaft / Torque arm / Cover …
Typical Application
♦ Coal mining
♦ Power Plant Equipment
♦ Metallurgical Industry
♦ Metal Forming Machinery
♦ Petrochemical Industry
♦ Mining Machine
♦ Hoisting Machinery
♦ Cement and construction Industry
♦ Environmental Protection Industry
♦ Cable Industry
♦ Chemical industry
♦ Food Machinery
FAQ
Q: Can you make the gear box with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
