• Model NO.：ZWBMD024024
• Type：Planetary Gear Box
• Voltage：12V
• Gearbox Diameter：24mm
• No Load Current：80mA
• No Load Speed：5-365 Rpm
• Load Current：220mA
• Load Speed：4-315 Rpm
• Load Torque：248-14195 GF.Cm
• Gear Ratio：16-1296
• Gearbox Type：DC Gear Motor
• Transport Package：Standard Packaging or According to Client′s Requir

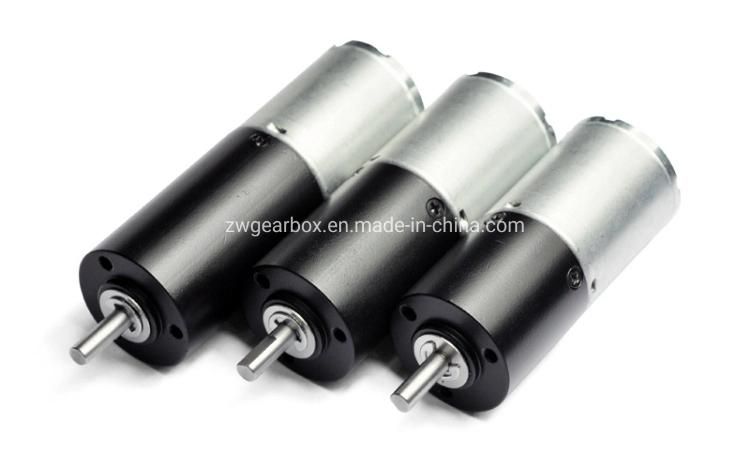

• Specification：24mm DC Gear Motor
• Trademark：ZHAOWEI
• Origin：Shenzhen
• HS Code：8483409000
• Production Capacity：5, 000PCS,Day

Overview Product Descriptiondiameter24mmmotorDC reducer gearbox noise levelless than 40dB at the 50cm distancelife time200 hoursworking temperature-40 to 95ºCtolerance<0.3mmCertificationROHS/ISO9001/ISO14001/SGS/TS16949Suitable forRobot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.OSD LanguageEnglish, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, KoreanThe basic specifications for reference only, specifications can be customized.Features
high appearance working temperature: to 200ºC
high precision
Reliability Test
* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.
1)Specification
ModelApplication ParametersRated Torque of Gear BoxInstant Torque of Gear BoxGear RatioGear Box Length
L1RatedAt No LoadAt Rated LoadOverall Length
LVoltageSpeedCurrentSpeedCurrentTorqueVDCrpmmArpmmAgf.cmmN.mmmgf.cmgf.cmmmZWBMD024024-1612.03657531521524824.455.820000600001625.0ZWBMD024024-2412.02437521021537336.5200006000024ZWBMD024024-3612.01627514021555954.8200006000036ZWBMD024024-6412.091757922083581.862.820000600006432.0ZWBMD024024-9612.06175522201144112.2200006000096ZWBMD024024-14412.04175352201878184.12000060000144ZWBMD024024-21612.02775232202817276.22000060000216ZWBMD024024-25612.02380202202804275.069.8200006000025639.0ZWBMD024024-38412.01580132204206412.52000060000384ZWBMD024024-57612.0108092206309618.72000060000576ZWBMD024024-86412.078062209464928.12000060000864ZWBMD024024-129612.05804220141951392.120000600001296above specifications just for reference and customizable according to requirements.

Detailed Photos

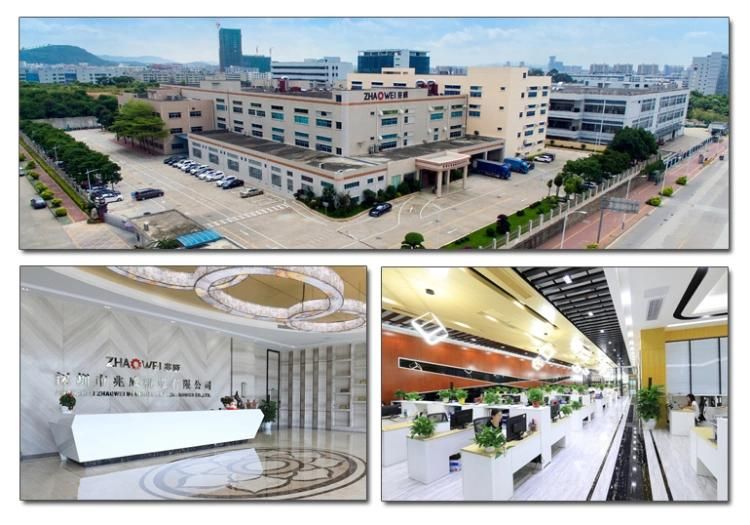

ApplicationCompany Profile

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

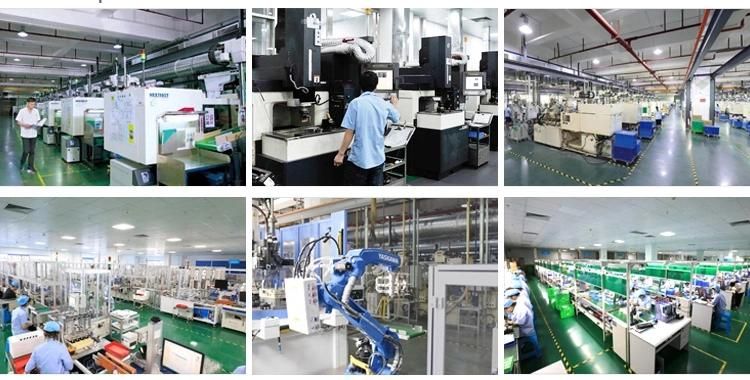

Workshop

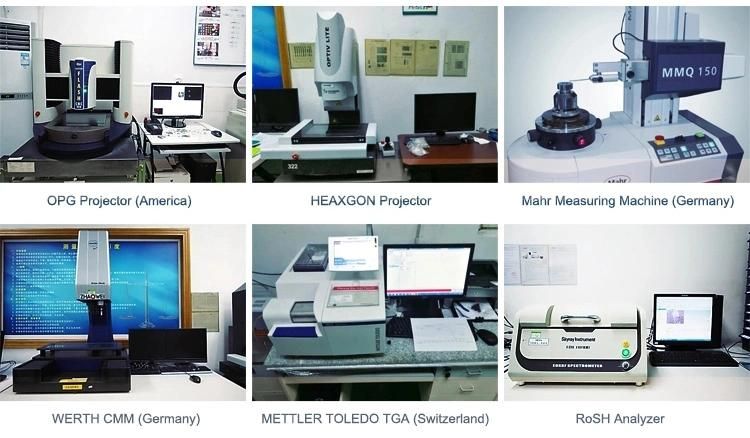

Testing Equipment

1) Competitive Advantages

• Our Services
  • Packaging & Shipping

    1) Packing Details

    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
    Or according to client's requirement.

    2) Shipping Details

    samples will be shipped within 10 days;
    batch order leading time according to the actual situation.

    Certifications

    Certifications

    We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).

    and more...

    FAQ

    FAQ

    1. Can you make the gearbox with custom specifications?
    YES. We have design and development team, also a great term of engineers, each of them have
    many work years experience.

    2.Do you provide the samples?
    YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

    3.What is your MOQ?
    Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

    4. Do you have the item in stock?
    I am sorry we donot have the item in stock, All products are made with orders.

    5. Do you provide technology support?
    YES. Our company have design and development team, we can provide technology support if you
    need.

    6.How to ship to us?
    We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

    7.How to pay the money?
    We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

    8. How can I know the product is suitable for me?
    Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

    9. Can I come to your company to visit?
    YES, you can come to our company to visit at anytime, and welcome to visit our company.

    10. How do contact us ?
    Please send an inquiry
