• Model NO.：NCJ series
• Type：Helical Gear
• Keywords：Motor Reducer
• Mounted：Flange Mounted or Flange Mounted
• Output Speed：6.5rpm-276.34rpm
• Motor Power：0.12kw-4kw
• Input Type：with Inline AC Motor, with Servo Motor-Aqa, Input
• Transport Package：Wooden Case, Plywood
• Specification：CE, ISO, TUV
• Trademark：Starshine Drive
• Origin：Foshan, China
• HS Code：8483409000
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. NCJ series Type Helical Gear Keywords Motor Reducer Mounted Flange Mounted or Flange Mounted Output Speed 6.5rpm-276.34rpm Motor Power 0.12kw-4kw Input Type with Inline AC Motor, with Servo Motor-Aqa, Input Transport Package Wooden Case, Plywood Specification CE, ISO, TUV Trademark Starshine Drive Origin Foshan, China HS Code 8483409000 Production Capacity 6000PCS/Month

Product Description

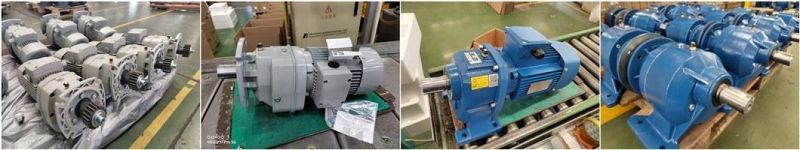

Starshine Drive NCJ Series Helical Geared Motor

Features:

1. High efficiency and energy saving: low energy, low noise, small vibration, low temperature rise, wide output speed, and high efficiency: 92%-96%.
2. With wide variable range of  voltage and frequency motor from 20HZ to 60HZ, and voltage from 320V to 420V.
3. Modular design with strong interchangeability.
4. Iron or aluminum casting house, good rigidity, high strength and excellent heat-loss.
5. Advanced design: gear pair processed by carburizing and quenching heat treatment, and unique low noise gear tooth design to ensure the service life.
6. Free maintenance: special lubrication to guarantee normal running for 20,000 hours without oil replacement;
7.  Easy replacement: can replace cycloid gearbox and upgrade product

Technical Parameters

Type	Old Type	Output Torque	Output Shaft Dia.
SNR02	NCJ02	130N.m	φ22
SNR03	NCJ03	250N.m	φ28
SNR04	NCJ04	500N.m	φ32
SNR05	NCJ05	750N.m	φ40
SNRW03Y	NCJT03Y2	250N.m	φ35
SNRL04Y	NCJF04Y2	450N.m	φ35

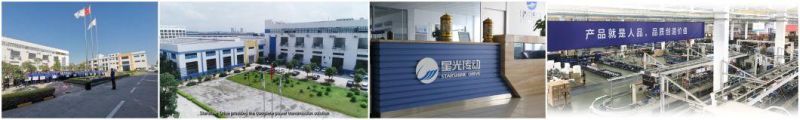

About Us

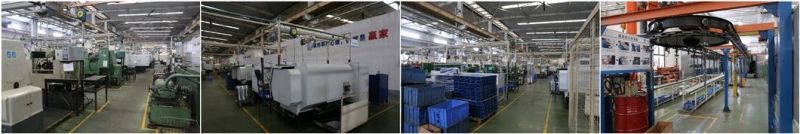

Guangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.



Our Team

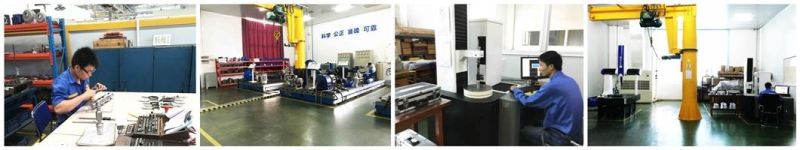

Quality Control

Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value

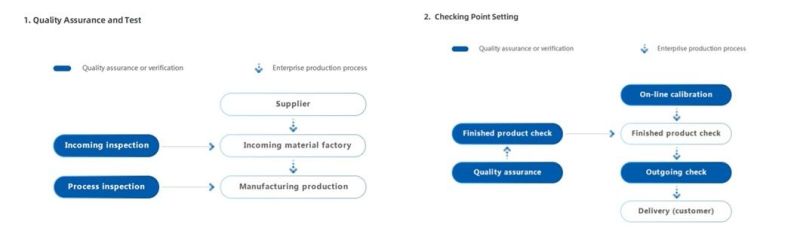

3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.

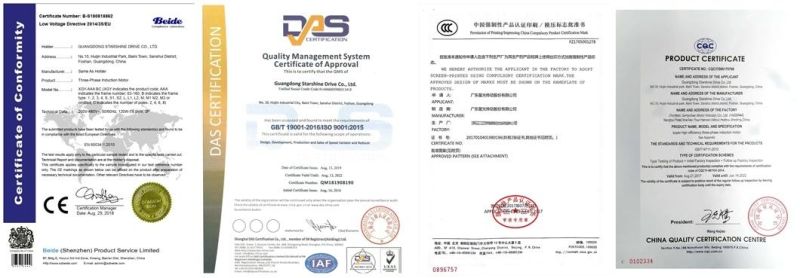

7. Certificate: all of our products pass ISO, CE certificate.




Packing


Delivery
