High Precision 20mm Metal Housing Gearbox for Sweeping Robot

Shenzhen Zhaowei Machinery & Electronics Co., Ltd.
  • Application：Motor, Toy, Car, Sweeping Robot
  • Function：Change Drive Torque, Speed Reduction
  • Layout：Cycloidal
  • Hardness：Hardened Tooth Surface
  • Installation：Customize
  • Step：Customize 1-4

Base Info

  • Model NO.：ZWBMD020020-256
  • Type：Planetary Gear Box
  • Rated Voltage：12V DC
  • Gearbox Diameter：20mm
  • Output Power：0.5-1.0W
  • No Load Speed：24pm
  • No Load Current：90mA
  • Rated Load Speed：22rpm
  • Rated Load Current：130mA
  • Torque：923 GF.Cm
  • Ratio：256:1
  • Motor Type：Gearbox
  • Transport Package：Standard Packaging or According to Client′s Requir
  • Specification：20mm
  • Trademark：ZHAOWEI
  • Origin：Shenzhen
  • HS Code：8483409000
  • Production Capacity：5, 000PCS,Day

Description

Overview Product Description

Rated voltage: 12V

No load speed: 24 rpm
No load current: 90 mA
Load speed: 22 rpm
Load Current: 130 mA
Rated torque: 923 gf.cm
Output Power: 0.5-1.0W
Gearbox rated torque: 19,000g.cm
Gearbox instant torque: 57,000g.cm

We also have the following items:
ModelApplication ParametersRated Torque of Gear BoxInstant Torque of Gear BoxGear RatioGear Box Length
L1RatedAt No LoadAt Rated LoadOverall Length
LVoltageSpeedCurrentSpeedCurrentTorqueVDCrpmmArpmmAgf.cmmN.mmmgf.cmgf.cmmmZWBMD020020-1612.04098035512511711.448.019000570001622.9ZWBMD020020-2412.02738023712517517.2190005700024ZWBMD020020-6412.0102908912530830.253.319000570006428.2ZWBMD020020-9612.068905912546245.3190005700096ZWBMD020020-14412.045903912569367.91900057000144Detailed PhotosCompany Profile

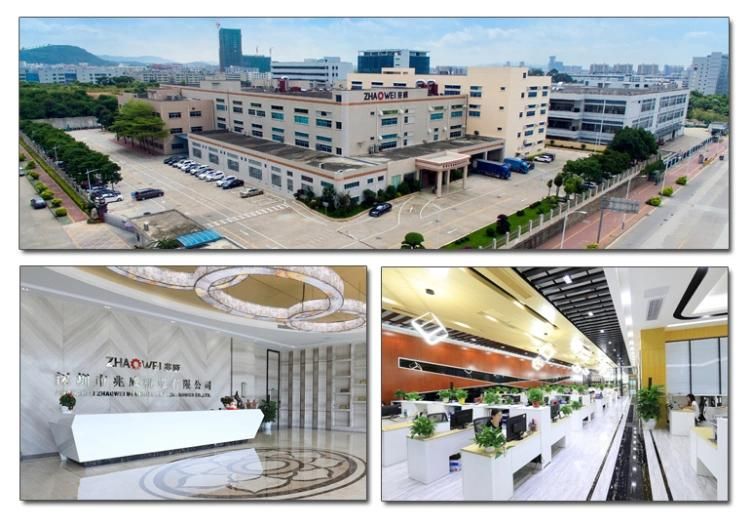

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
High Precision 20mm Metal Housing Gearbox for Sweeping Robot

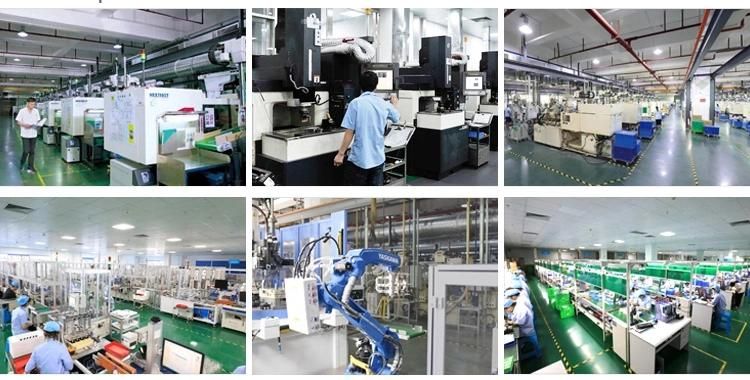

Workshop
High Precision 20mm Metal Housing Gearbox for Sweeping Robot

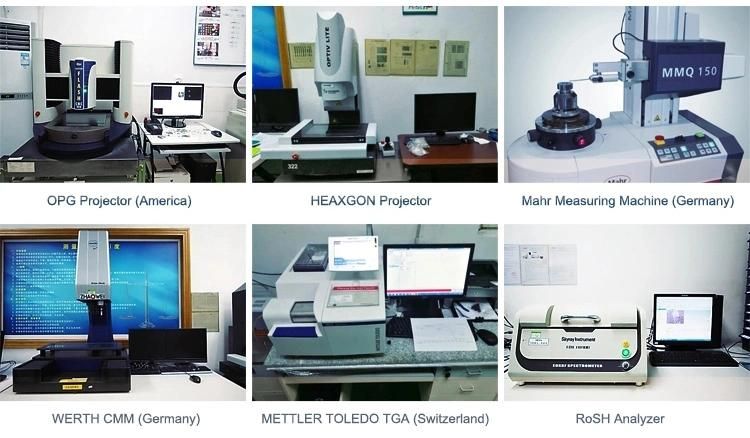

Testing Equipment
High Precision 20mm Metal Housing Gearbox for Sweeping Robot
1) Competitive Advantages

  • Our Services
    • Packaging & Shipping

      1) Packing Details

      packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
      Or according to client's requirement.

      2) Shipping Details

      samples will be shipped within 10 days;
      batch order leading time according to the actual situation.

      Certifications

      Certifications

      We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).
      High Precision 20mm Metal Housing Gearbox for Sweeping Robot
      and more...

      FAQ

      FAQ

      1. Can you make the gearbox with custom specifications?
      YES. We have design and development team, also a great term of engineers, each of them have
      many work years experience.

      2.Do you provide the samples?
      YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

      3.What is your MOQ?
      Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

      4. Do you have the item in stock?
      I am sorry we donot have the item in stock, All products are made with orders.

      5. Do you provide technology support?
      YES. Our company have design and development team, we can provide technology support if you
      need.

      6.How to ship to us?
      We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

      7.How to pay the money?
      We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

      8. How can I know the product is suitable for me?
      Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

      9. Can I come to your company to visit?
      YES, you can come to our company to visit at anytime, and welcome to visit our company.

      10. How do contact us ?
       Please send an inquiry
