• Model NO.：B5 C5 D5 E5 F5 G5 H5 J5
• Layout：Parallel Shaft
• Gear Shape：Cylindrical Gear
• Step：Three-Step
• Type：Gear Reducer
• Ratio：1,5, 1,13, 1,20
• Output Speed：10 ~ 400rpm
• Output Torque：256 ~ 7449nm
• Transport Package：Wooden Case
• Specification：B~J, 5,13,20
• Trademark：ANG Drive
• Origin：China
• HS Code：8483409000
• Production Capacity：3000PCS Per Month
• Package size per unit product：50.00cm * 40.00cm * 60.00cm
• Gross weight per unit product：100.000kg

Basic Info.

Model NO. B5 C5 D5 E5 F5 G5 H5 J5 Layout Parallel Shaft Gear Shape Cylindrical Gear Step Three-Step Type Gear Reducer Ratio 1/5, 1/13, 1/20 Output Speed 10 ~ 400rpm Output Torque 256 ~ 7449nm Transport Package Wooden Case Specification B~J, 5/13/20 Trademark ANG Drive Origin China HS Code 8483409000 Production Capacity 3000PCS Per Month

Packaging & Delivery

Package size per unit product 50.00cm * 40.00cm * 60.00cm Gross weight per unit product 100.000kg

Product Description

SMR SMSR Speed Reducer Torque Arm Parallel Axis Shaft Mounted Reductor Gearbox

Features:

1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters (Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system

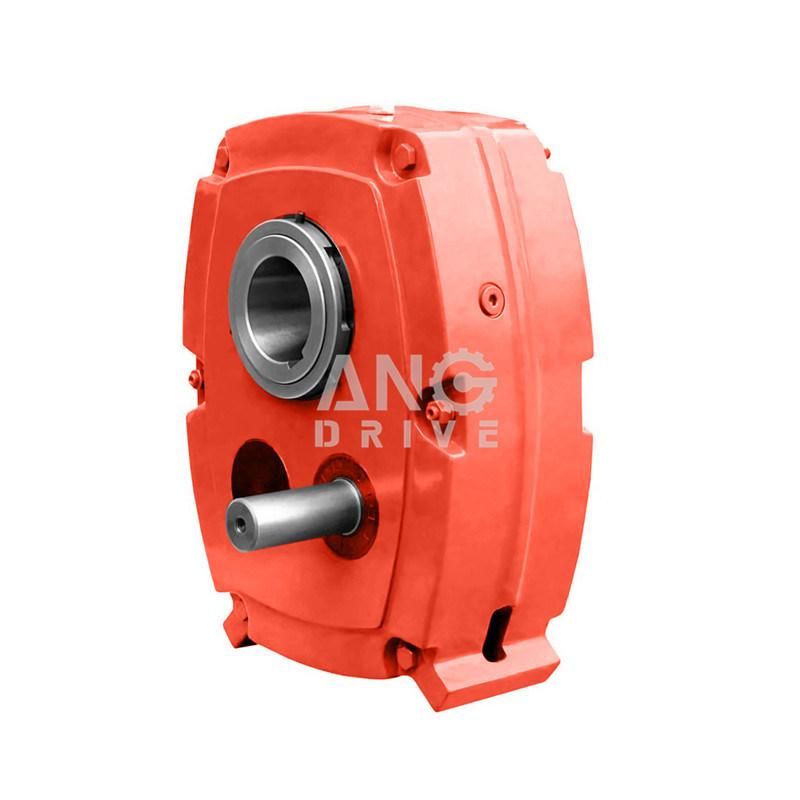

Product photo:

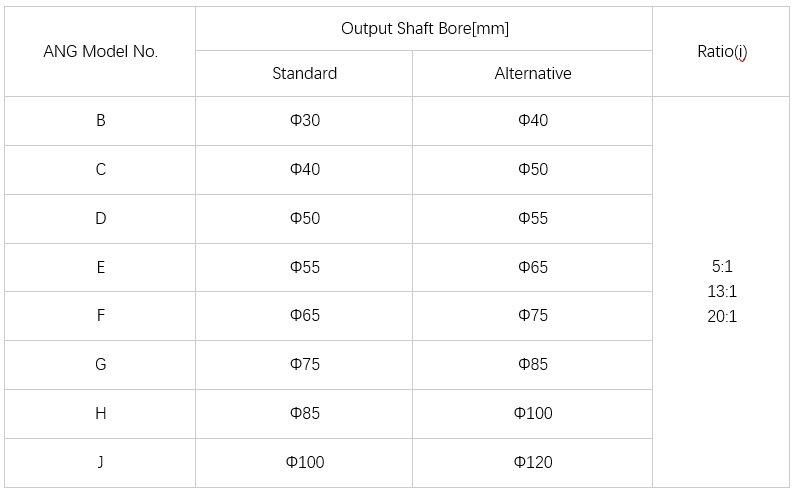

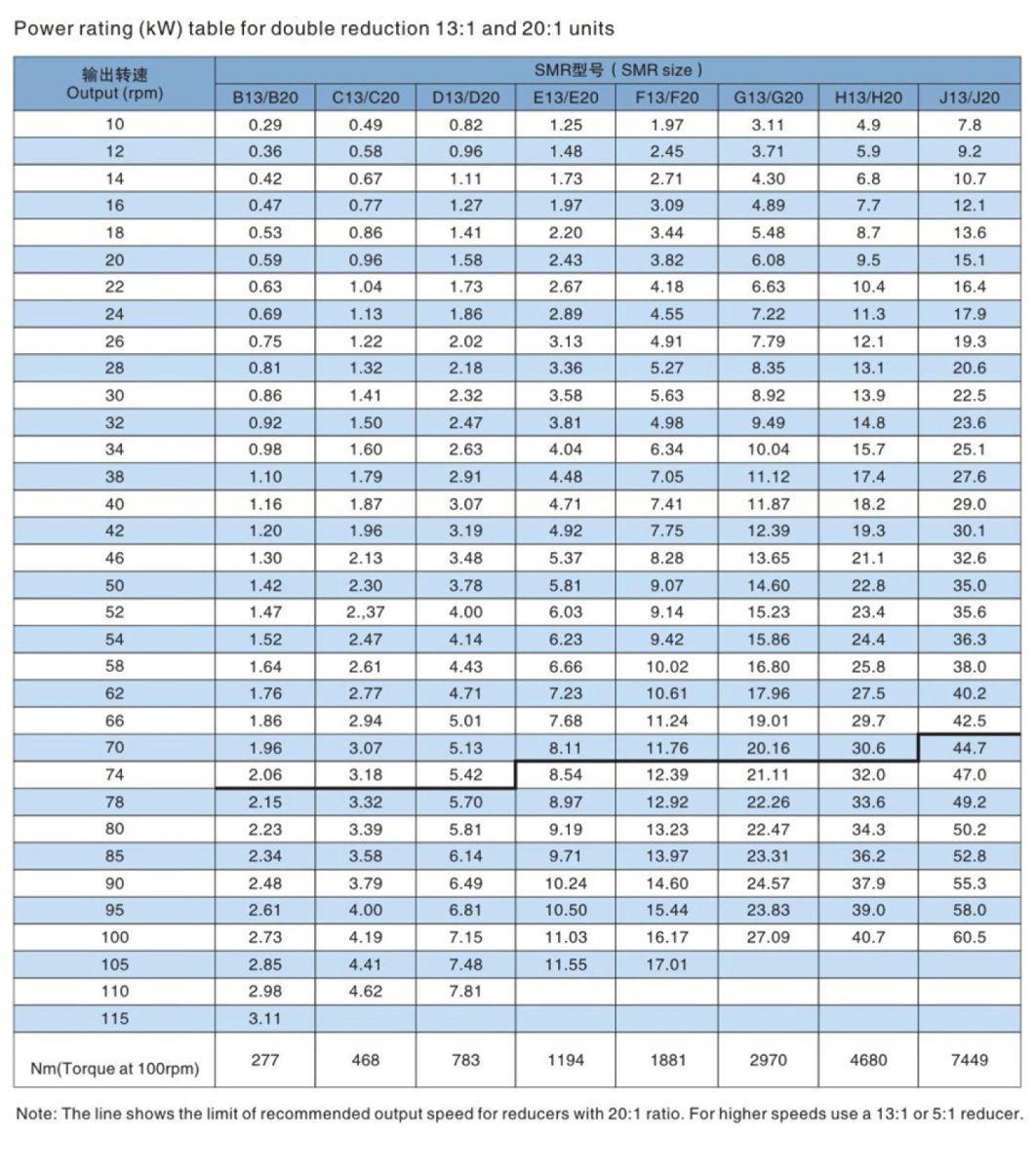

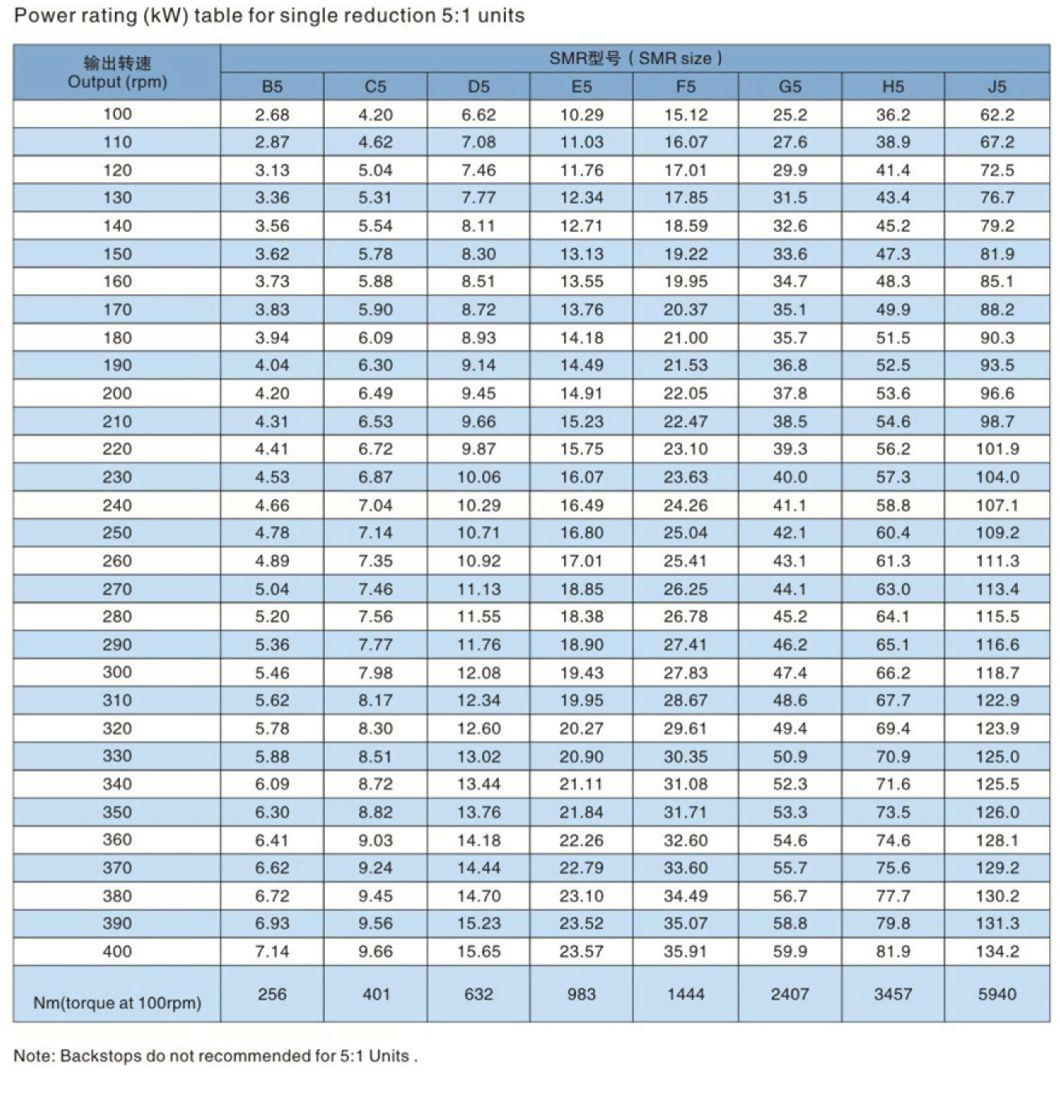

Specification for shaft mounted gearbox:










FAQ
Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.

Q: Do you provide samples?
A: Yes. Sample is available for testing.

Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.

Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.

Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.

Q: How to ship to us?
A: It is available by air, or by sea, or by train.

Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.

Q: How can I know the product is suitable for me?
A: >1^ST confirm drawing and specification >2^nd test sample >3^rd start mass production.

Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.

Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
