Motor Drive Slewing Drive for Horizontal Single Axis Solar Tracker
Coresun Drive Equipment Changzhou Co., Ltd.- Feature：Corrosion-Resistant
- Step：Double-Step
- Openness：Closed
- Installation：Vertical
- Transmission Form：Worm
- Type：Single-Row Ball
Base Info
- Model NO.：VH9-61S110-RC-2415300
- Output Torque：6405n.M
- Output Speed：0.025rpm
- Holding Torque：56kn.M
- Gear Ratio：61:1
- IP：65
- Corrosion Protection：C3
- Tilting Moment Torque：12kn.M
- Transport Package：Standard Exporting Package
- Specification：VH9-61S110-RC-2415300
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：6000PCS,Month
Description
Model
VH9
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Vertical
Material
42CrMo,50Mn
Output Torque
6405N.m
Tilting Moment Torque
12KN.m
Holding Torque
56KN.m
Static Axial Rating
350KN
Static Radial Rating
120KN
Dynamic Axial Rating
168KN
Dynamic Radial Rating
65KN
Gear Ratio
61:1
Efficiency
40%
Coresun - Practical Slewing Drive & Slewing Bearing Promoter.
We are committed to researching, developing and applying high quality, precision transmission equipment products,who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP,CPV solar tracking design.Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.
1. Our company's worm gear reducer (slewing drive device) adopts the transmission mode of plane secondary enveloping ring surface worm combined with slewing support, which can realize multi-tooth meshing.
2. On the premise of not affecting the performance of the whole device, we improved and optimized it, and its overall thickness became thinner and weight became lighter.
3. The rotary device at the center is a through hole for the customer to use. The original product is solid.
4. The worm material is 42CrMo, the secondary nitride treatment, the slewing bearing material is 50Mn, the teeth are quenched, and its wear resistance is good.

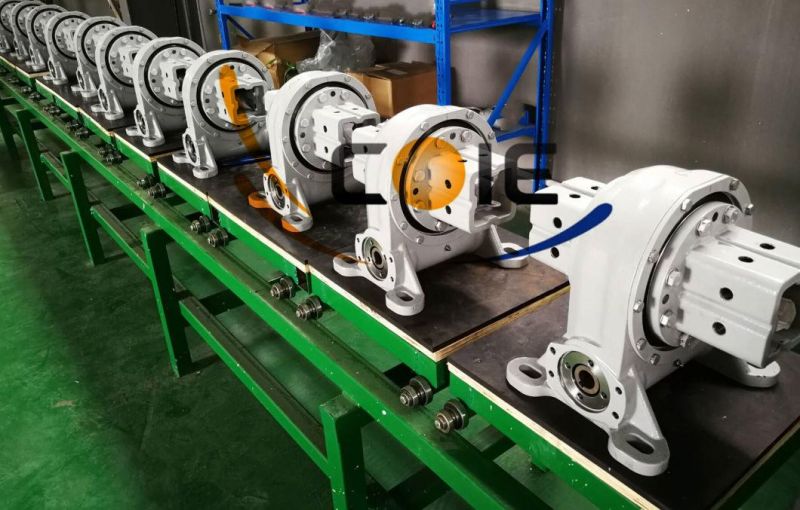

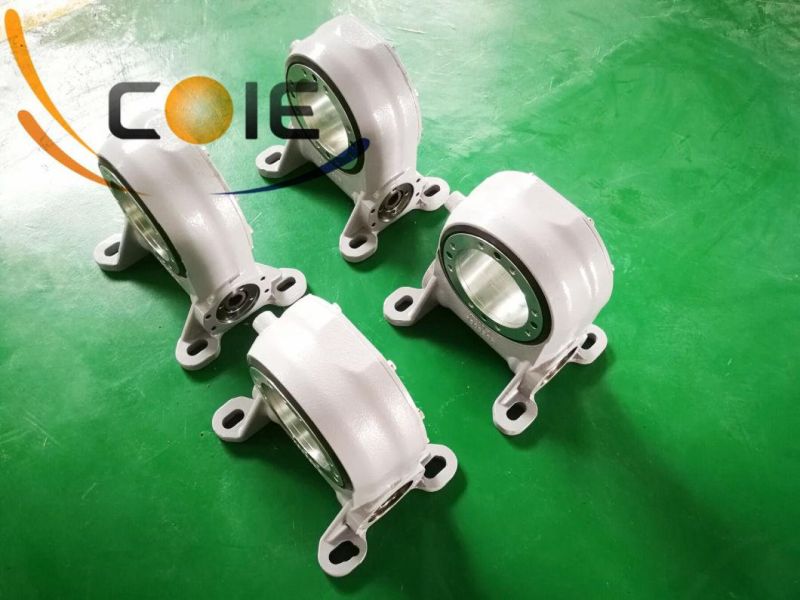

Products Photo

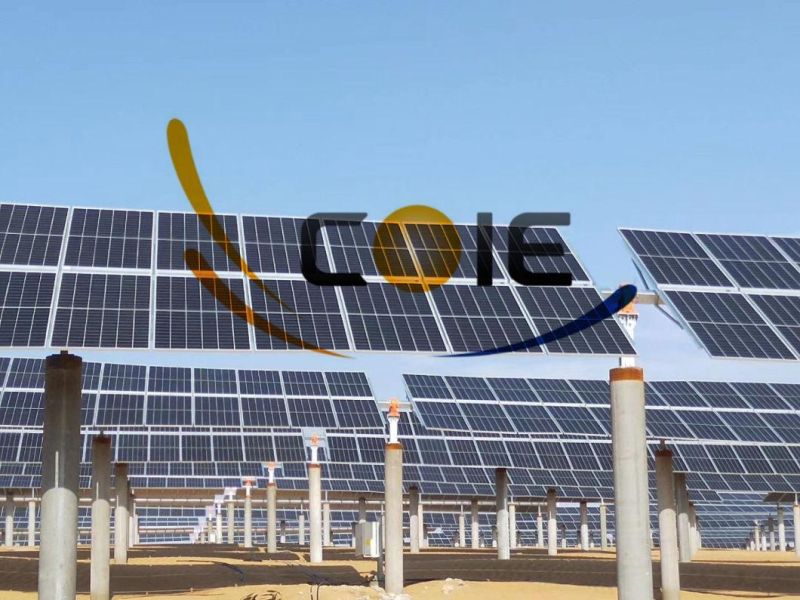

Application
Photovoltaic power generation is an important application field of rotary drive, using slewing drive VH9 as a rotating component of solar photovoltaic modules, according to the position of the sun in a day to the host of the angle and elevation of accurate adjustment, time is the solar panel for better reception angle, can make greater efficiency of power generation.

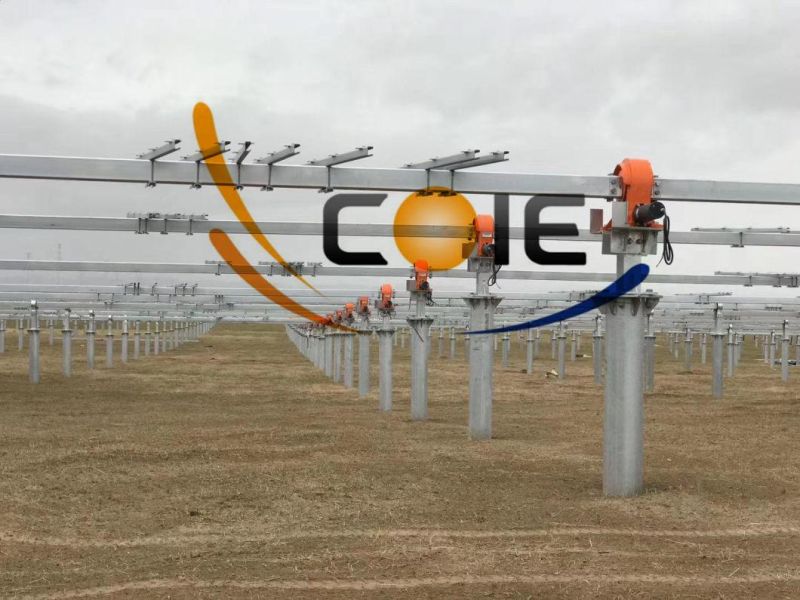

Horizontal Single Axis PV solar tracker system. The slewing drive VH9 is available for 60-150 square meter solar tracker design.
Products Certificate
Coresun Drive slewing drive gear motor have arroved by CE and ISO2001 certificate.
