• Model NO.：WS
• Bore Diameter：as Your Requirement
• Speed：as Your Requirement
• Structure：Flexible
• Material：35CrMo
• Type：Universal Coupling
• Delivery Time：Depend on Your Quantity
• Length Compensation：Customer Required
• Size：Standard Size
• Transport Package：Depend on Your Quantity
• Specification：as your requirement
• Trademark：Huading
• Origin：China
• HS Code：8483600
• Production Capacity：10000pieces,Year
• Package size per unit product：274.00cm * 250.00cm * 360.00cm
• Gross weight per unit product：52.000kg

TypeNominal torque
N·mdmaxDLL₁L₂L₃L₄Rotary inertia
kg·mWSD typeWS typeWS1
WSD111.2101622306080200.050.07WS2
WSD222.4122022326490260.090.15WS3
WSD3451425274080112320.150.22WS4
WSD4711832304692130380.320.49WS5
WSD514022403858116164480.590.91WS6
WSD628028504469138196581.031.64WS7
WSD756035606091182252702.313.38WS8
WSD81120427584122244336924.416.63Note:1.The mass and rotary inertia of the coupling is approximation.
         2.When the axis angle(β)≠0,the coupling allowable torque(T)=Tncosβ.
         3.The dimension of intermediate shaft(L1) shall be determined as required.

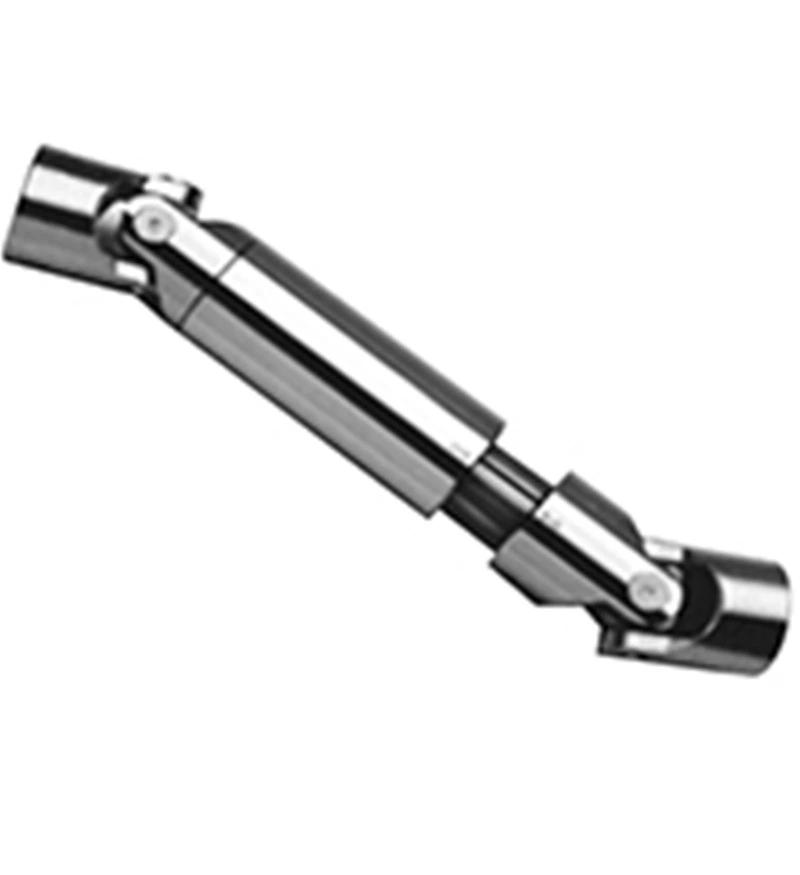

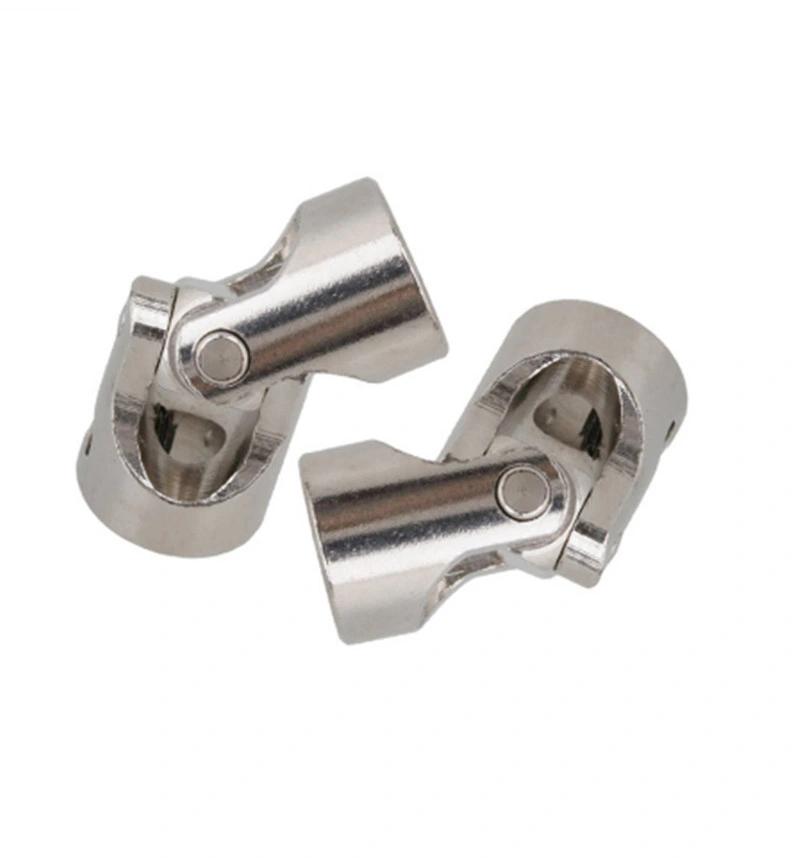

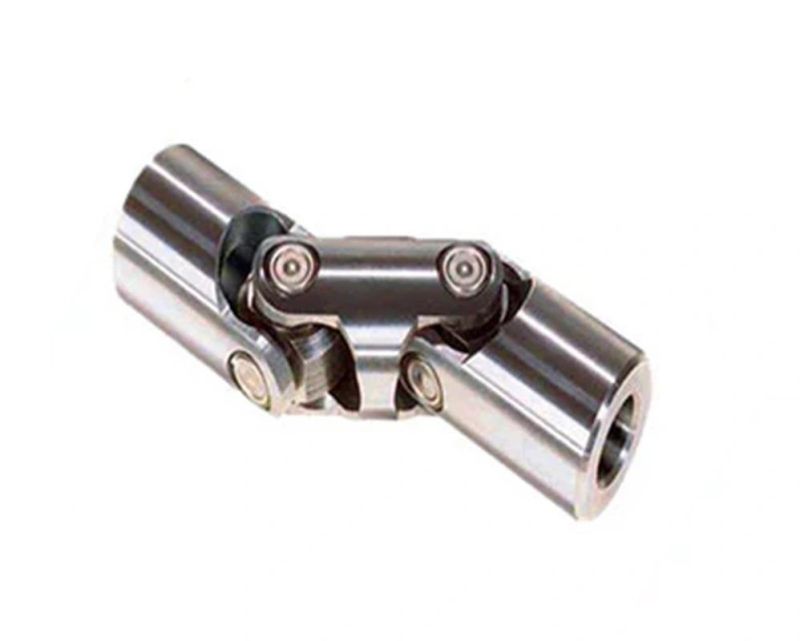

♦Product Show





♦Other Products List

Transmission Machinery  Parts Name	Model
Universal Coupling	WS,WSD,WSP
Cardan Shaft	SWC,SWP,SWZ
Tooth Coupling	CL,CLZ,GCLD,GIICL, GICL,NGCL,GGCL,GCLK
Disc Coupling	JMI,JMIJ,JMII,JMIIJ
High Flexible Coupling	LM
Chain Coupling	GL
Jaw Coupling	LT
Grid Coupling	JS

♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.

♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.

Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.

Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.

Q 9: What's your payment?
A:1) T/T. 2) L/C
