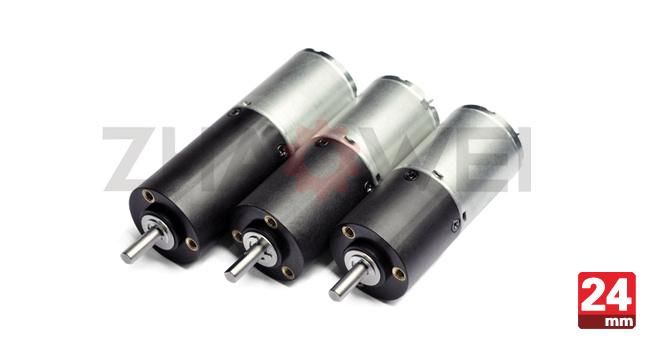

12V DC 24mm High Torque Low Rpm Small Planetary Gearbox

Shenzhen Zhaowei Machinery & Electronics Co., Ltd.

Application：Motor, Toy, Car
Function：Change Drive Torque, Speed Reduction
Layout：Cycloidal
Hardness：Hardened Tooth Surface
Installation：Torque Arm Type
Step：1-3

Base Info

Model NO.：ZWBPD024024-36
Type：Small Planetary Gearbox
Voltage：12V
Gearbox & Motor Dia：24mm & 24mm
Rated Load Current：215mA
Rated Load Speed：140rpm
No Load Current：75mA
No Load Speed：162rpm
Rated Load Torque：599 GF.Cm
Rated Torque：15000 GF.Cm
Gear Ratio：36:1
Motor Type：Geared Motor
Transport Package：Standard Packaging or According to Client′s Requir
Specification：24mm Small Planetary Gearbox
Trademark：ZHAOWEI
Origin：Shenzhen
HS Code：8483409000
Production Capacity：5, 000PCS,Day

Description

Overview Product Description

Gearbox dimensions:

ModelApplication ParametersRated Torque of Gear BoxInstant Torque of Gear BoxGear RatioGear Box Length
L1RatedAt No LoadAt Rated LoadOverall Length
LVoltageSpeedCurrentSpeedCurrentTorqueVDCrpmmArpmmAgf.cmmN.mmmgf.cmgf.cmmmZWBPD024024-1612.03657531521524824.462.515000450006431.7ZWBPD024024-9612.06175522201144112.2150004500096ZWBPD024024-14412.04175352201878184.11500045000144ZWBPD024024-21612.02775232202817276.21500045000216ZWBPD024024-25612.02380202202804275.069.5150004500025638.7ZWBPD024024-38412.01580132204206412.51500045000384ZWBPD024024-57612.0108092206309618.71500045000576ZWBPD024024-86412.078062209464928.11500045000864

Detailed Photos 12V DC 24mm High Torque Low Rpm Small Planetary Gearbox Company Profile

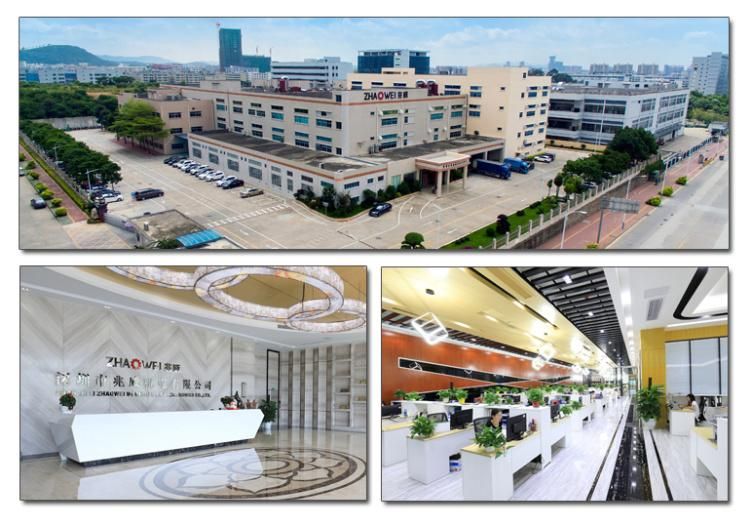

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
12V DC 24mm High Torque Low Rpm Small Planetary Gearbox

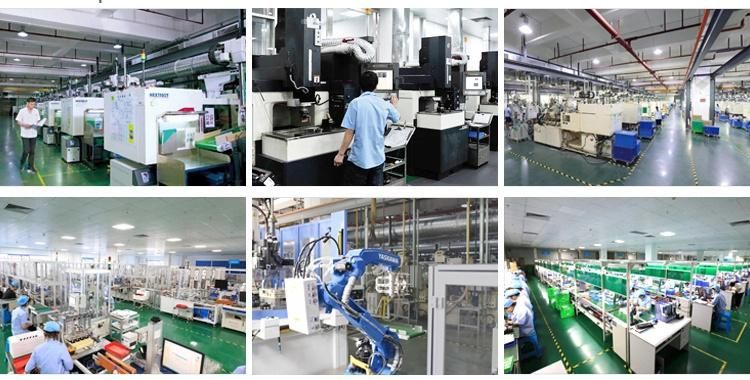

Workshop

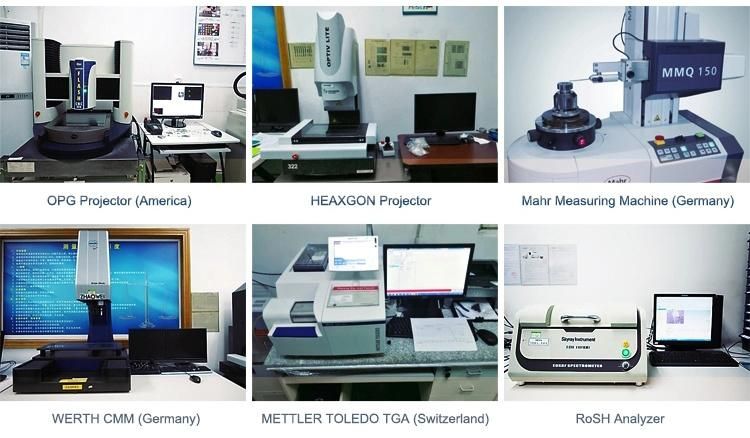

Testing Equipment

1) Competitive Advantages

Our Services
- Packaging & Shipping
  1) Packing Details
  packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
  Or according to client's requirement.
  2) Shipping Details
  samples will be shipped within 10 days;
  batch order leading time according to the actual situation.
  Certifications
  Certifications
  We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).

  and more...
  FAQ
  FAQ
  1. Can you make the gearbox with custom specifications?
  YES. We have design and development team, also a great term of engineers, each of them have
  many work years experience.
  2.Do you provide the samples?
  YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
  3.What is your MOQ?
  Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
  4. Do you have the item in stock?
  I am sorry we donot have the item in stock, All products are made with orders.
  5. Do you provide technology support?
  YES. Our company have design and development team, we can provide technology support if you
  need.
  6.How to ship to us?
  We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
  7.How to pay the money?
  We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
  8. How can I know the product is suitable for me?
  Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
  9. Can I come to your company to visit?
  YES, you can come to our company to visit at anytime, and welcome to visit our company.
  10. How do contact us ?
  Please send an inquiry
