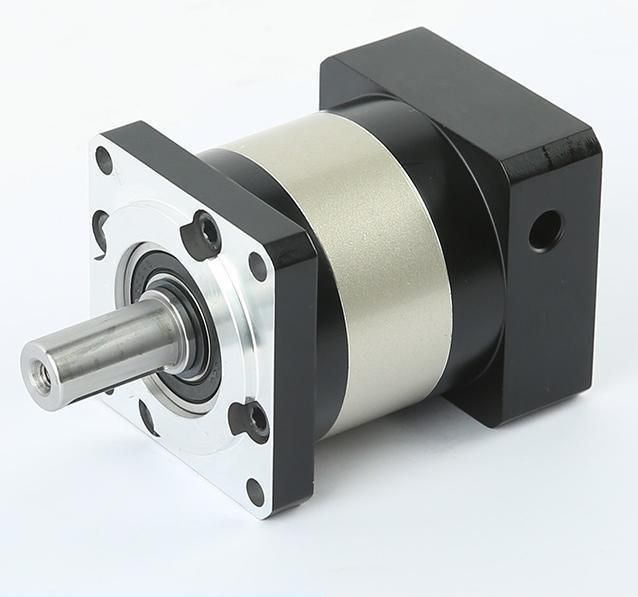

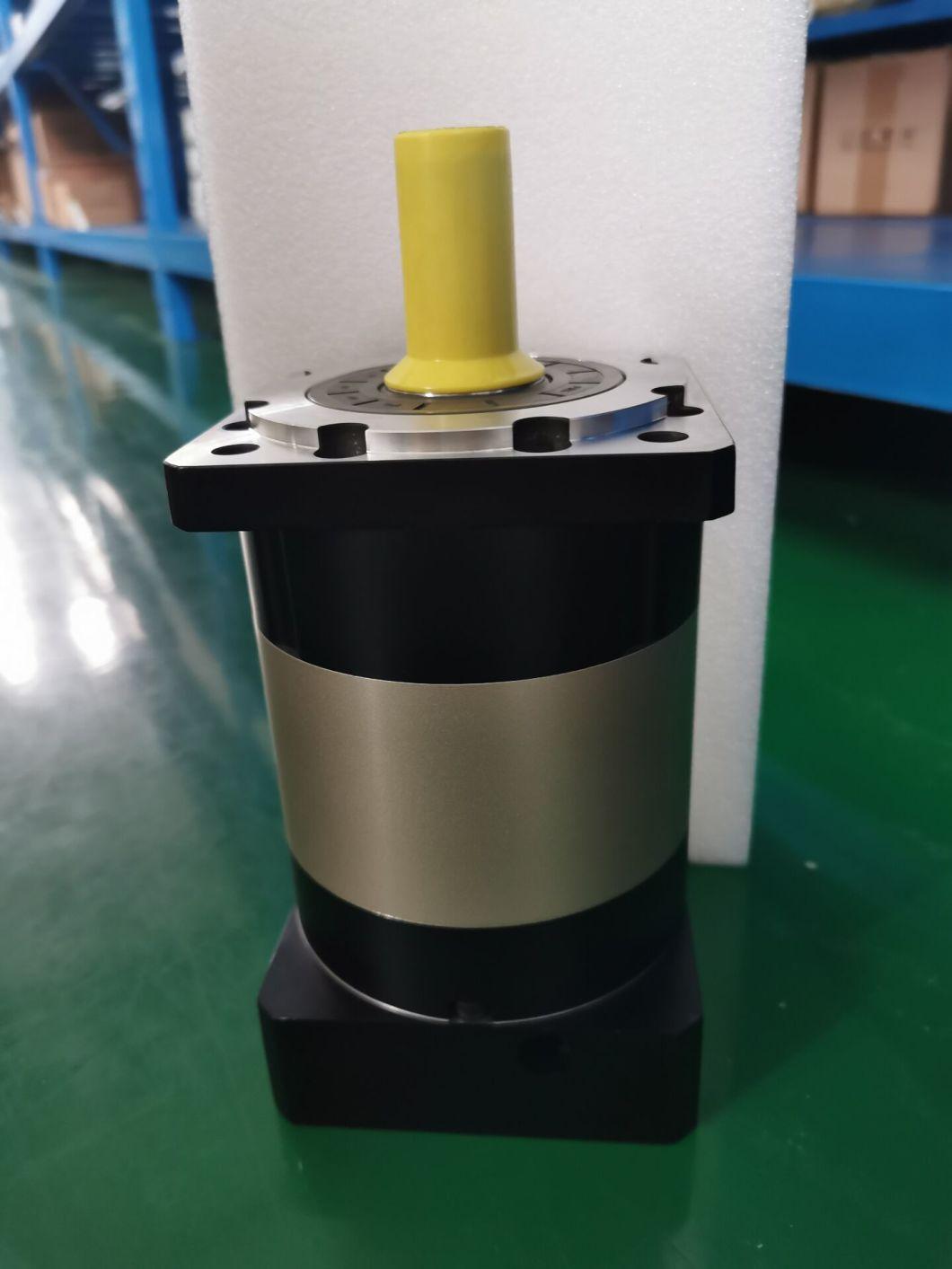

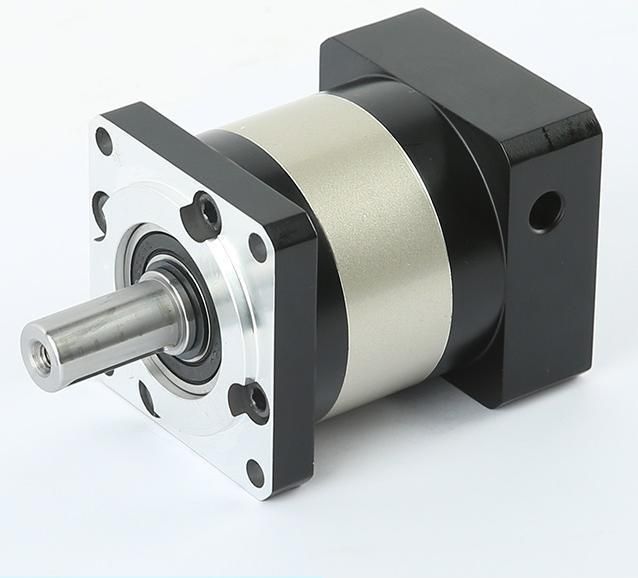

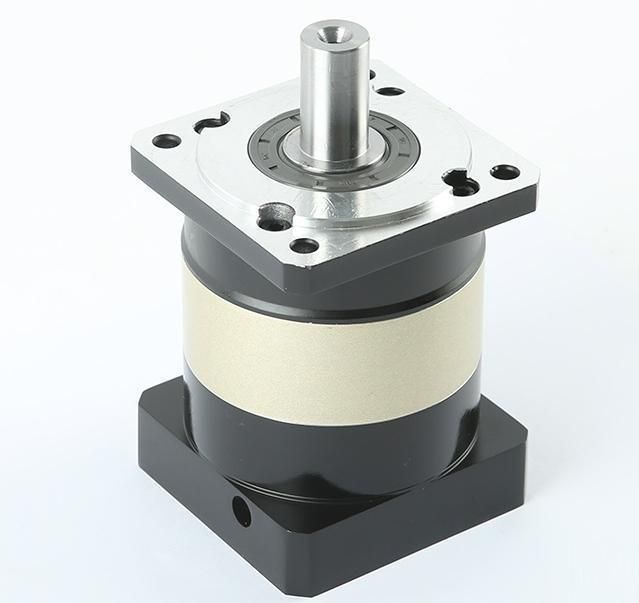

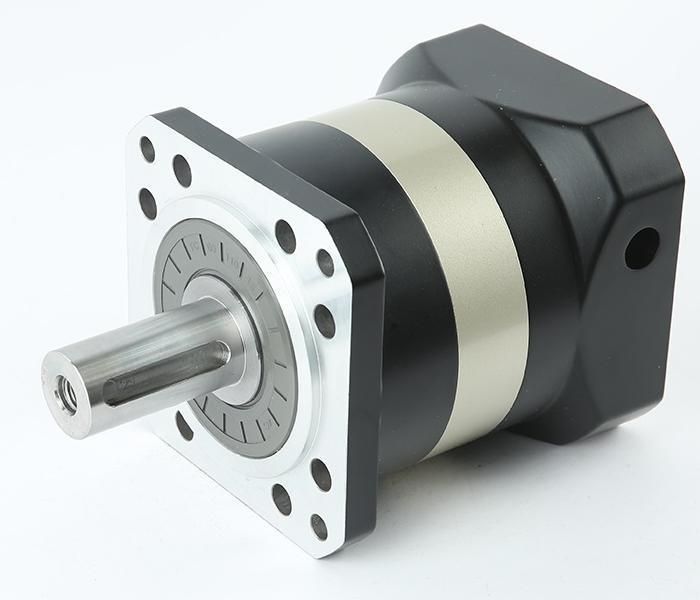

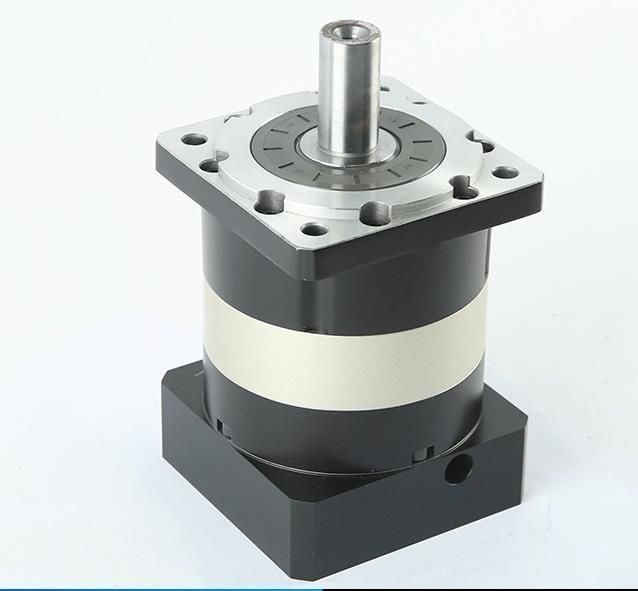

Plf Precise Planetary Gearbox for Servo Motor
Profit Transmission Equipment Yancheng Co., Ltd.- Application：Motor, Machinery
- Layout：Cycloidal
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Double-Step
- Type：Planetary Gear Box
Base Info
- Model NO.：PLF-40 PLF-60 PLF-90 PLF-120 PLF-160 PLF-200
- Transport Package：Wooden Cases or Cartons
- Specification：PLF-
- Trademark：SHENGHUI
- Origin：China
- HS Code：8483409000
- Production Capacity：1000000
Description
TypePLF-40 PLF-60 PLF-90 PLF-120 PLF-160 PLF-200 Ratio Stages T2N
Rated output torque
(Nm) 10 28 120 220 480 1230 3 1 15 48 150 270 590 1450 4 15 48 150 270 590 1450 5 9 39 110 215 470 1130 7 7 19 58 98 260 720 10 10 28 120 220 480 1230 9 2 15 48 150 270 590 1450 15 15 48 150 270 590 1450 20 15 48 150 270 590 1450 25 15 48 150 270 590 1450 30 15 48 150 270 590 1450 35 15 48 150 270 590 1450 40 15 48 150 270 590 1450 50 9 39 110 215 470 1130 70 7 19 58 98 260 720 100 15 48 150 270 590 1450 64 3 15 48 150 270 590 1450 80 15 48 150 270 590 1450 100 15 48 150 270 590 1450 150 15 48 150 270 590 1450 200 15 48 150 270 590 1450 250 15 48 150 270 590 1450 350 15 48 150 270 590 1450 400 15 48 150 270 590 1450 500 9 39 110 215 470 1130 700 7 19 58 98 260 720 1000 emergency stop torque T2not=2T2N Rotational inertia
(kgm2) 0.031 0.0135 0.77 2.63 12.14 15.6 3 1 0.022 0.093 0.52 1.79 7.78 16.3 4 0.019 0.078 0.45 1.53 6.07 15.4 5 0.017 0.065 0.39 1.32 4.63 16.1 7 0.016 0.065 0.39 1.32 4.63 15.2 10 0.03 0.131 0.74 2.62 12.14 15.9 9 2 0.023 0.077 0.71 2.53 12.35 15 15 0.019 0.075 0.44 1.5 6.65 15.7 20 0.019 0.075 0.44 1.49 5.81 15.3 25 0.017 0.064 0.39 1.3 6.36 15.2 30 0.016 0.064 0.39 1.3 5.28 16.1 35 0.016 0.064 0.39 1.3 5.28 15.2 40 0.016 0.064 0.39 1.3 4.5 15.2 50 0.016 0.064 0.39 1.3 4.5 15.2 70 0.016 0.058 0.31 1.12 3.53 15.2 100 0.019 0.075 0.5 1.5 7.5 15.4 80 3 0.019 0.075 0.44 1.49 7.4 15.4 100 0.016 0.064 0.39 1.3 6.5 15.2 150 0.016 0.064 0.39 1.3 6.2 15.2 200 0.016 0.064 0.39 1.3 5.7 15.2 250 0.016 0.064 0.39 1.3 5.4 15.2 350 0.016 0.064 0.39 1.3 5.4 15.2 400 0.016 0.064 0.39 1.3 5.2 15.2 500 0.016 0.064 0.39 1.3 5.2 15.2 700 0.016 0.064 0.39 1.3 5.2 15.2 1000
backslash
(arcmin)reduced <5 <3 <3 <3 <5 <10 1 standard <10 <8 <8 <8 <10 <15 reduced <8 <5 <5 <5 <8 <15 2 standard <12 <10 <10 <10 <10 <18 reduced <10 <8 <8 <8 <10 <18 3 standard <15 <12 <12 <12 <15 <22 torsional rigidity
(Nm/arcmin) 0.7 1.8 4.4 9.2 26.7 66.7 noise dB(A) 55 58 60 65 70 75 Max.input speed 10000 8000 6000 6000 5000 3500 1-min Rated input speed 4500 4000 4000 3500 2000 1500 1-min Max.Radialforce(N) 185 265 400 1240 3700 6700 Stages Max.Axialforce(N) 150 200 420 1000 3500 3800 Full-load efficiency(%) 96 1 94 2 90 3 service life (H) 20000 Weight (Kg) 0.5 1 3 6.2 19 42 1 0.8 1.5 4.2 8 24 50 2 1.1 1.8 4.8 9.8 29 58 3
Rated output torque
(Nm)
(kgm2)
backslash
(arcmin)
(Nm/arcmin)
